Description
Features

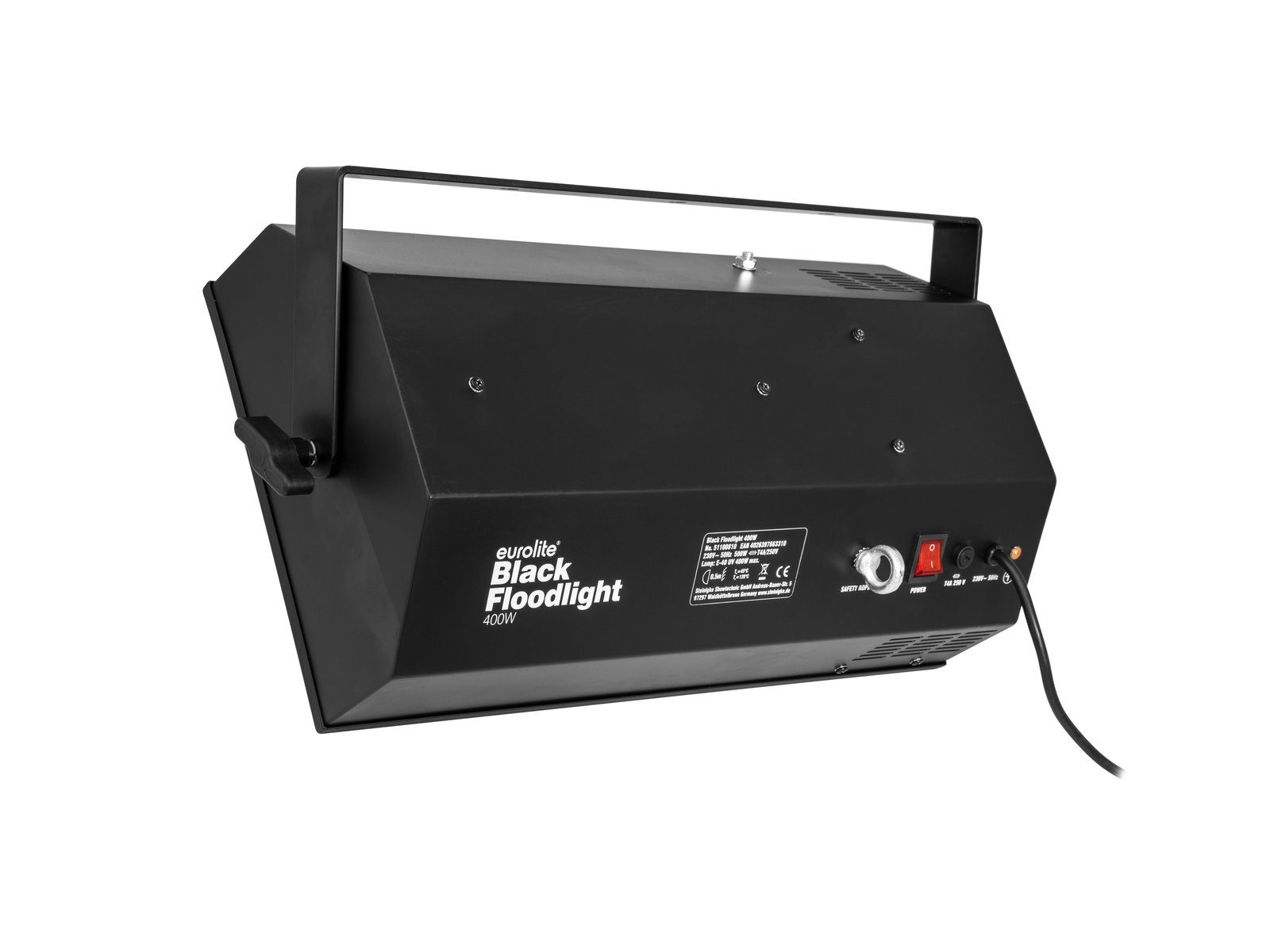

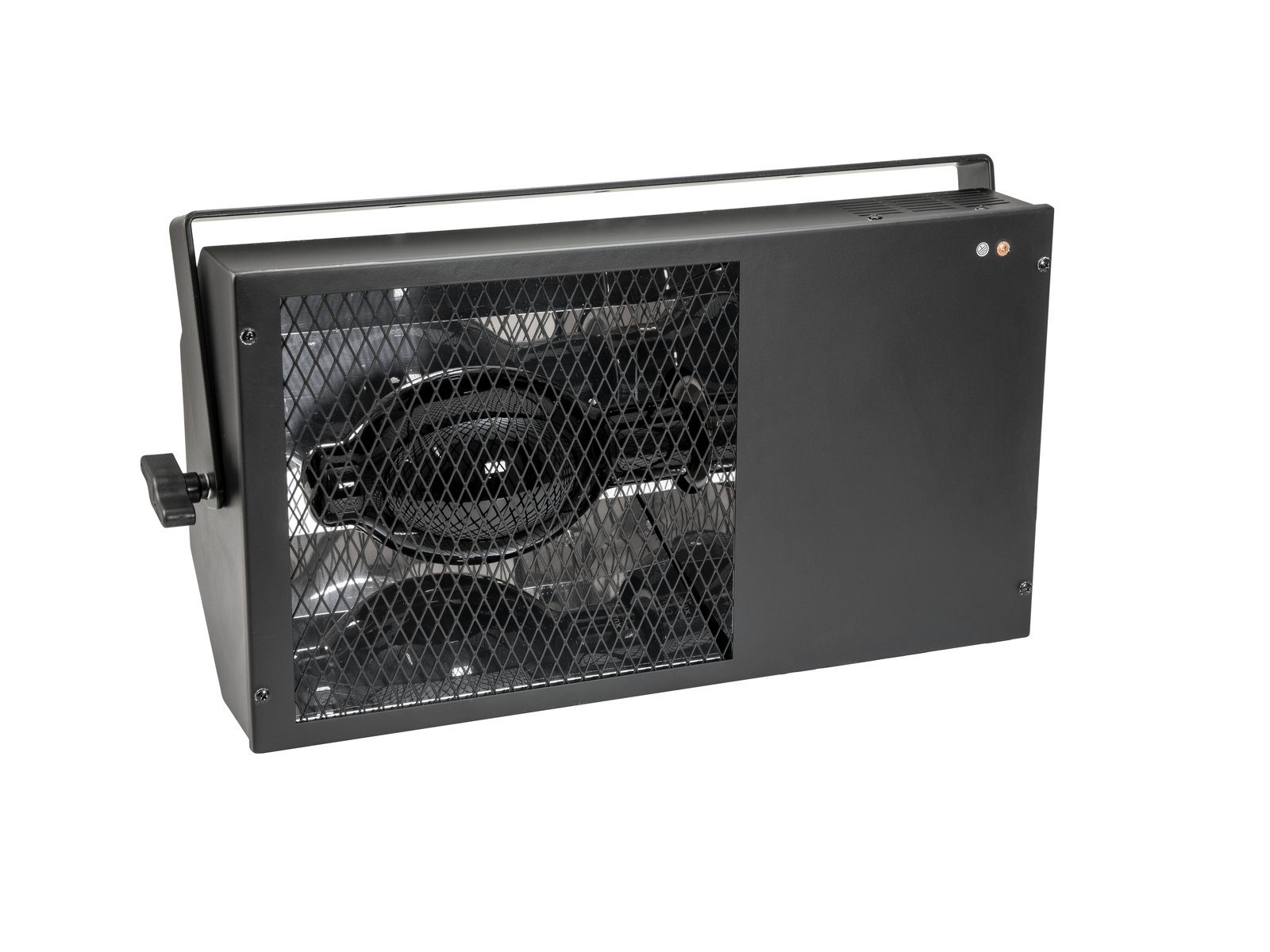

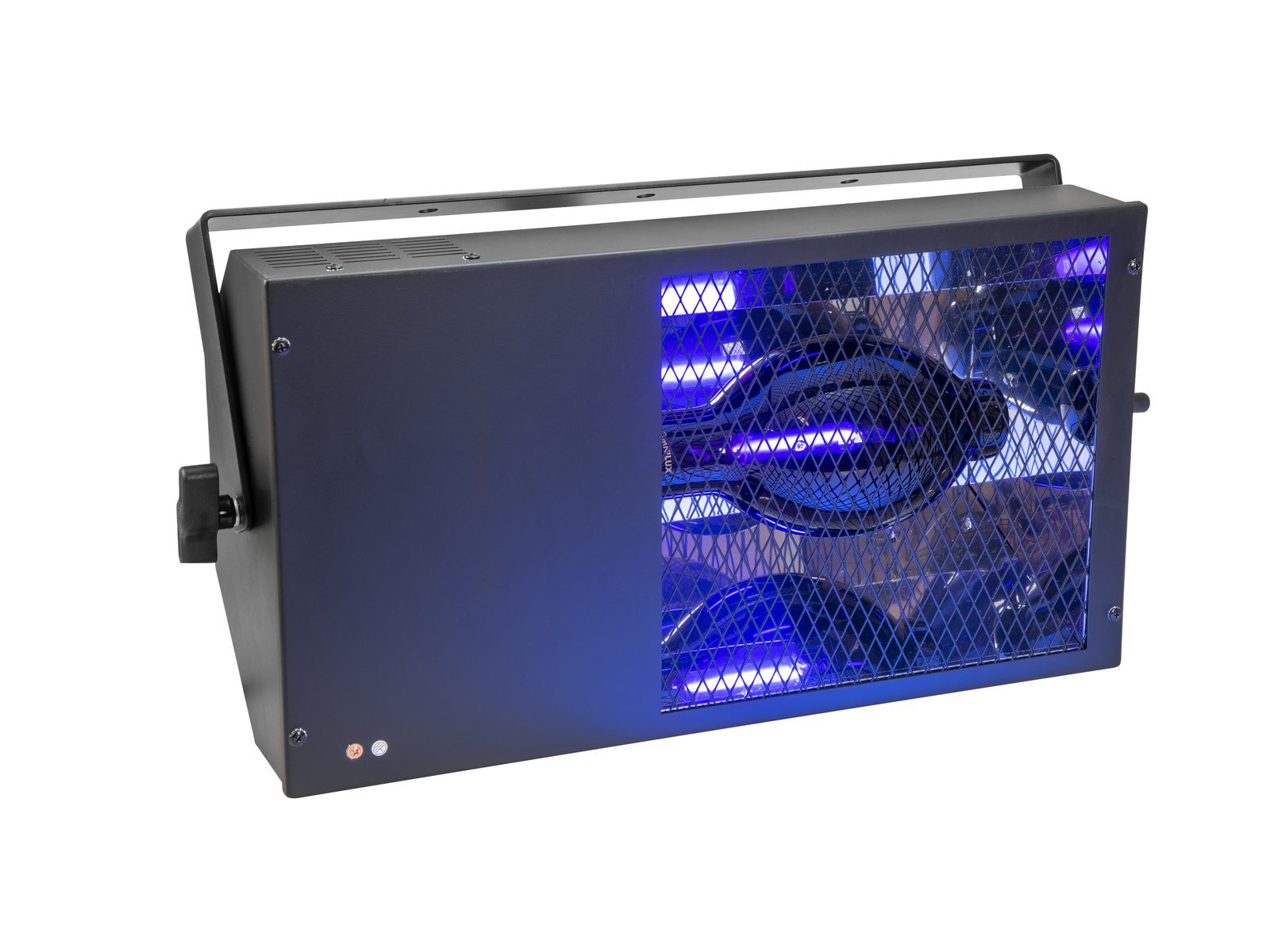

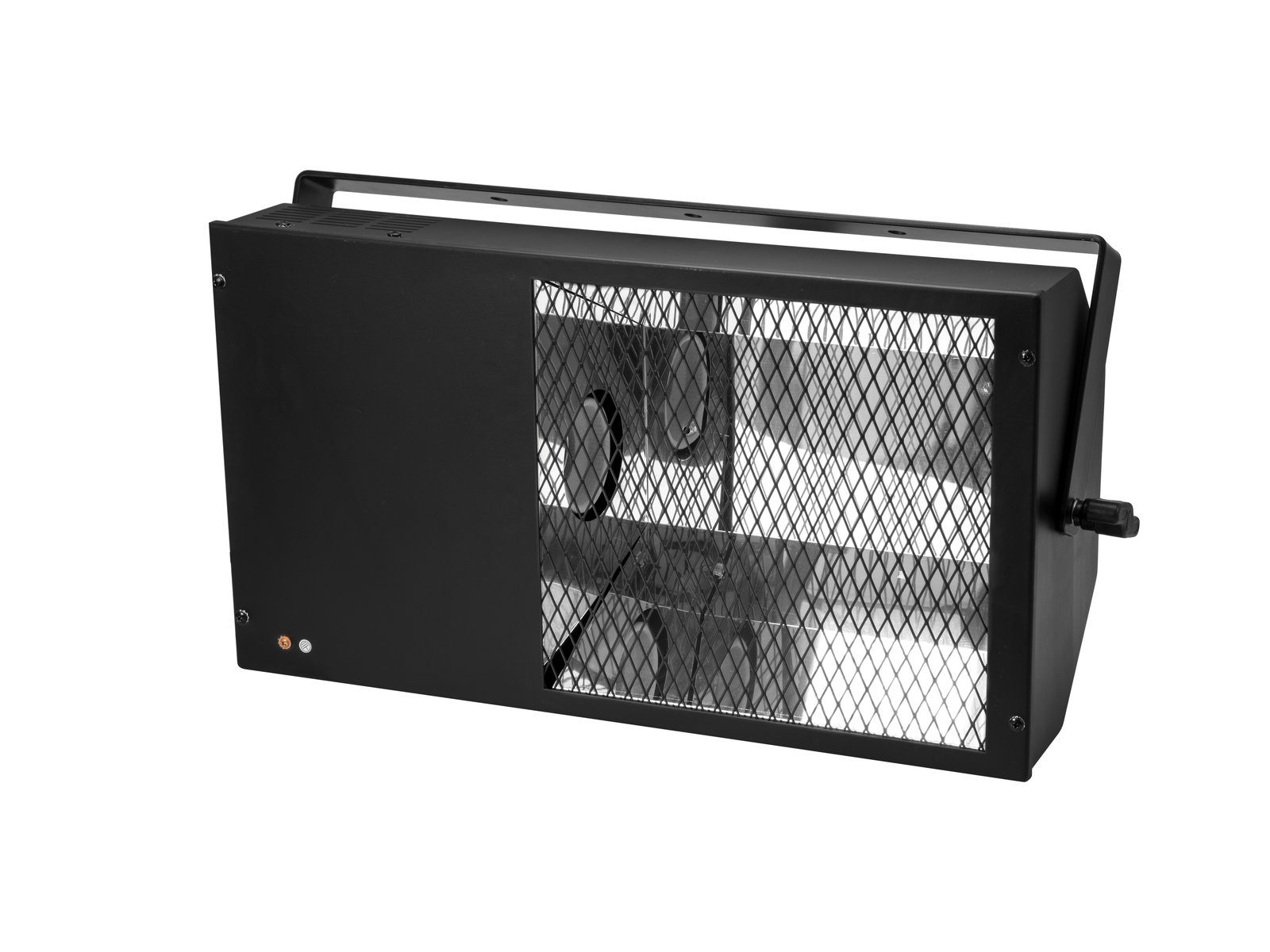

Black light housing with wide beam for E40 /400 W UV lamp
- Compact UV spot in a rugged metal housing
- The device is cooled by passive convection cooling

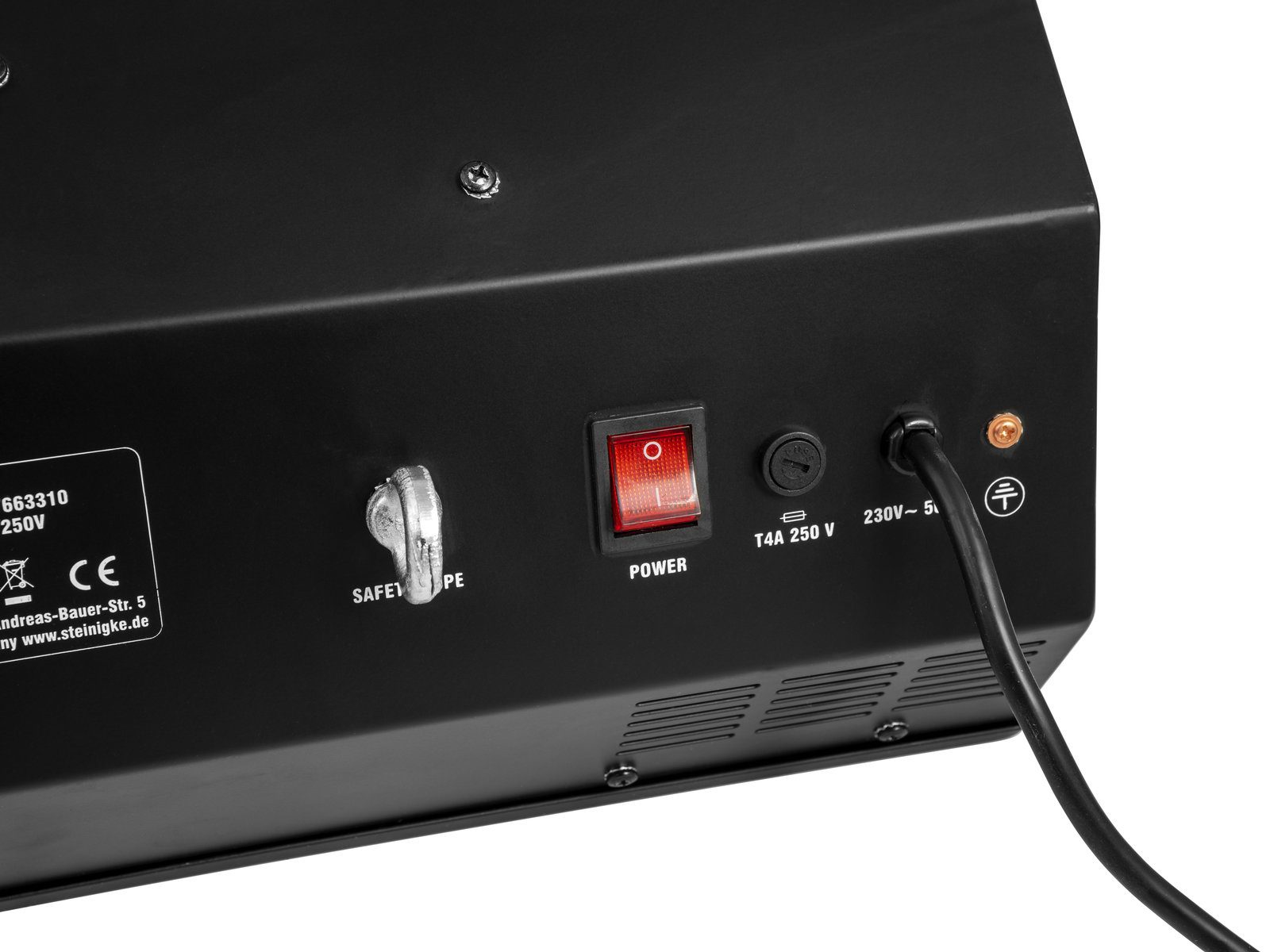

- Control via on/off switch on device
- With a beam angle of 80°
- With mounting bracket
- For application areas such as: Party room; clubs/dancing school; restaurants, bars and hotels; stage
Package contents
- 1 x spotlight, 1 x user manual, 1 x mounting bracket
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | 400 W E40 |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05SS-F |
| Cable length: | Approx. 0,8 m |
| Fuse: | 5 x 20 mm, T 4 A fuse replaceable |
| Base: | E40 |
| Lamp type: | Mercury lamp; high pressure lamp |
| Cooling: | Passive convection cooling |
| Control: | On/off switch on device |
| Beam angle: | 80° |
| Beam angle (1/2 peak): | 80° |
| Burning position: | S30 (vertikal ±30°) |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Width: 30,5 cm Depth: 15,5 cm Height: 58 cm |
| Weight: | 9,05 kg |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø10mm |
| Material: | Metal, 5 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397663310 | 9,75 kg | 64cm x 36cm x 24cm |
