Description
Features
Console for 12 lighting effect units with up to 20 DMX channels, 2 jog wheels
- DMX controller for lighting effect units such as moving heads, scanners and LED spot lights
- 12 fixtures with up to 20 channels each can be controlled
- 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
- USB port for storing program data
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled, each with up to 10 channels
- 8 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Fog machine control possible
- Supports standard MIDI
- Programmable 6 scenes/chases each with 240 cues
- Can transmit up to 240 DMX channels
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; fog machine via 5-pin DIN (F) mounting version; RDM
- Firmware can be updated
- (19″) 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Party room; small rental
- Silent operation
Package contents
- 1 x controller, 1 x external mains adapter, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC |
| Power consumption: | 2,70 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 6 scenes/chases each with 240 cues |
| DMX channels: | Output 240 |

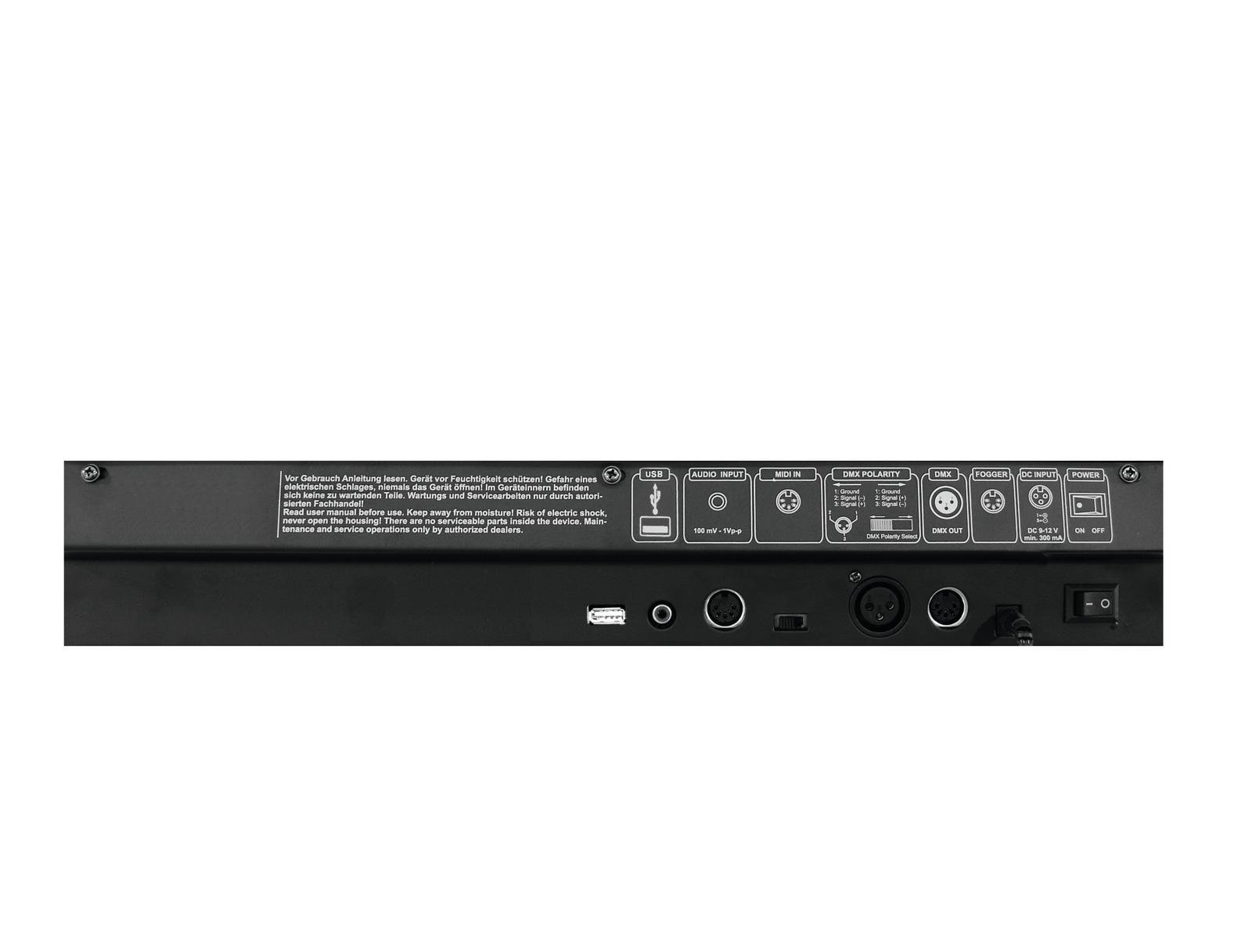

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via microphone; sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; fog machine via 5-pin DIN (F) mounting version; RDM |
| Housing color: | Black |
| Control elements: | DMX polarity selector, power switch |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Type A |
| Color: | Black |
| PC connect: | , firmware can be updated |
| Housing design: | (19″) 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48,3 cm Depth: 13,5 cm Height: 8,9 cm |
| Weight: | 2,23 kg |
| Noise classification: | Class 0 (no noise at all) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397487459 | 2,62 kg | 58cm x 18,5cm x 14,5cm |
