Description
Features

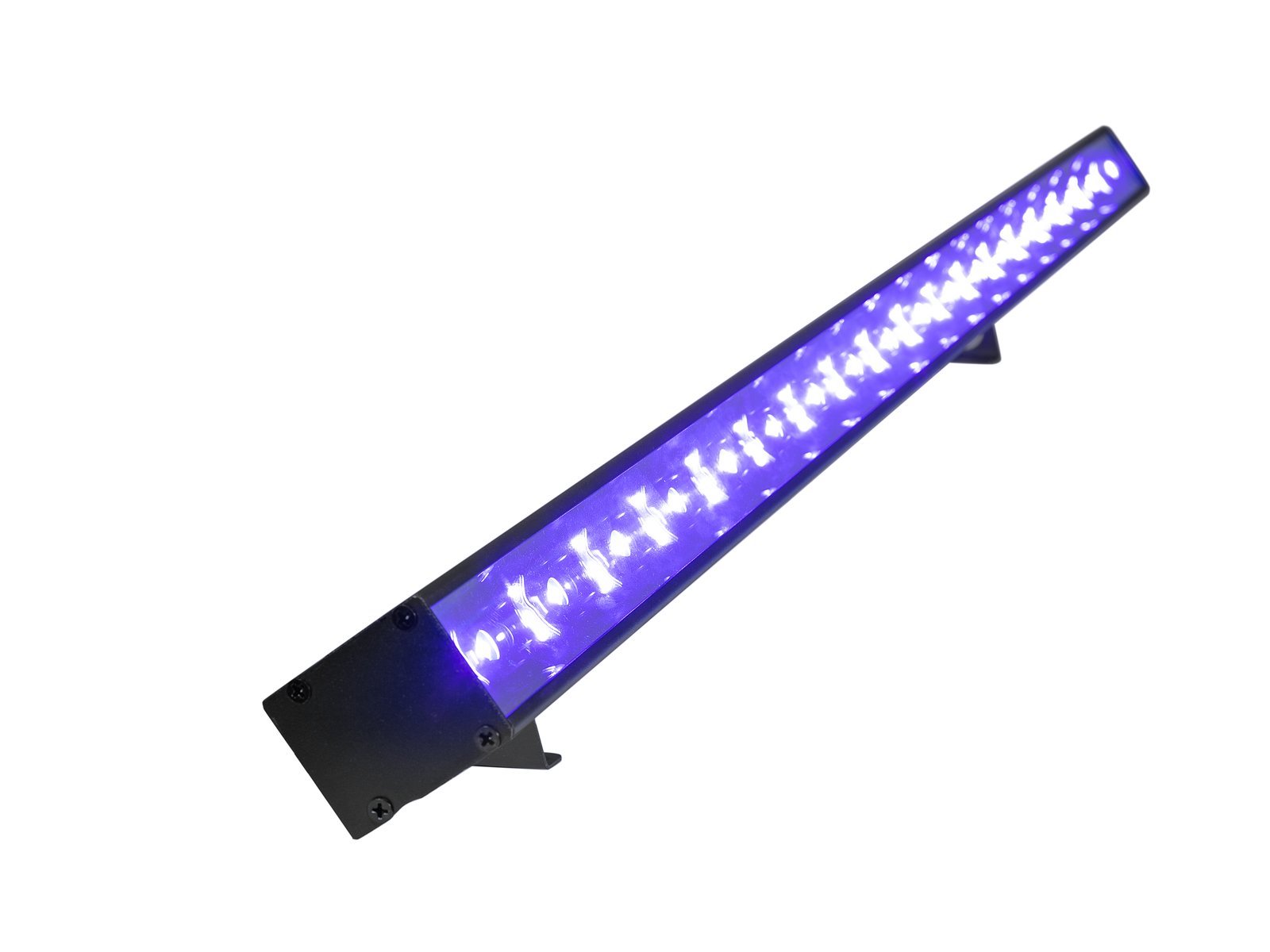

UV LED light bar with 18 x 3 W LED for stunning blacklight effects
- Perfect for decorative and illumination purposes
- Compact lightweight
- Slender housing
- 18 powerful LEDs 3 W high-power ultra violet (UV)
- UV effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 80°
- Available in various sizes
- Silent operation
- For application areas such as: Party room; restaurants, bars and hotels
- Application possibility: Standing; suspended
Package contents
- 1 x device, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,4 m |
| Lamp type: | LED lamp |
| LED type: | 18 x 3 W high-power ultra violet (UV) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 80° |
| Beam angle (1/2 peak): | 80° |
| Beam angle (1/10 peak): | 120 |
| Wavelength: | 402 nm |
| Housing color: | Black |
| Diameter mounting holes: | 2 x Ø5mm |
| Material: | Aluminum |
| Dimensions: | Width: 1 m Depth: 4,5 cm Height: 12,5 cm |
| Weight: | 1,92 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 1 x Ø7mm |
| Material: | Metal, 1,5 mm |
| Color: | Black |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397705744 | 2,20 kg | 103cm x 14,5cm x 7cm |
