Description
Features

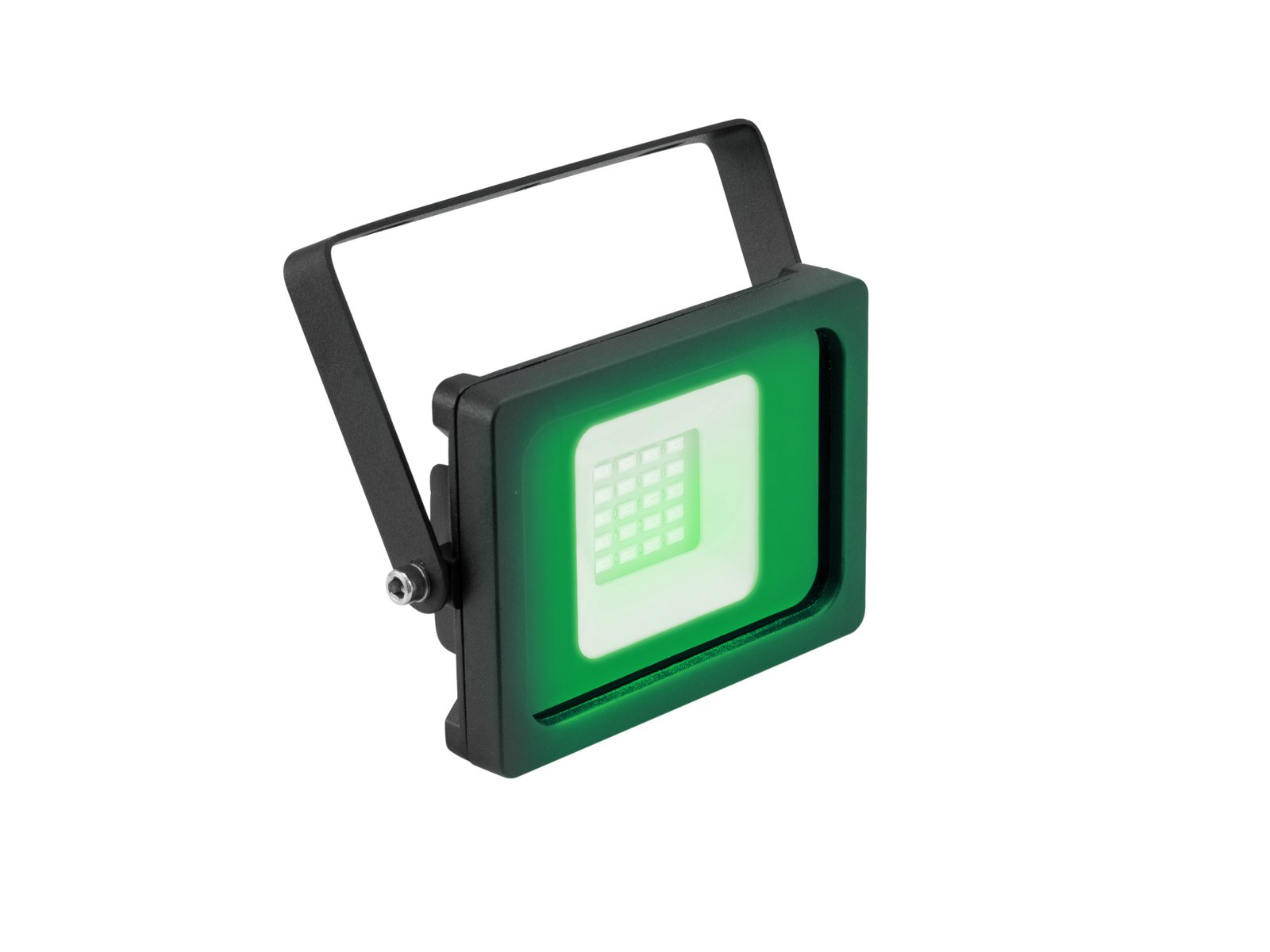

Flat IP65 outdoor floodlight with 20 SMD-LEDs green (G)
- 20 powerful LEDs SMD 5730 green (G)
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
- Suitable for outdoor use IP65
- Various versions available
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 20 x SMD 5730 green (G) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 80° |
| Beam angle (1/10 peak): | 120° |
| Color of light: | Green |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 13,4 cm Depth: 3,0 cm Height: 12,2 cm |
| Weight: | 430 g |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Metal, 2 mm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397692877 | 0,49 kg | 18cm x 15cm x 5,5cm |
