Description
Features

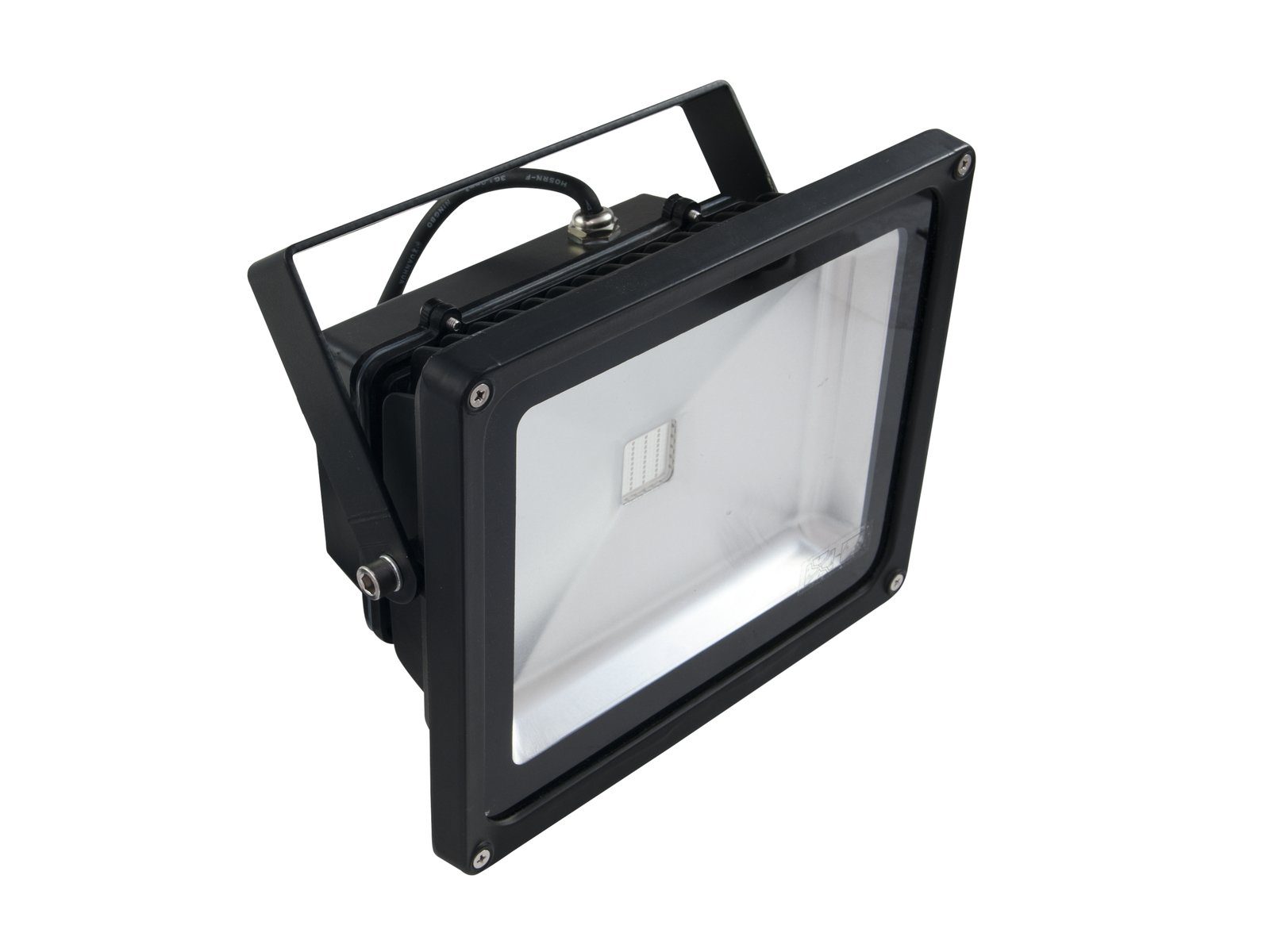

Weather-proof (IP54) UV spotlight with 30 W COB UV LED
- Suitable for larger distances
- 1 powerful LED 30 W COB (chip-on-board) ultra violet (UV)
- UV effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 120°
- With mounting bracket
- Suitable for outdoor use IP54
- Silent operation
- For application areas such as: Restaurants, bars and hotels; small rental; architecture; installation
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 34 W |
| IP classification: | IP54 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,6 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 30 W COB (chip-on-board) ultra violet (UV) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Wavelength: | Ultra violet (UV) 395 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 22,5 cm Depth: 12,5 cm Height: 19,5 cm |
| Weight: | 1,34 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø12mm; 2 x Ø10mm |
| Material: | Metal, 2 mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397506396 | 1,45 kg | 23,5cm x 20cm x 17cm |
