Description
Features

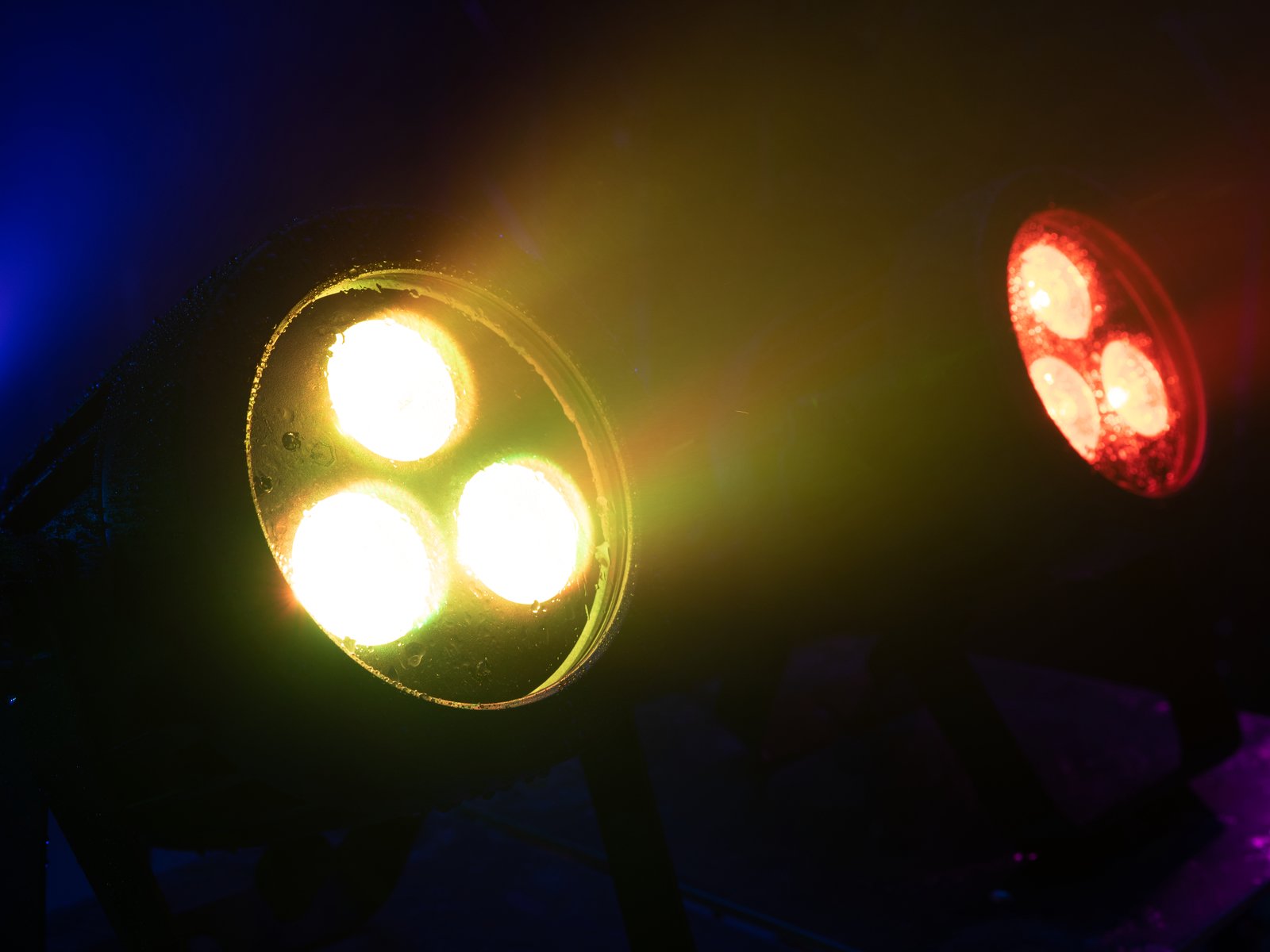

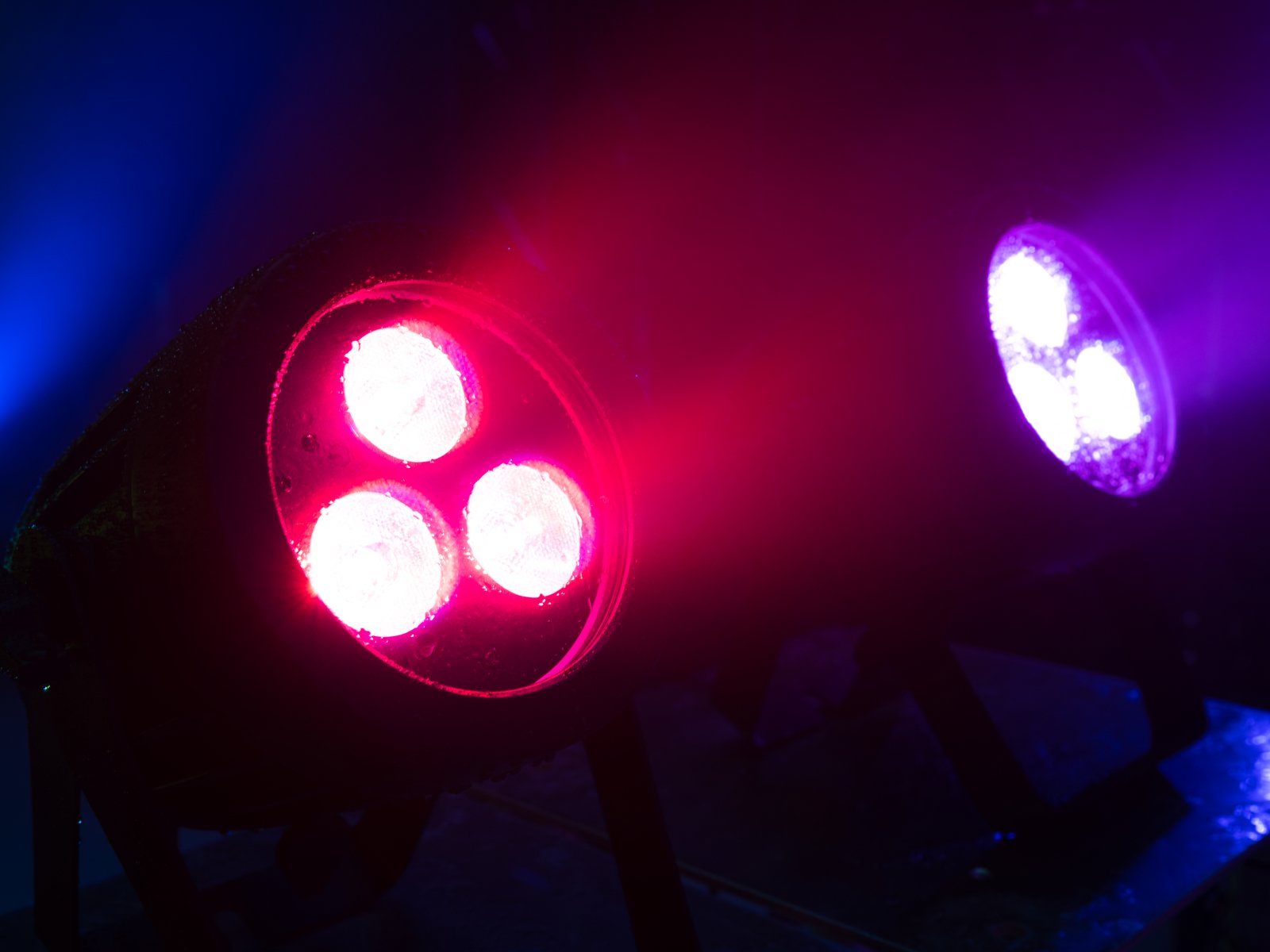

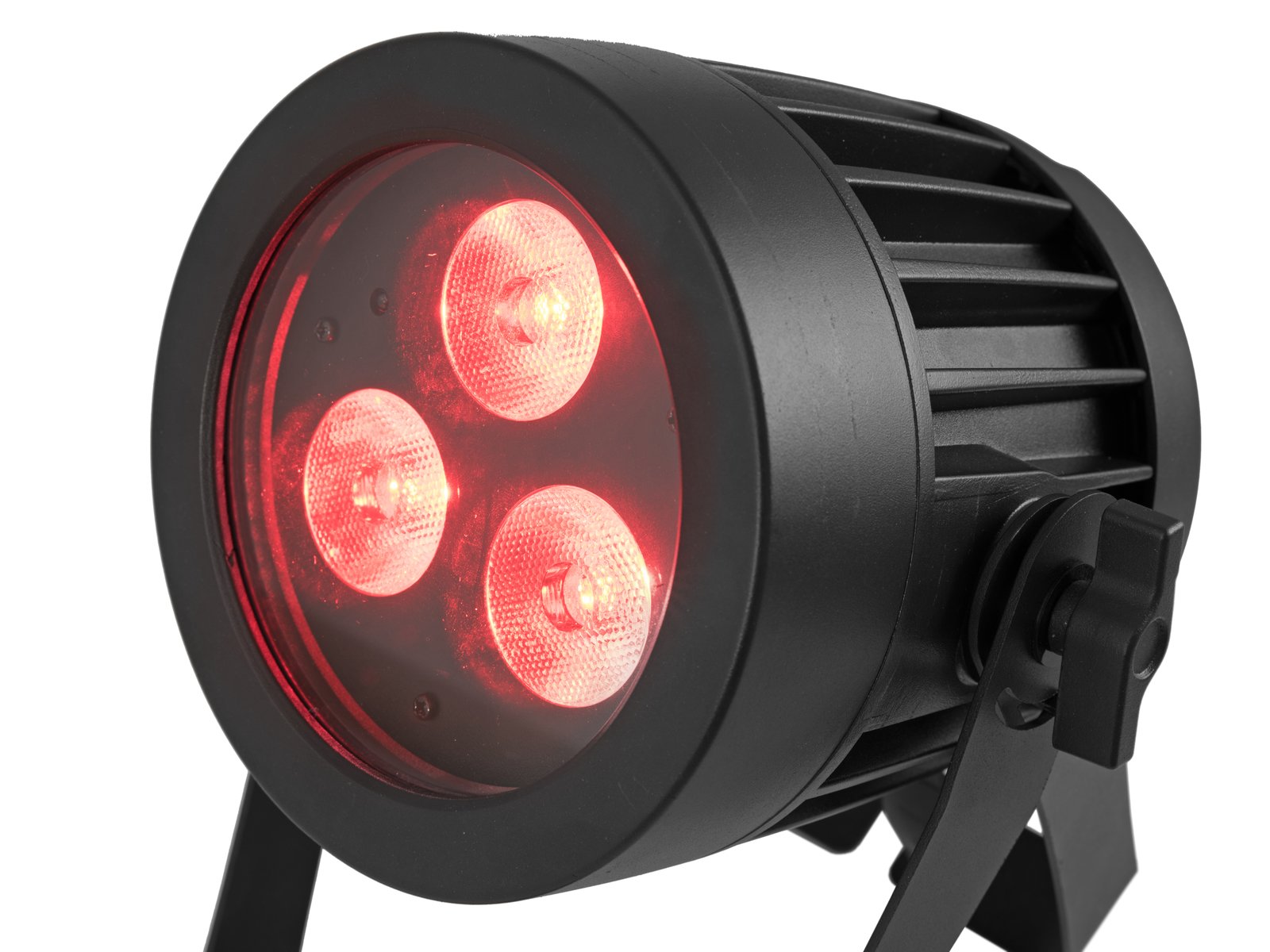

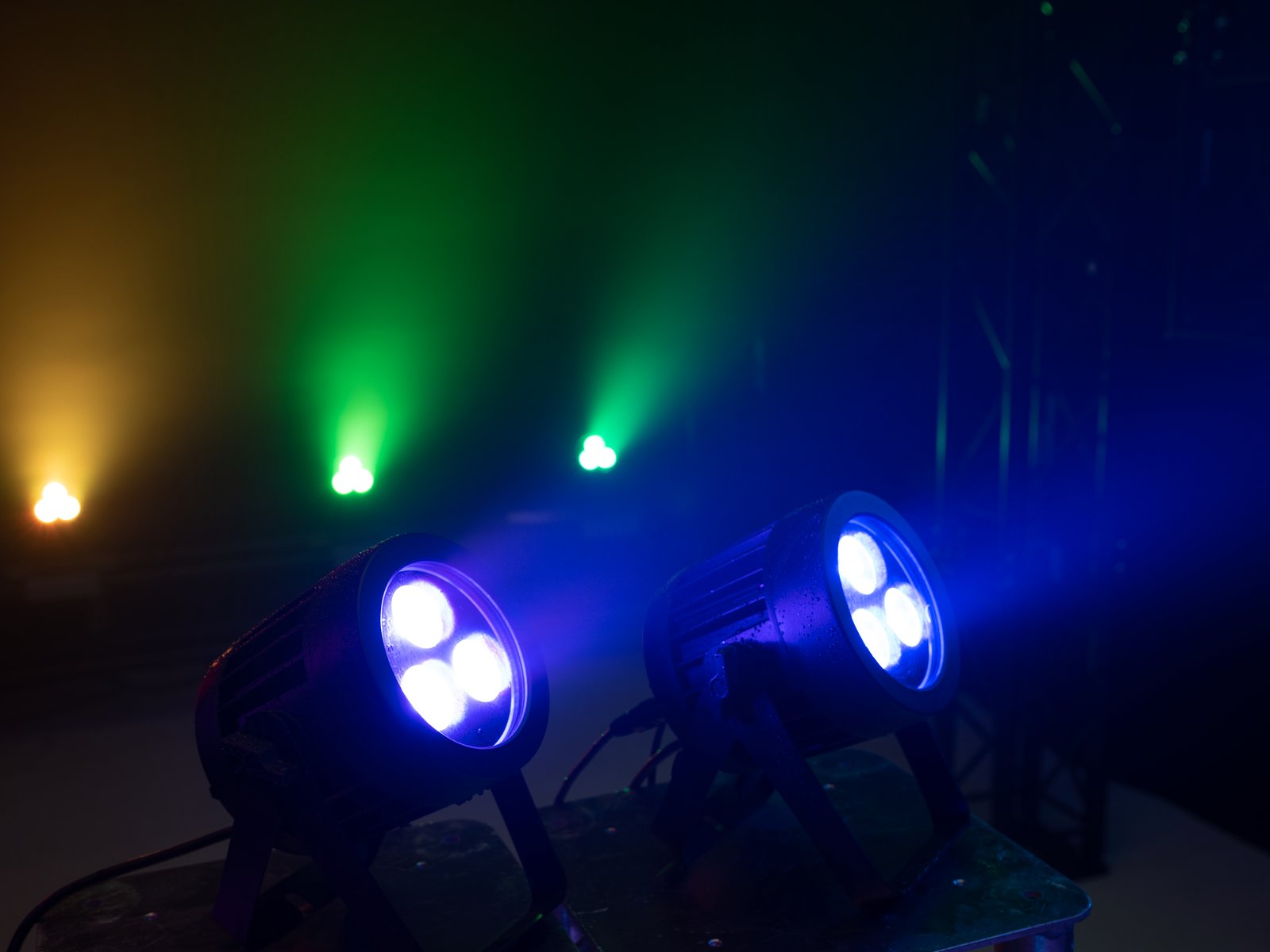

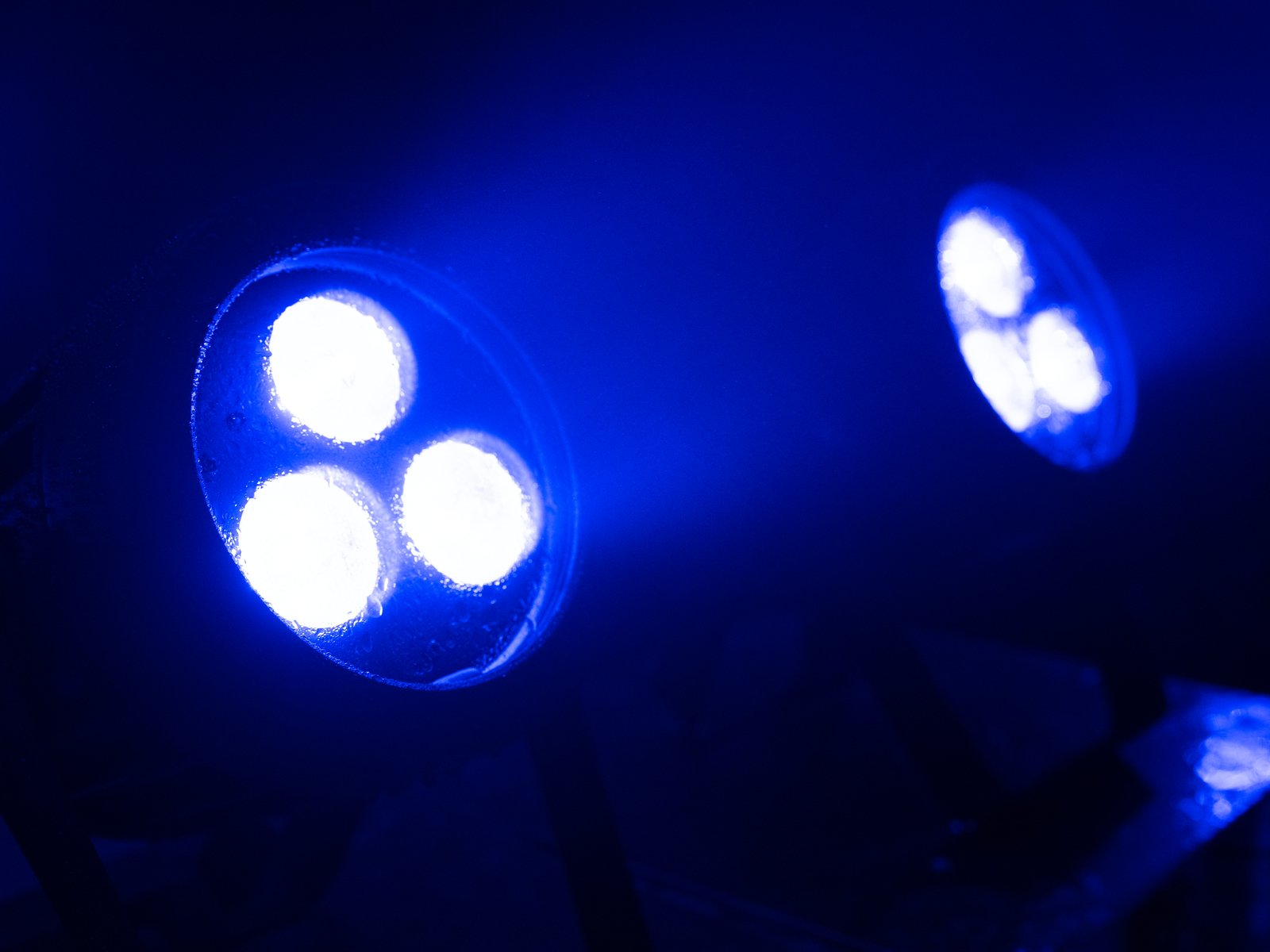

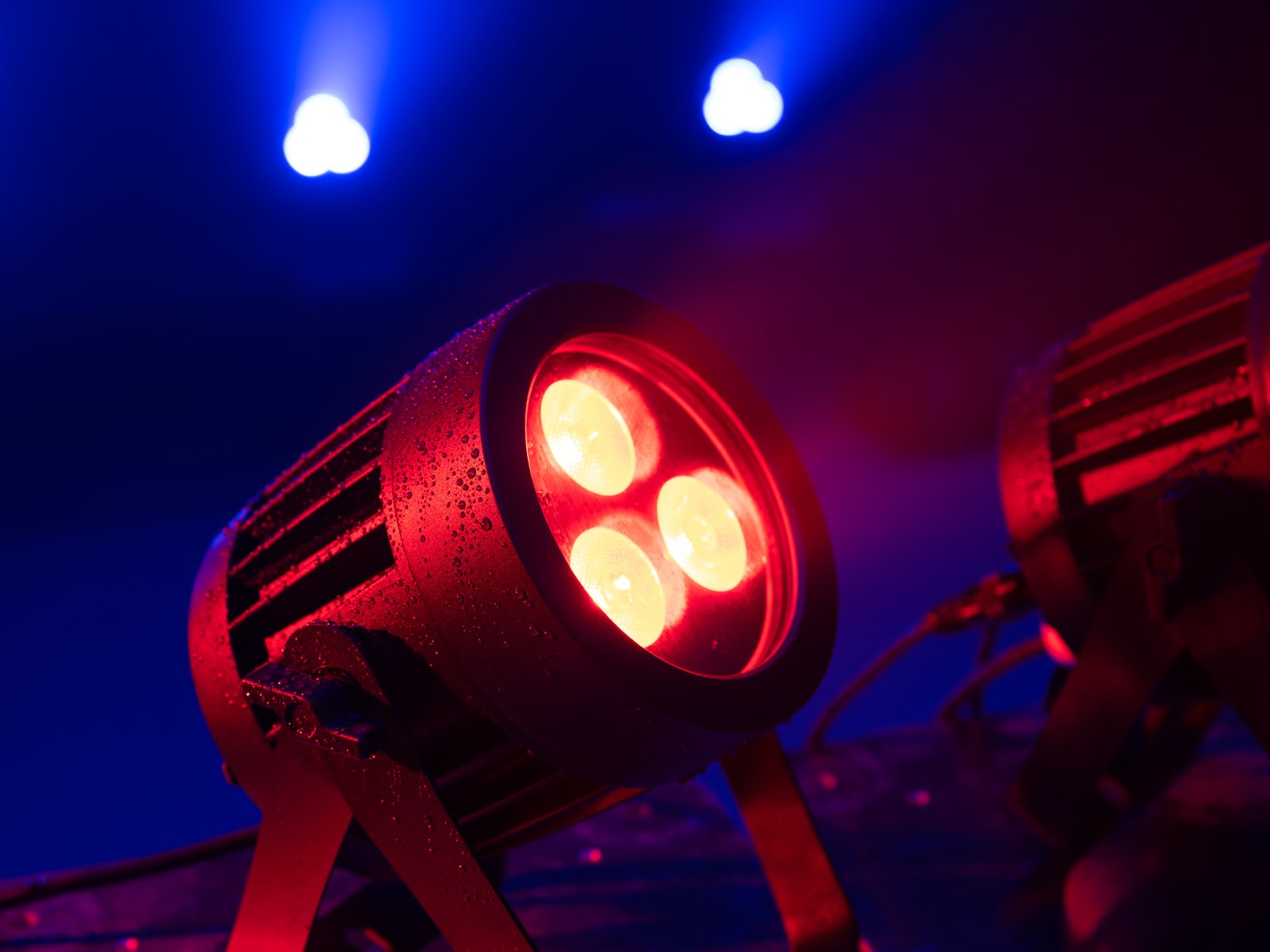

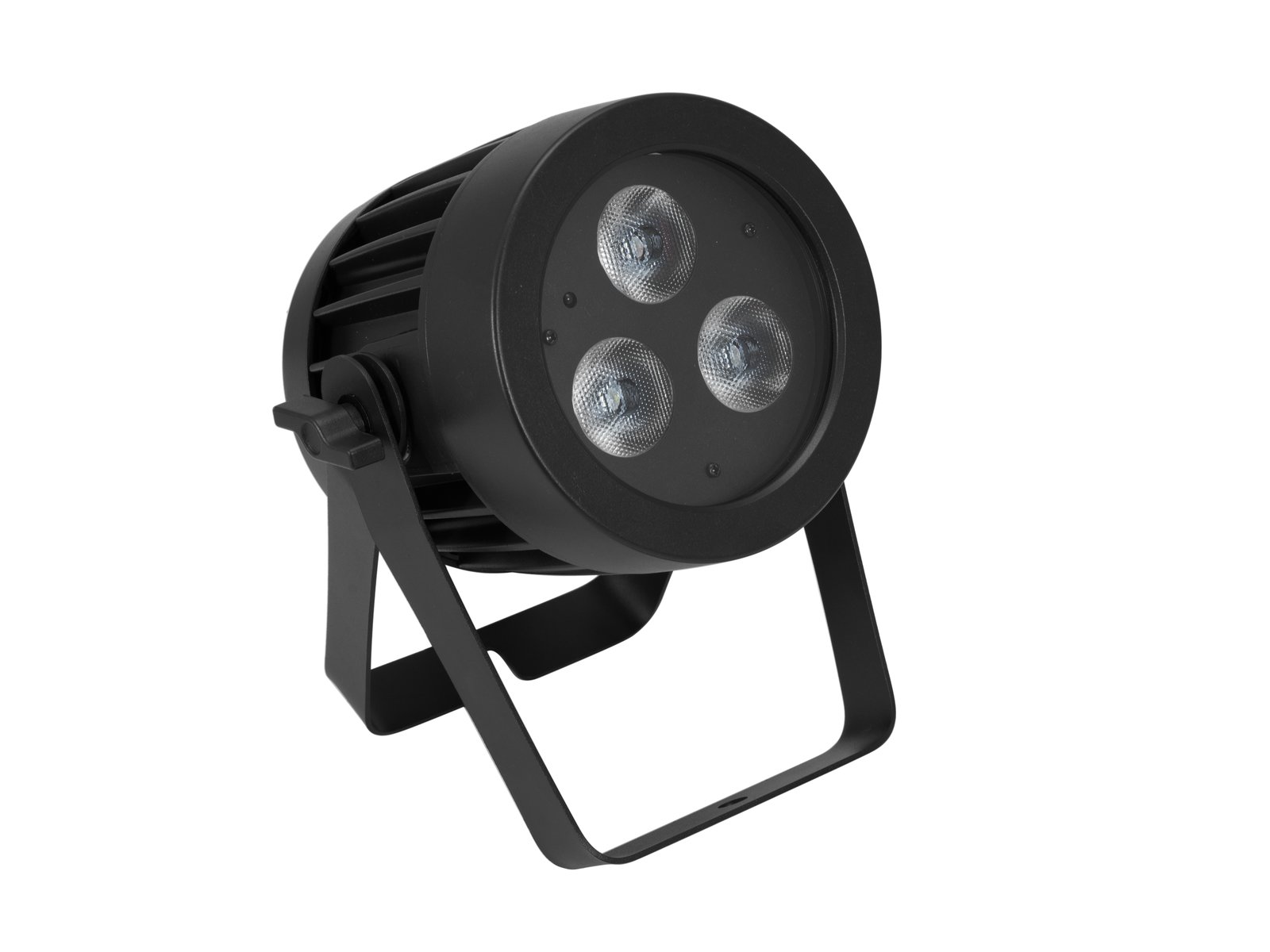

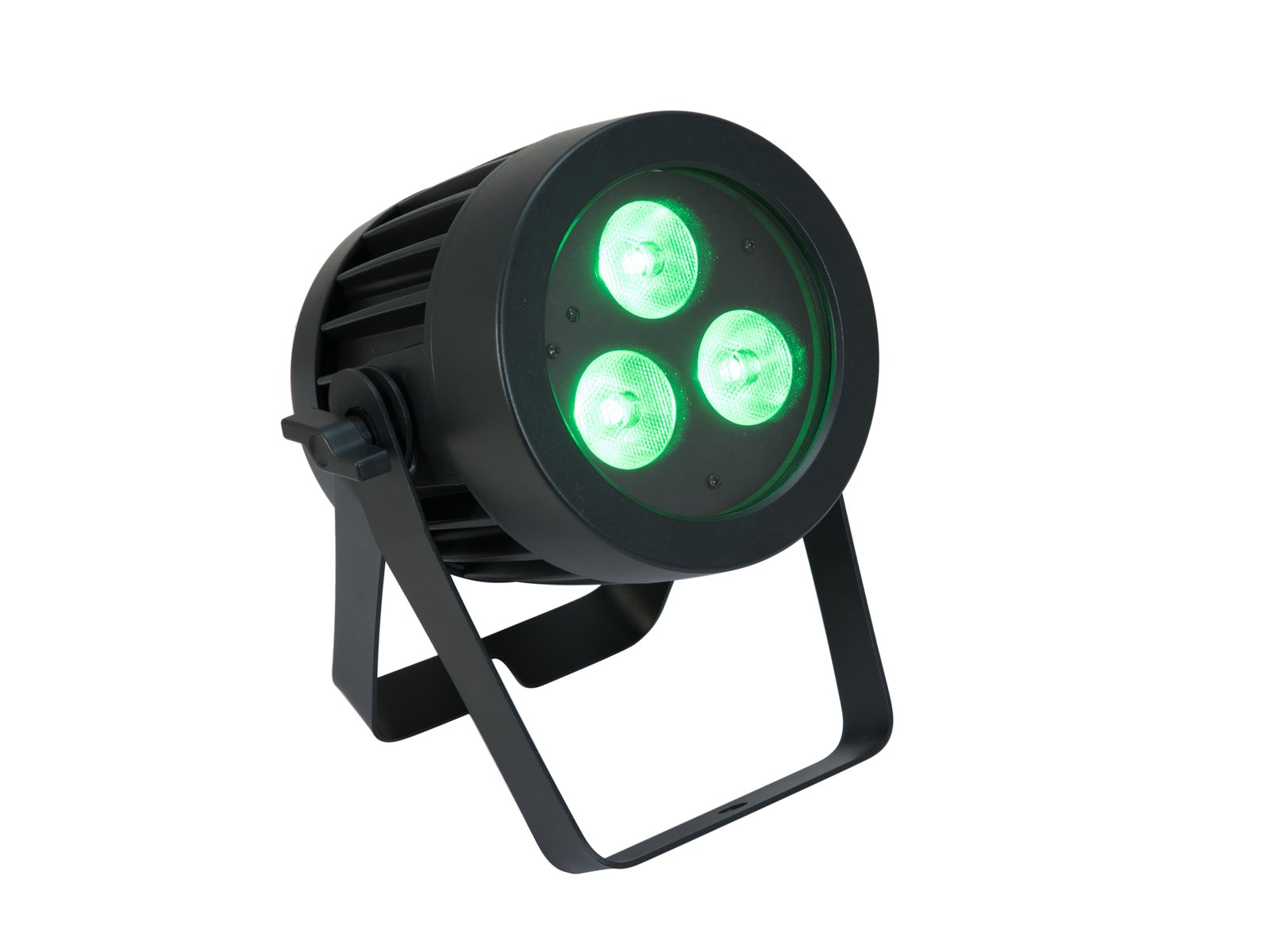

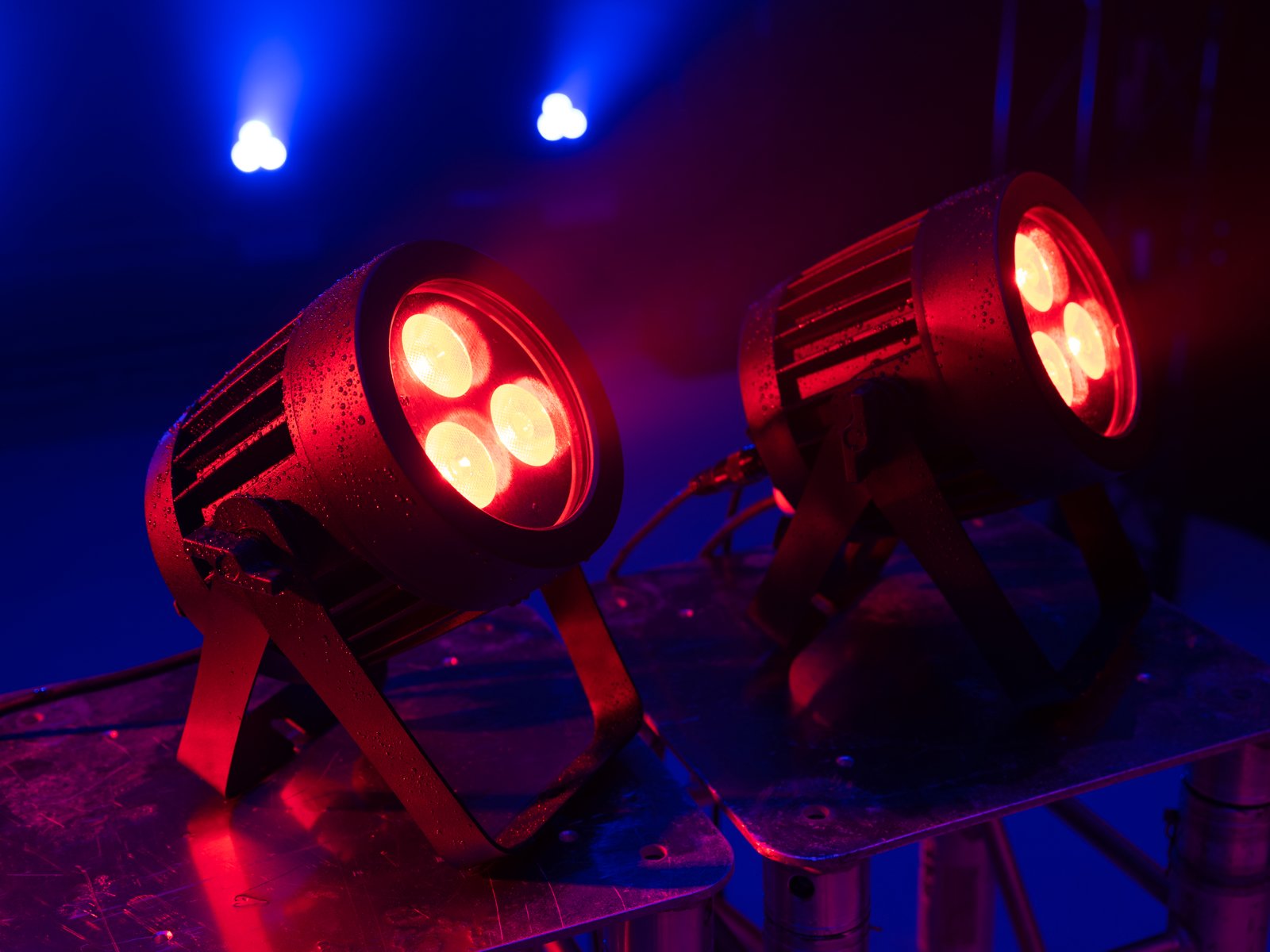

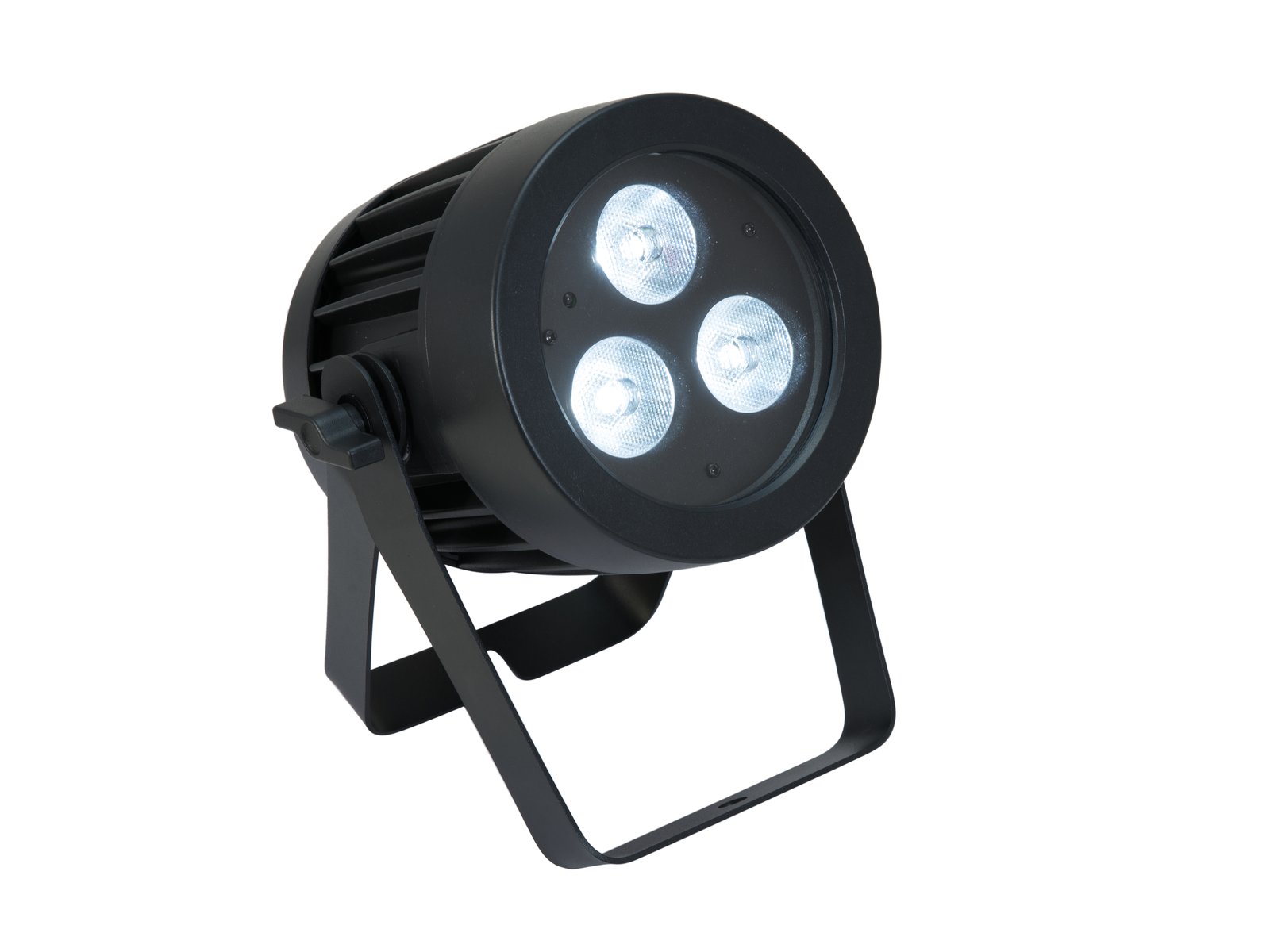

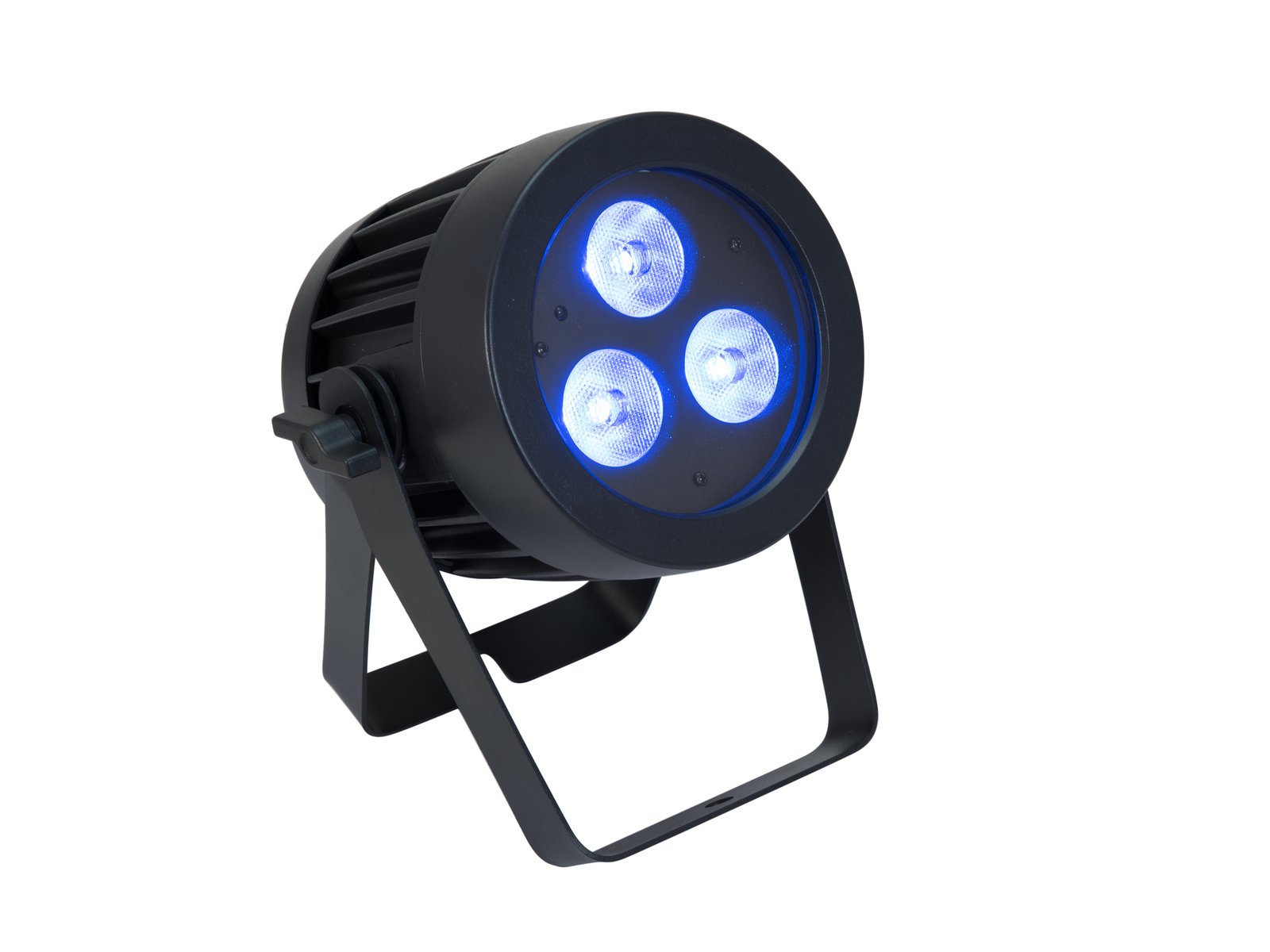

Weather-proof (IP65) spotlight with 3 x 8 W LED and 4in1 QCL RGBW color mixing
- 3 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- Strobe effect
- Direct color selection for 25 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; IR remote control; DMX
- Preprogrammed in EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- With a beam angle of 15°

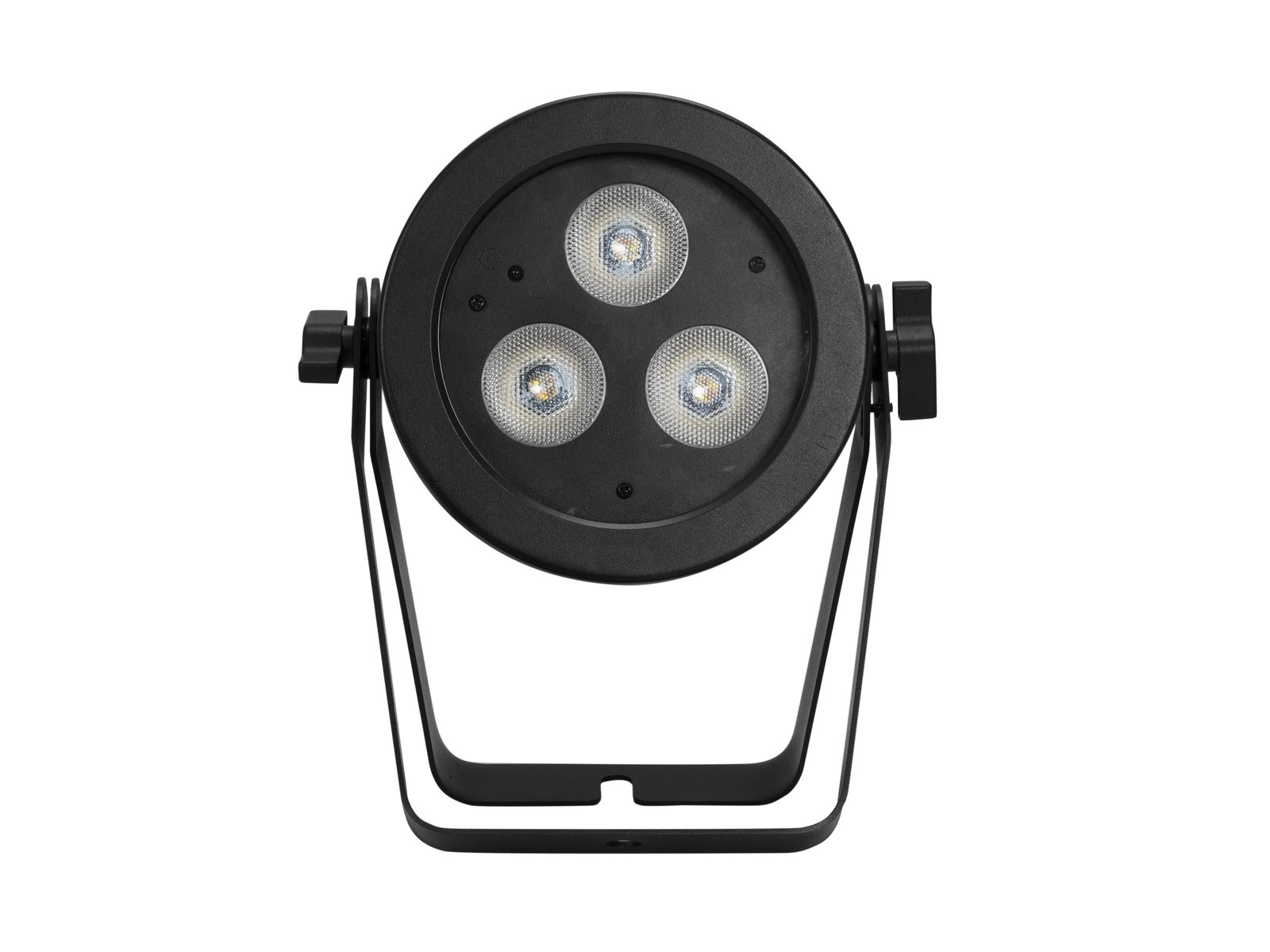

- With double bracket
- LCD display

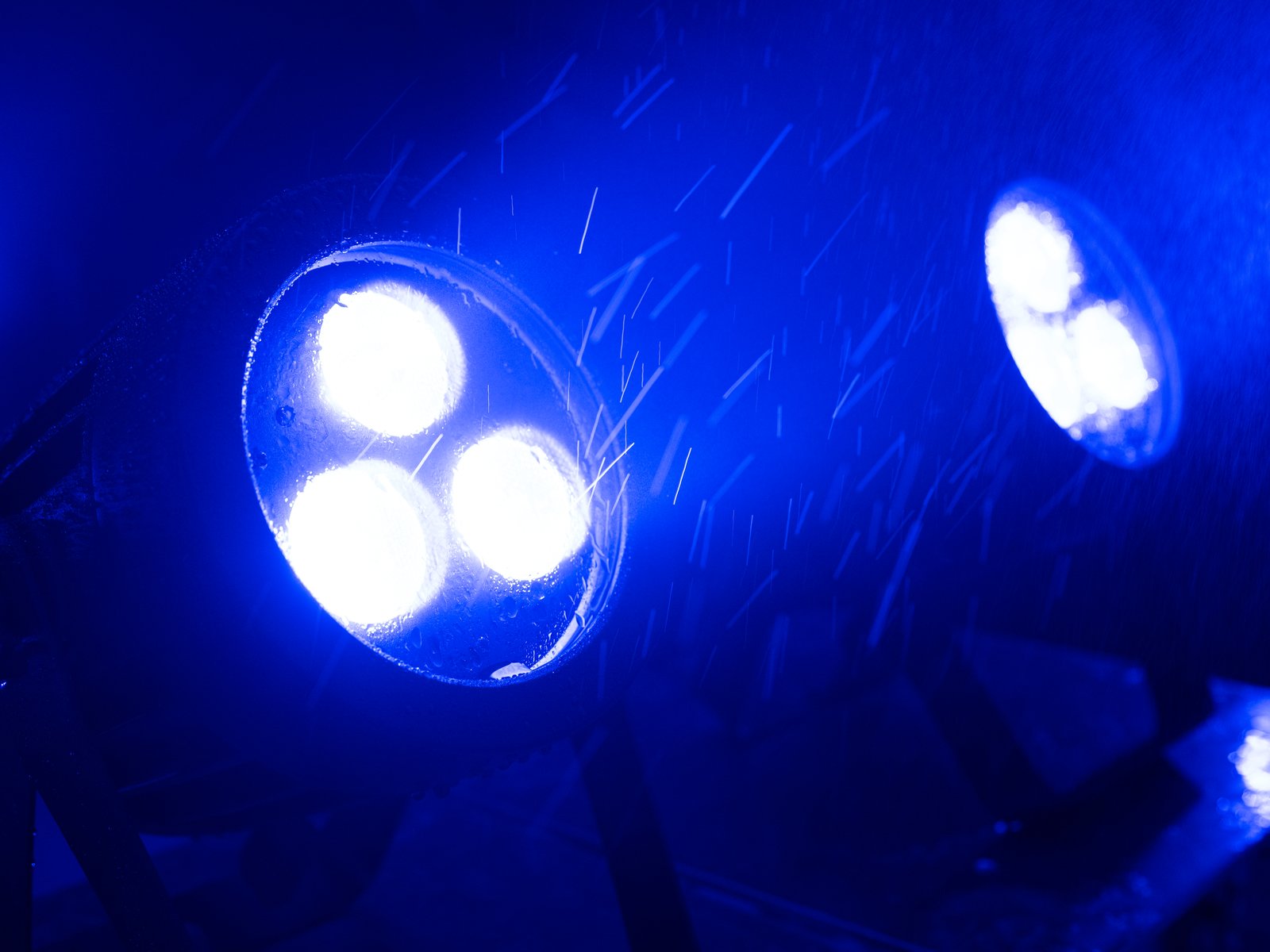

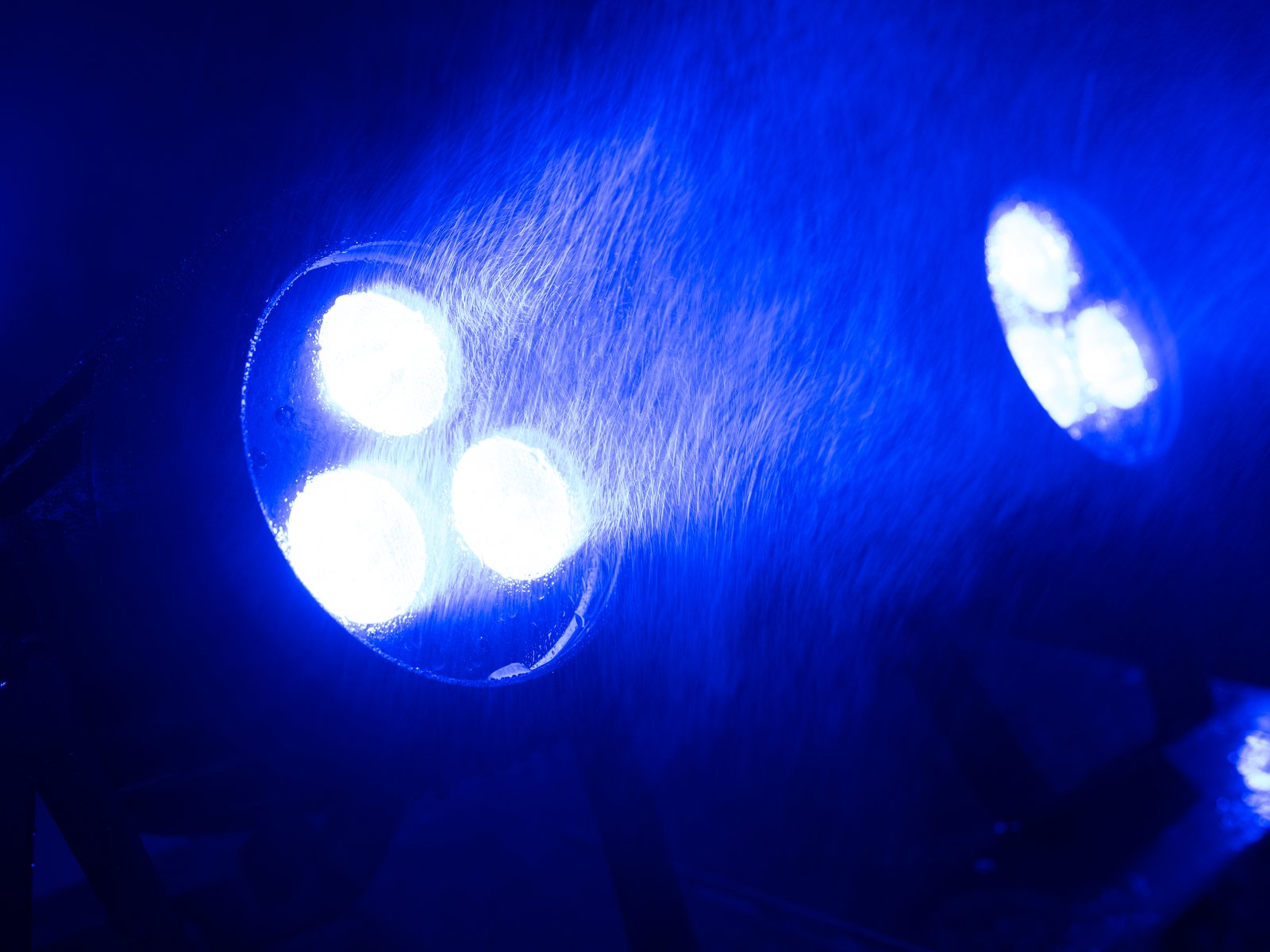

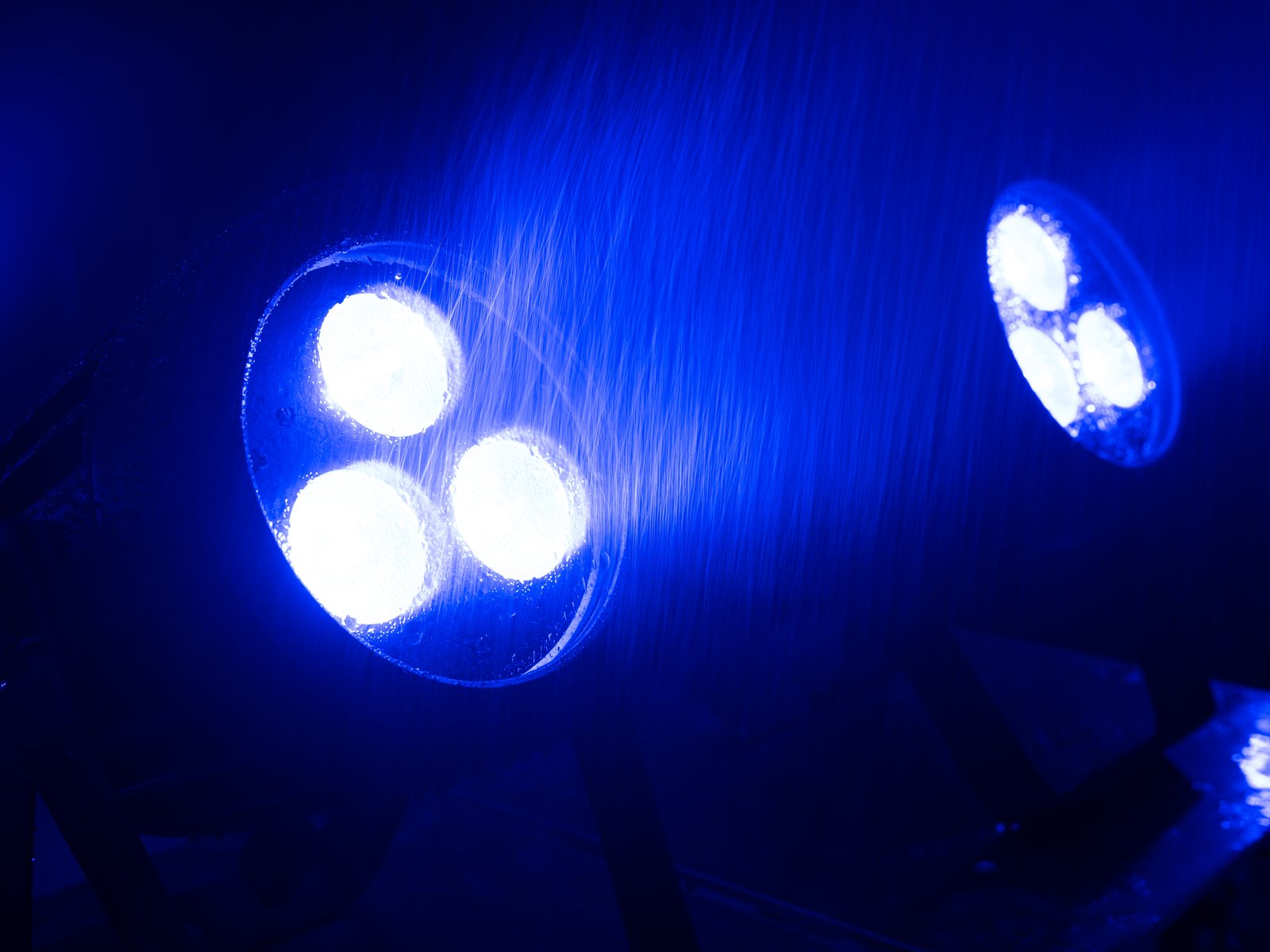

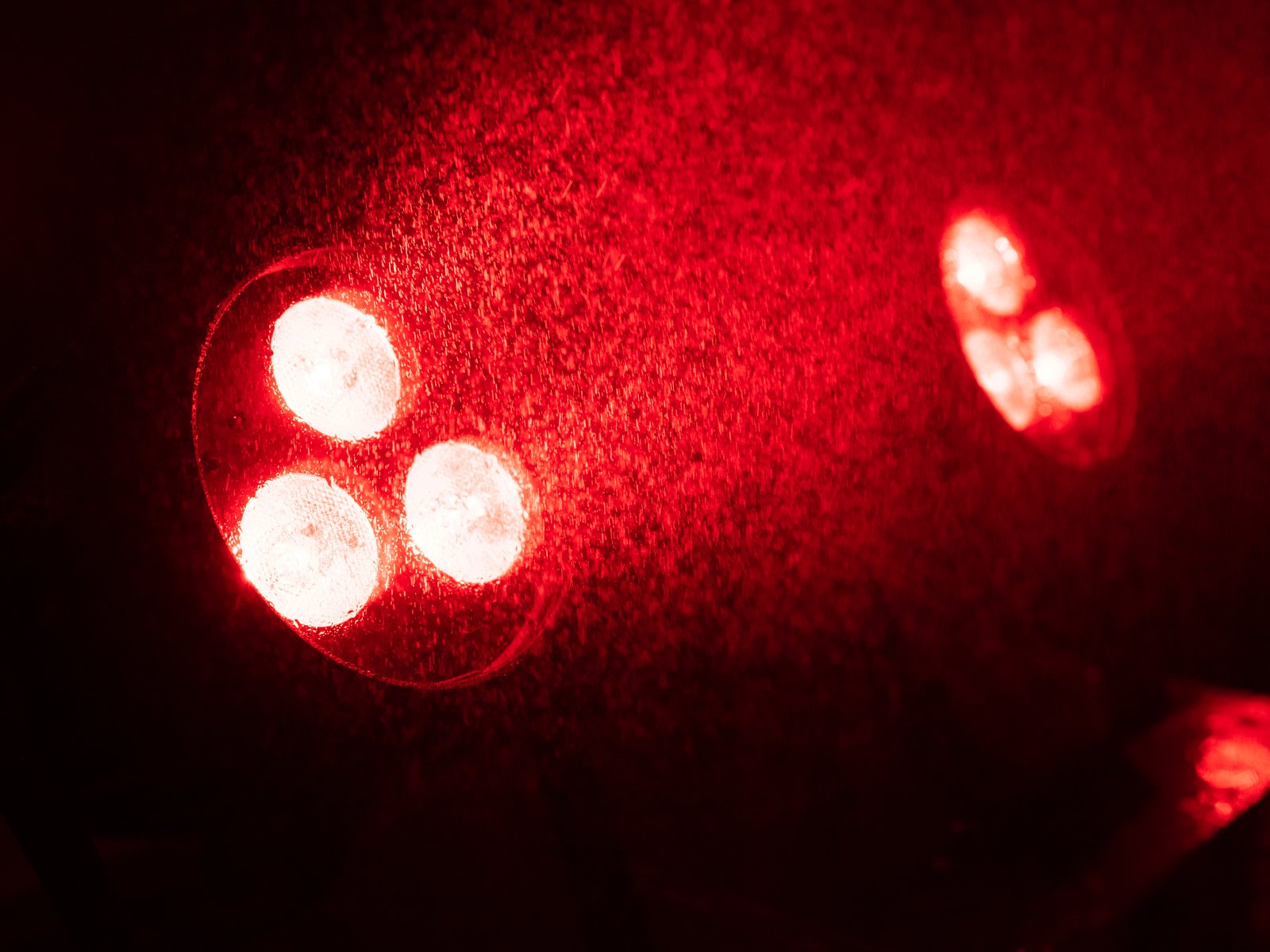

- Suitable for outdoor use IP65
- With pressure compensation membrane
- Silent operation

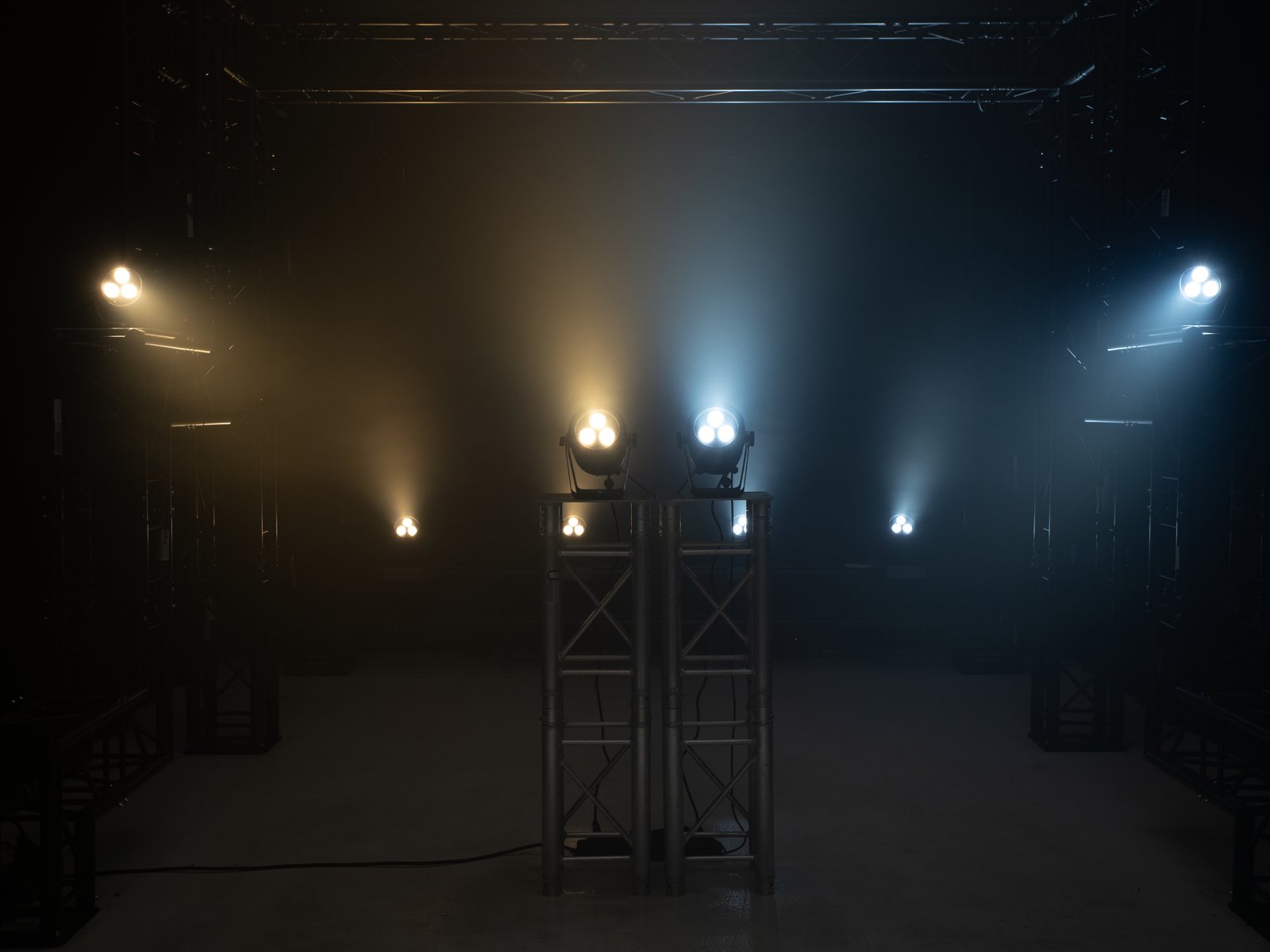

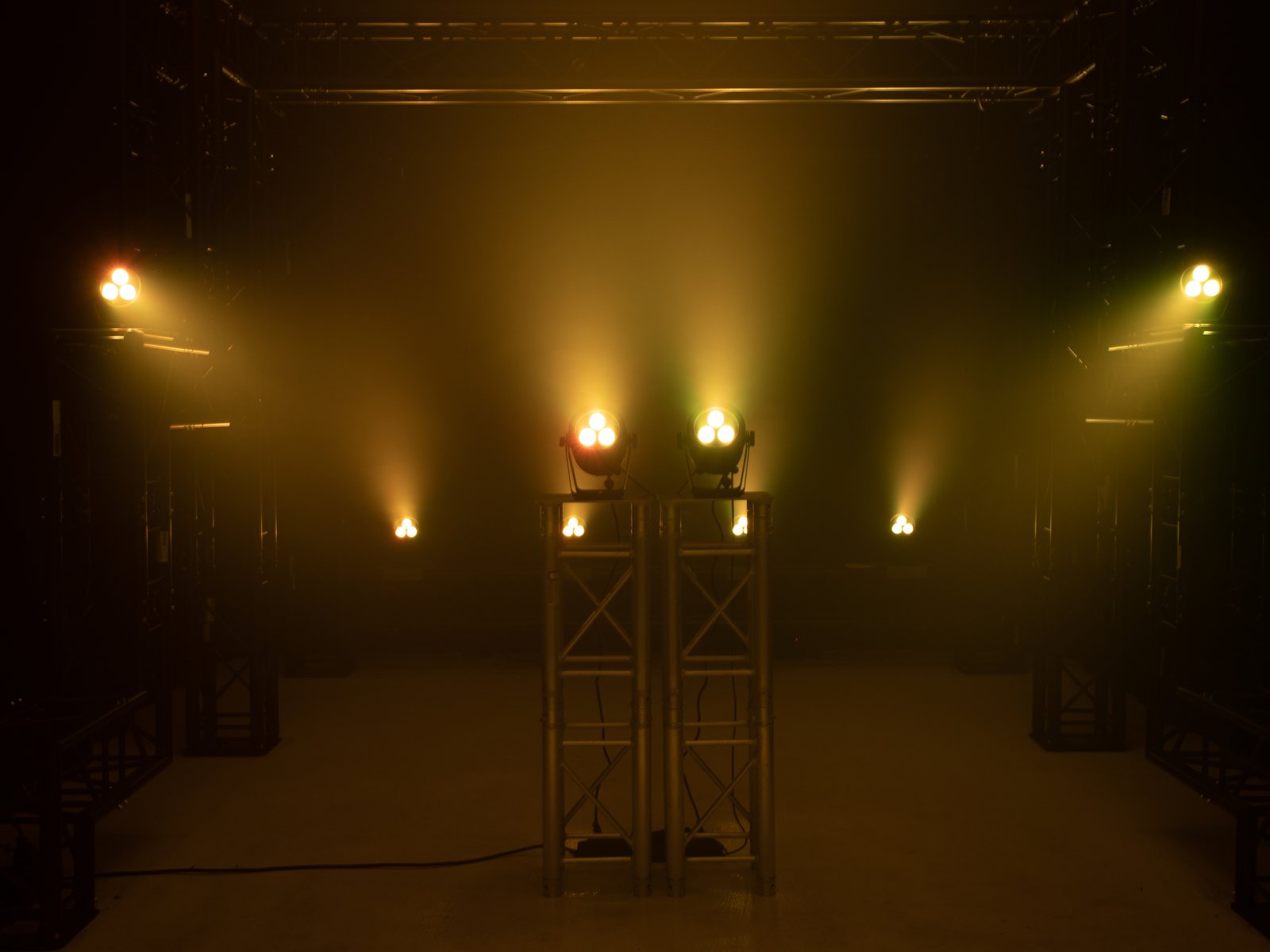

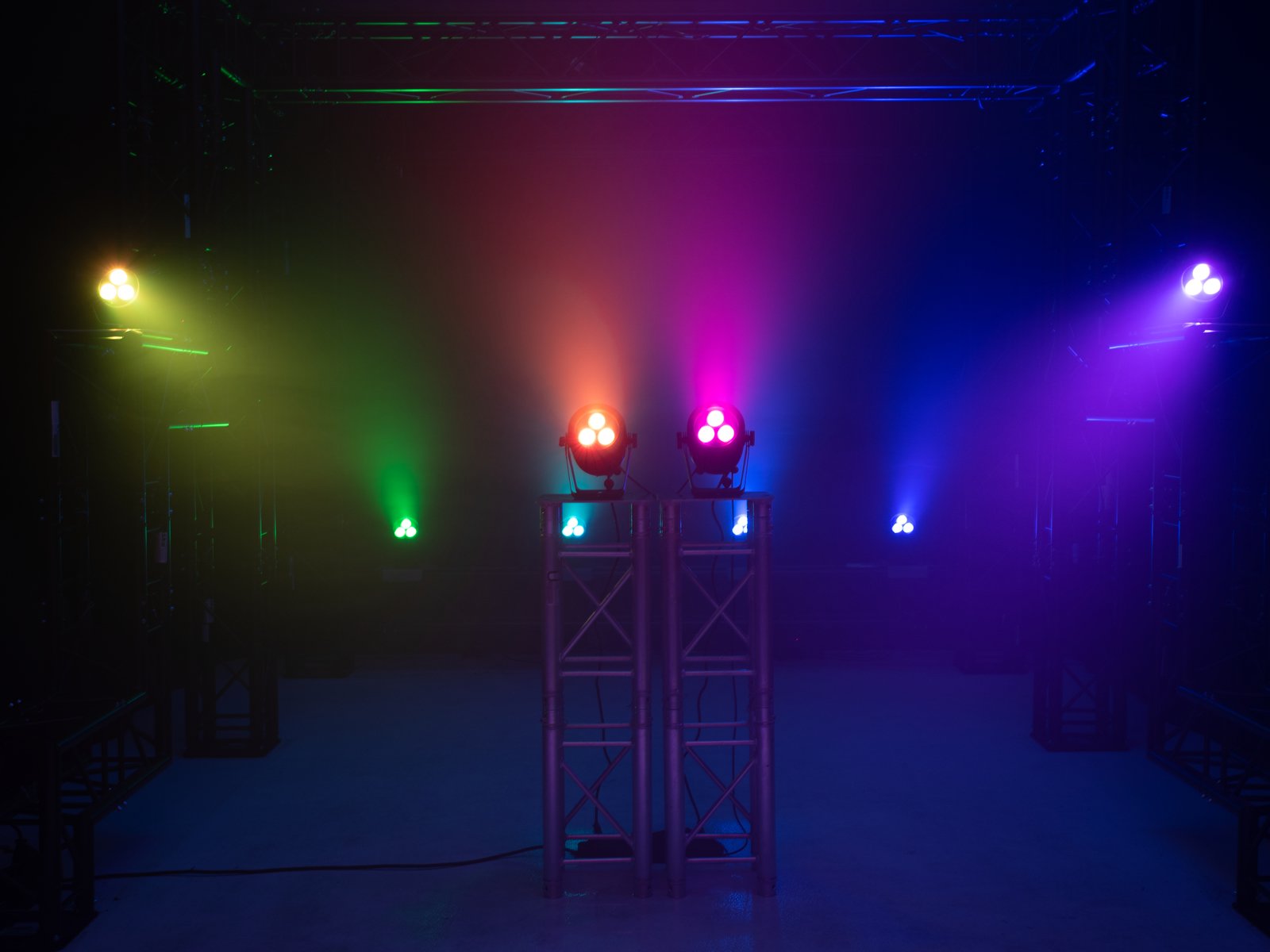

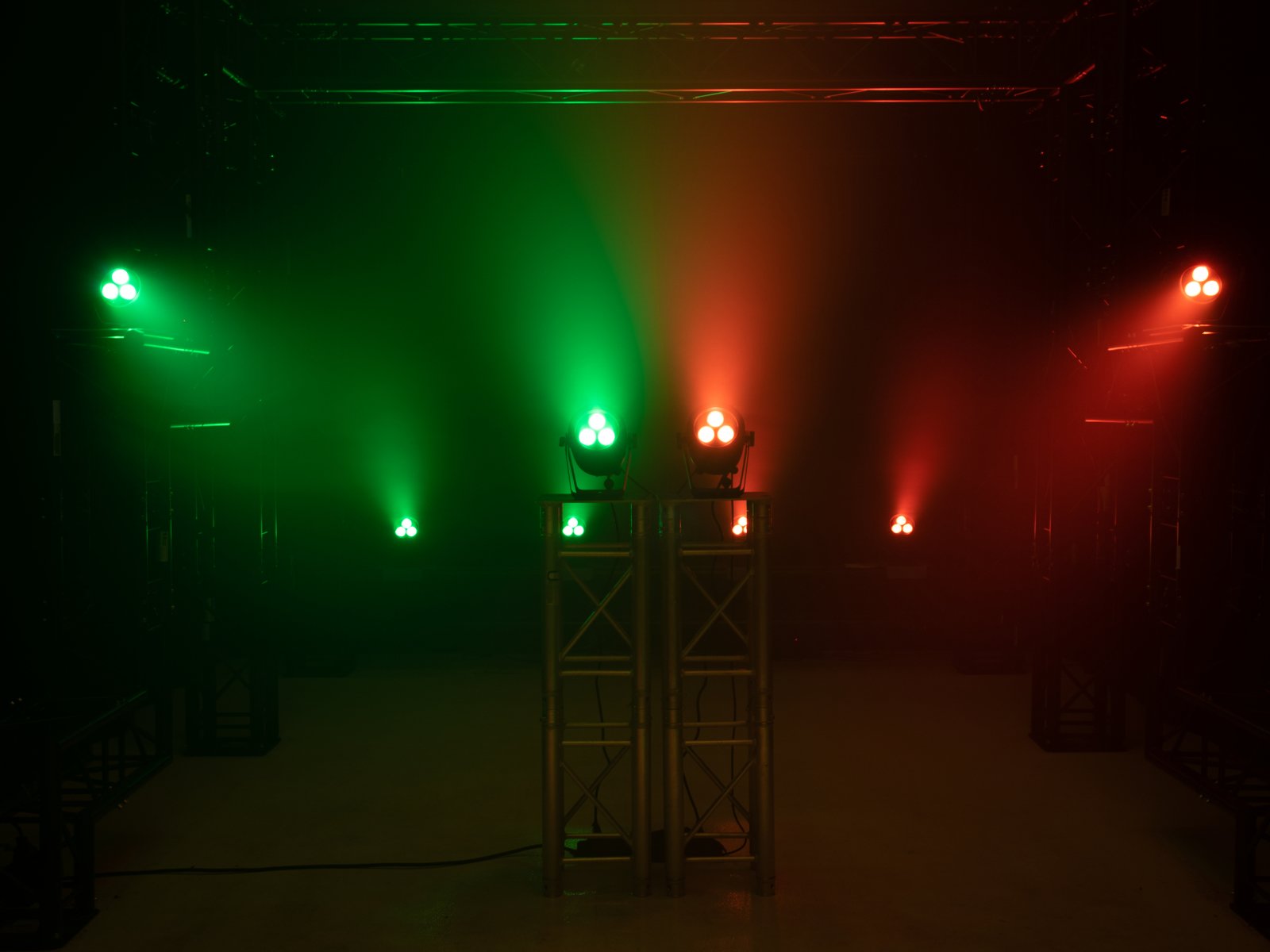

- For application areas such as: Installation; stage; rental; architecture
- Application possibility: Standing; suspended; on stand
Package contents

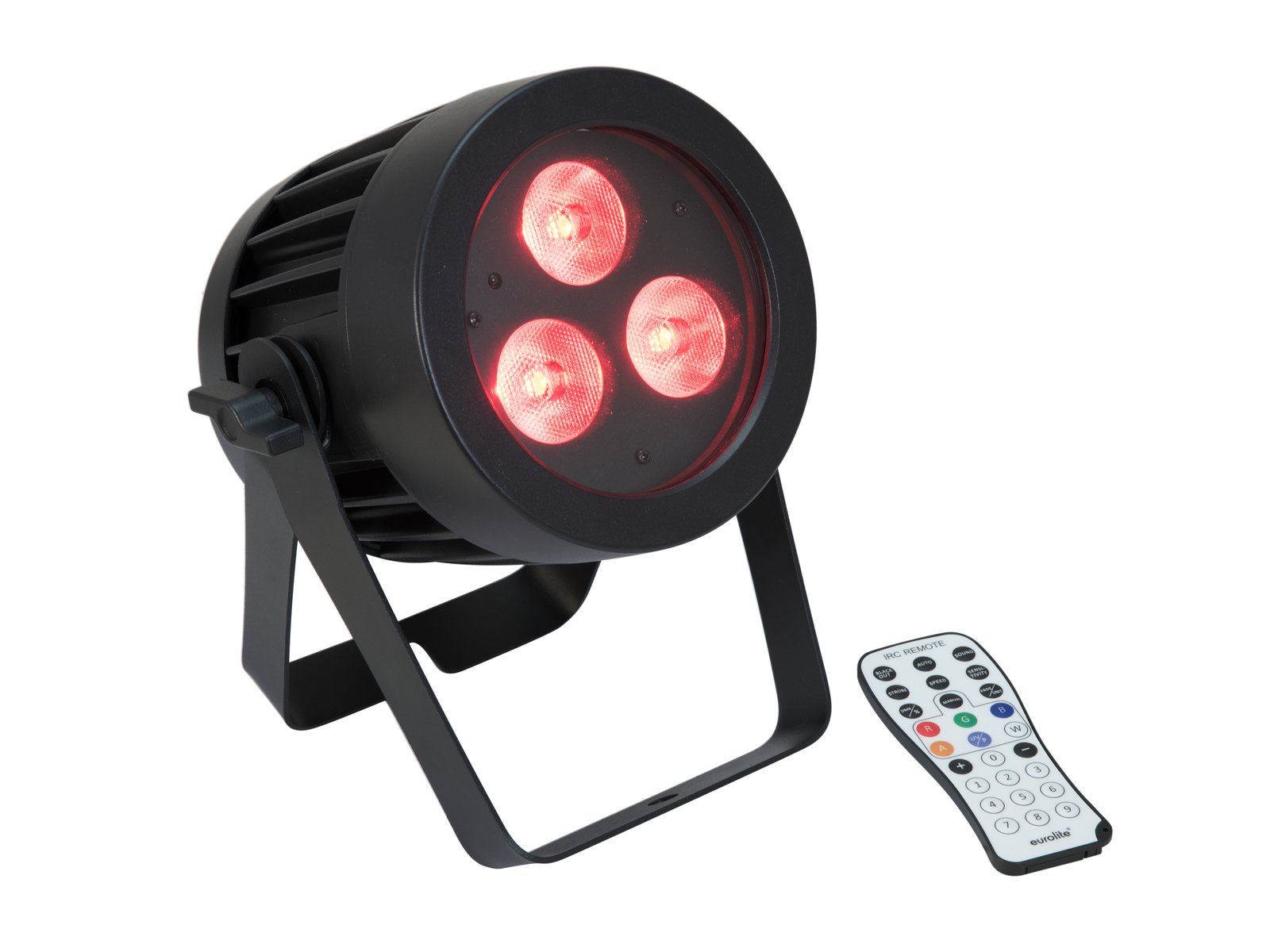

- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP65 |

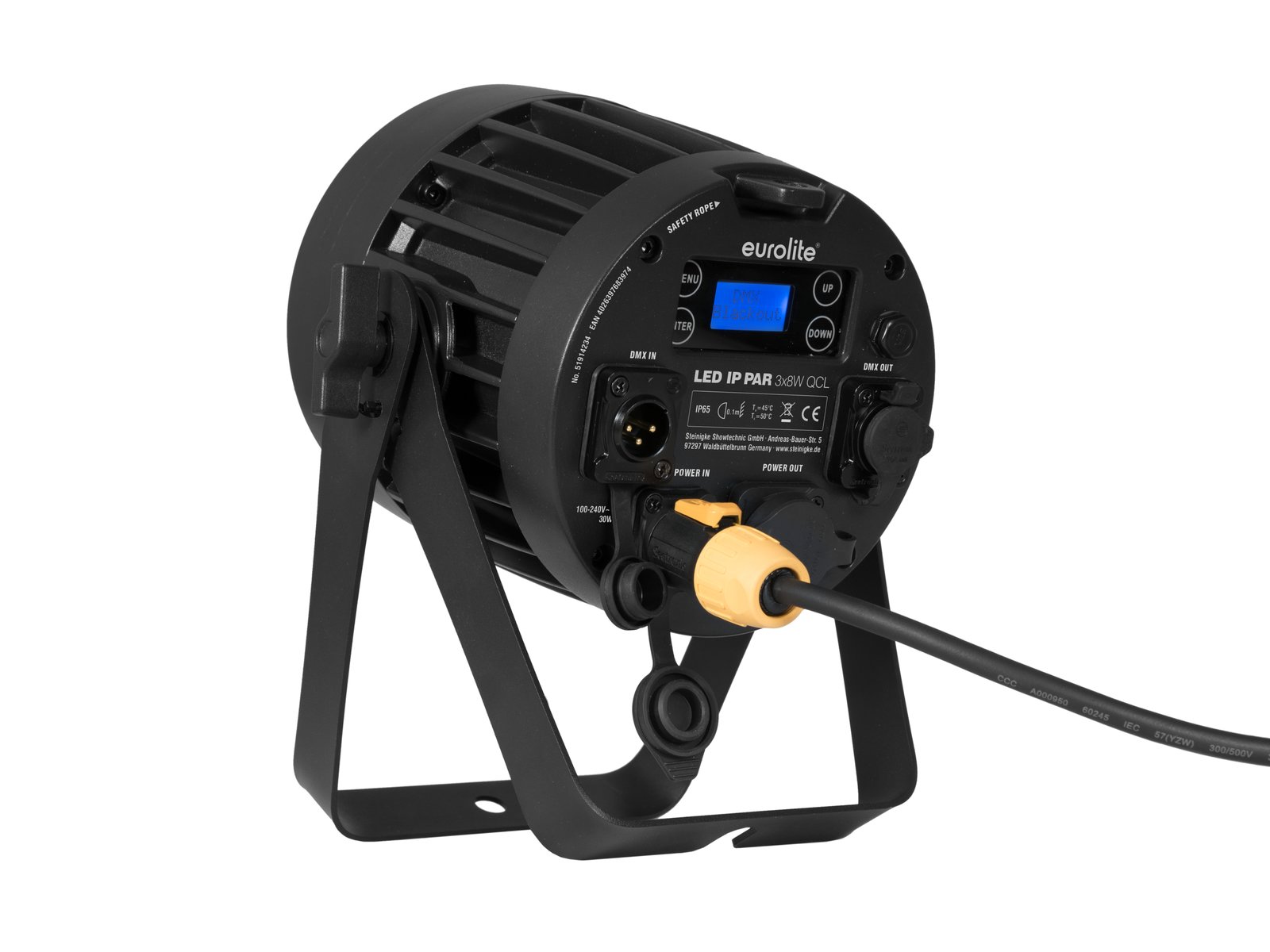

| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse serviceable |
| Lamp type: | LED lamp |
| LED type: | 3 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 3; 4; 5; 6; 10 |

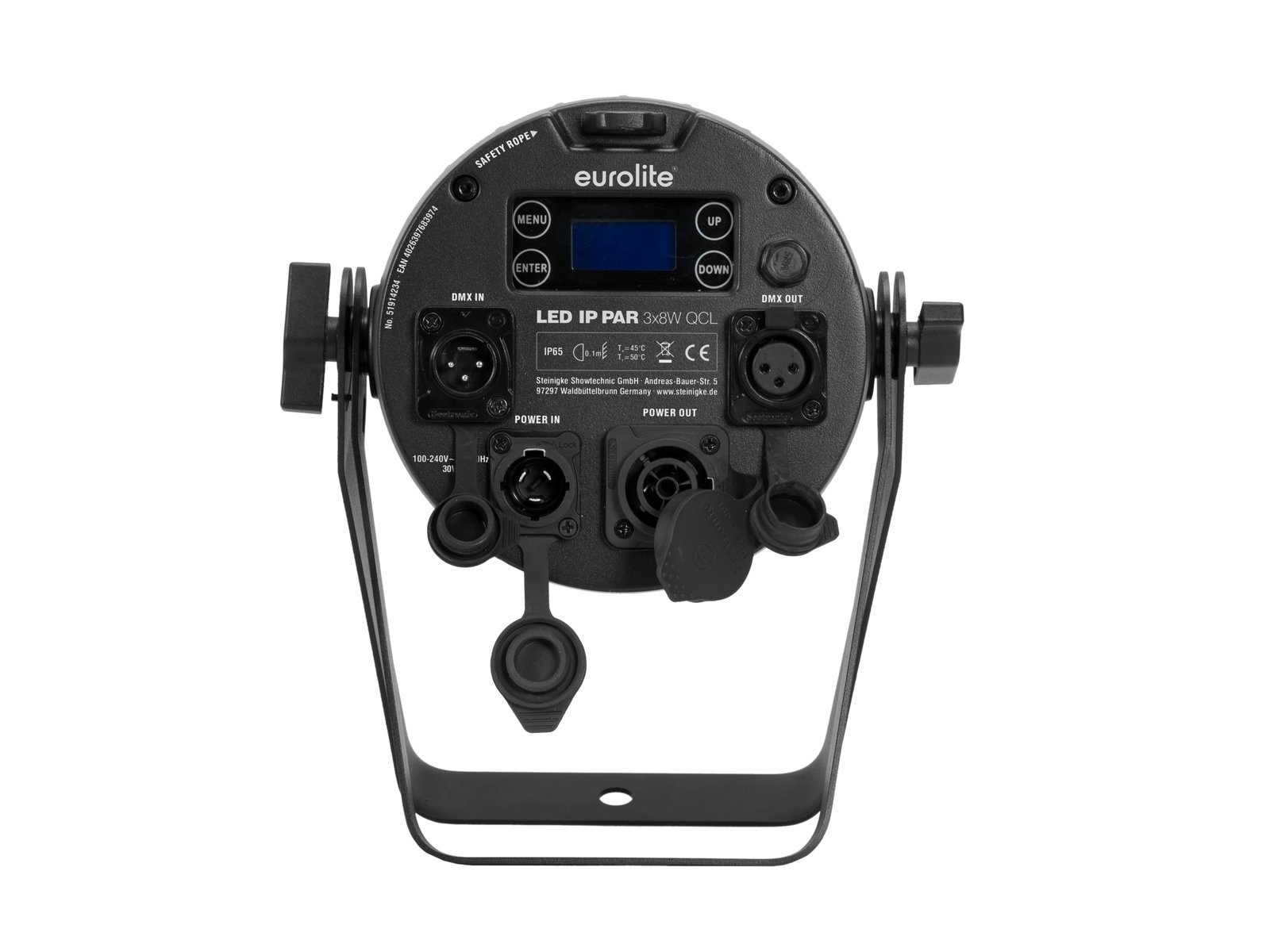

| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; IR remote control; DMX |
| Preprogrammed in: | EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black |

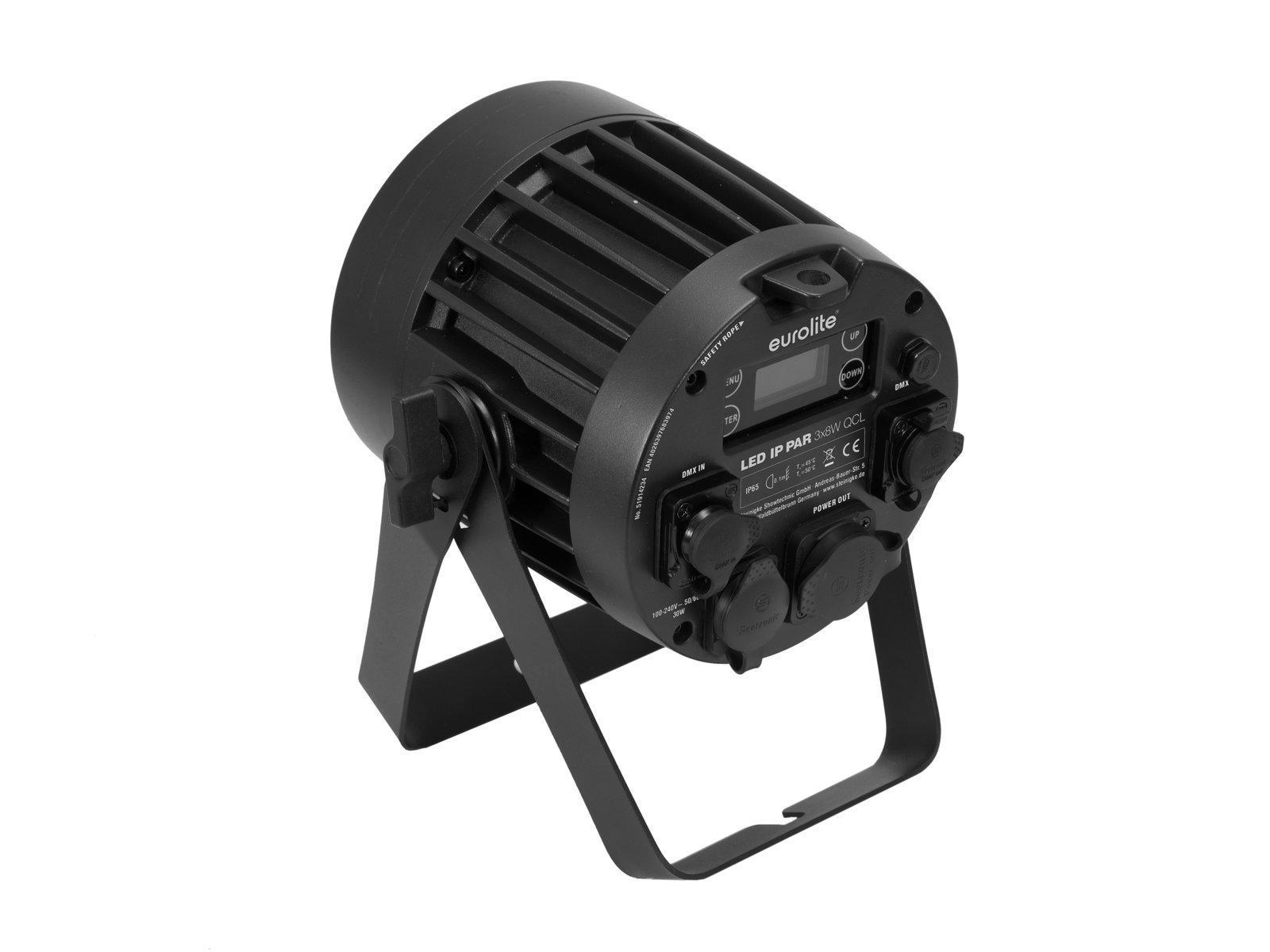

| Attachment system: | Double bracket |
| Display type: | LCD display |
| Material: | Aluminum casting |
| Dimensions: | Width: 21,5 cm Depth: 17,1 cm Height: 24,4 cm |
| Weight: | 3,00 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm |
| Material: | Metal, 2 mm |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397683974 | 3,20 kg | 19cm x 19cm x 29cm |
