Description
Features

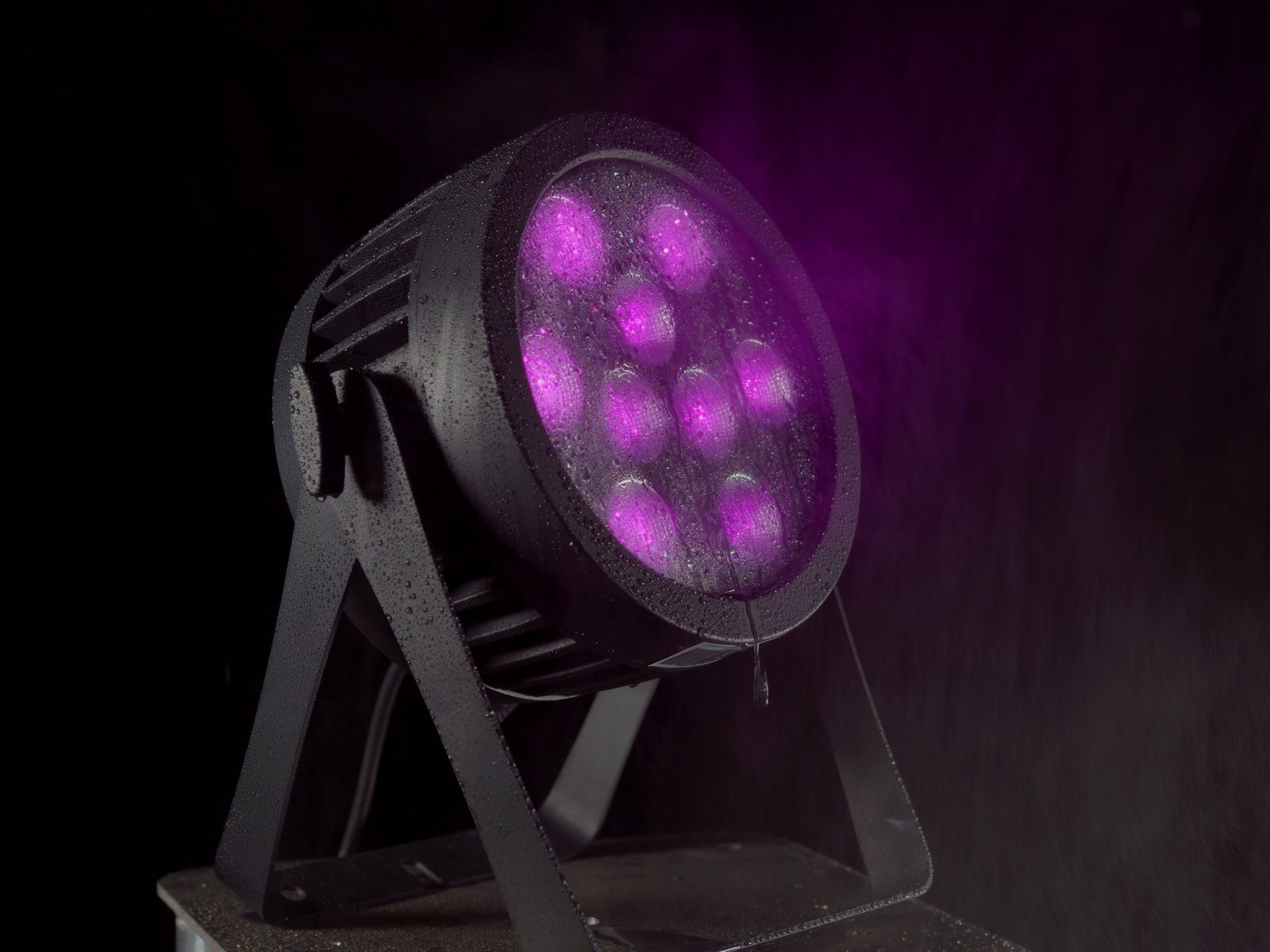

Weather-proof (IP65) PRO UV spotlight with 9 UV LEDs (365nm), incl. IR remote control
- Minimum visible light
- High output at full intensity
- 9 powerful LEDs 3 W high-power ultra violet (UV)
- UV effect
- 4 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; master/slave function
- With a beam angle of 20°

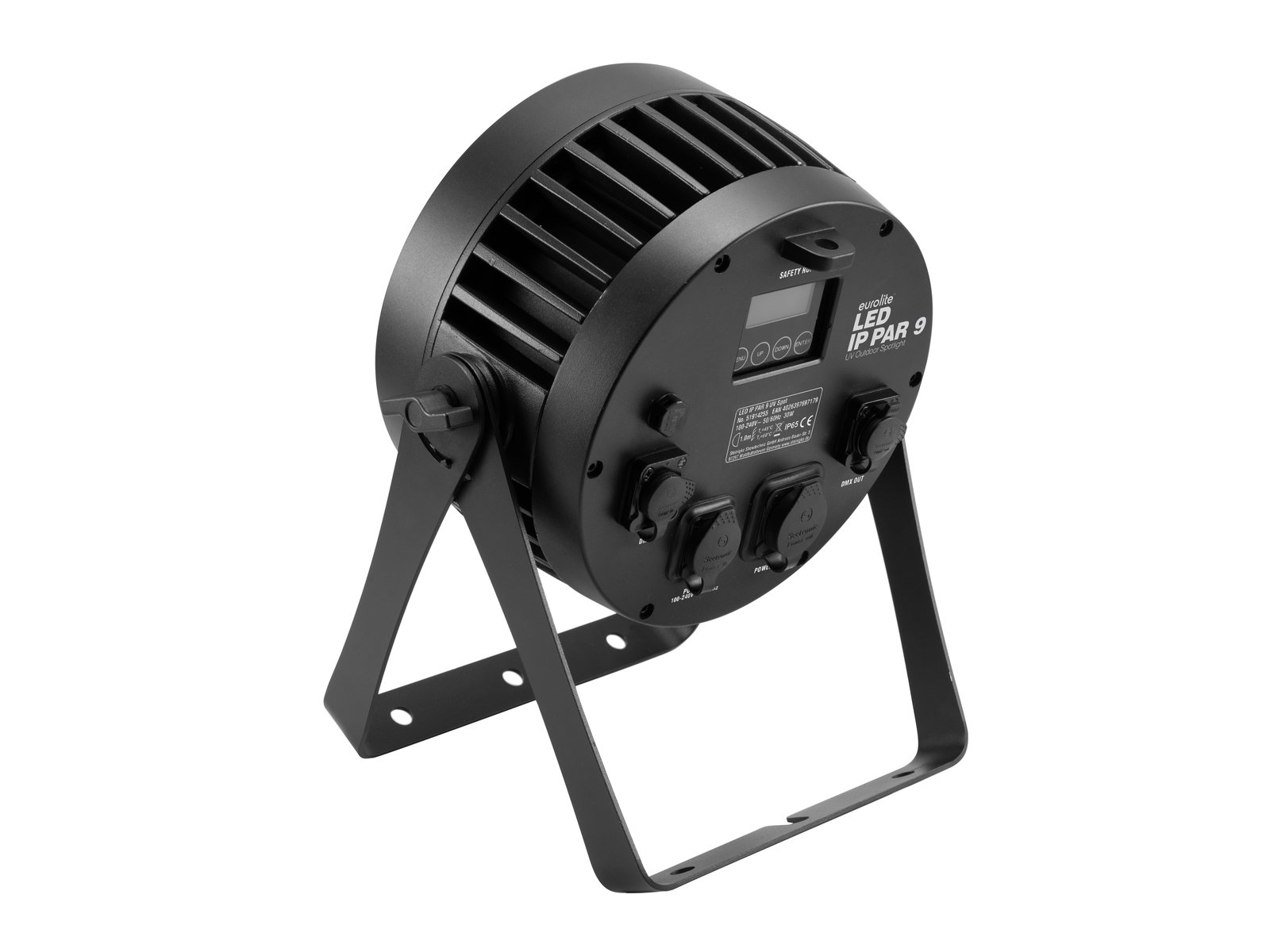

- With double bracket
- LCD display
- Suitable for outdoor use
- Dimmer electronic
- Preprogrammed in Light Captain; Light´J

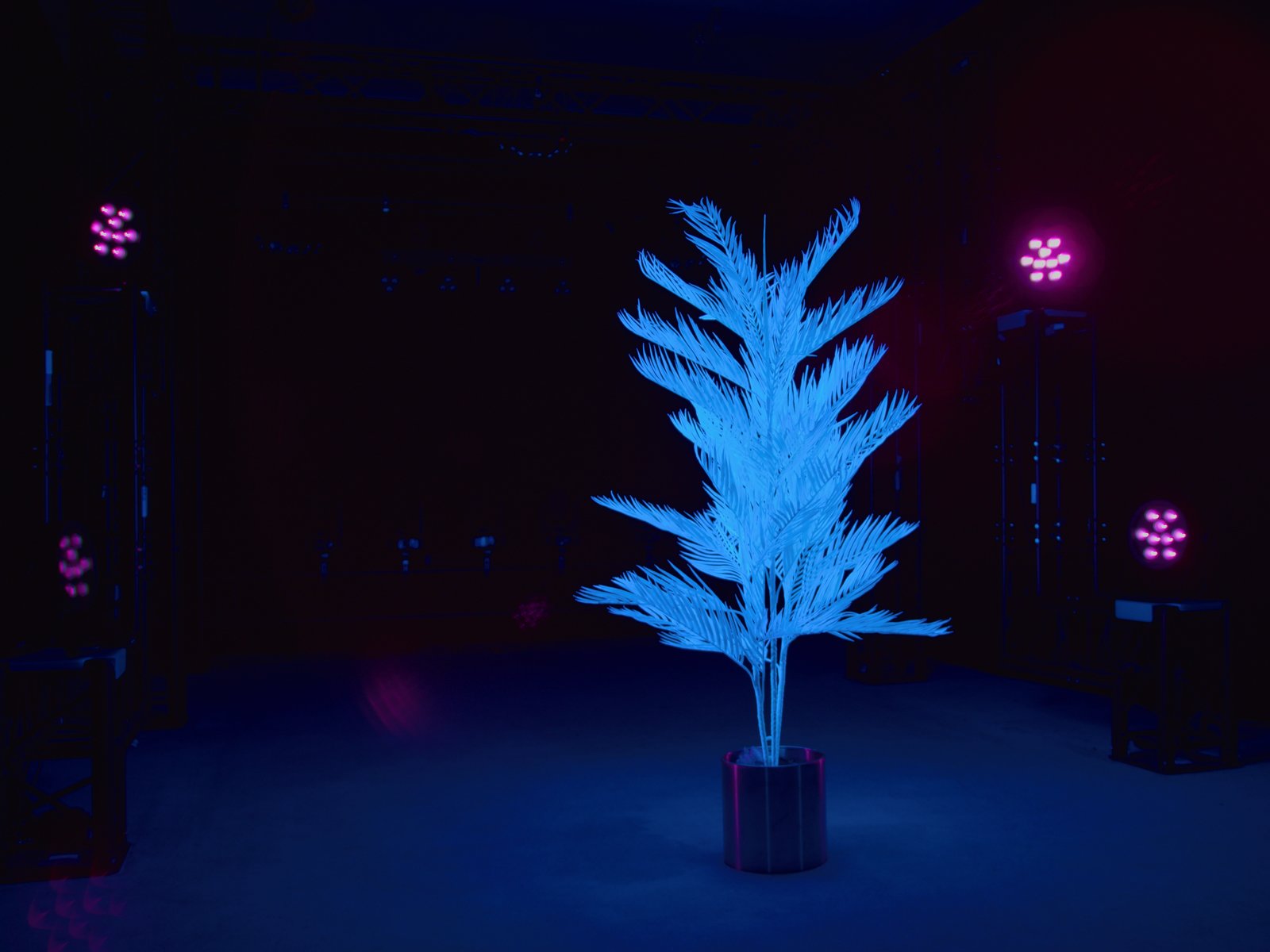

- For application areas such as: Clubs/dancing school; installation; theater; rental; architecture
- Silent operation
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) |
| LED type: | 9 x 3 W high-power ultra violet (UV) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 1; 2; 4 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; master/slave function |
| Preprogrammed in: | Light Captain; Light´J |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 50 |
| Wavelength: | 370 nm |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | LCD display |
| Material: | Aluminum casting |
| Dimensions: | Width: 28,90 cm Depth: 15,25 cm Height: 33,80 cm |
| Weight: | 4,87 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1,2 m |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm |
| Material: | Metal, 2,5 mm |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397697179 | 5,40 kg | 38cm x 32,5cm x 19,5cm |
