Description
Features

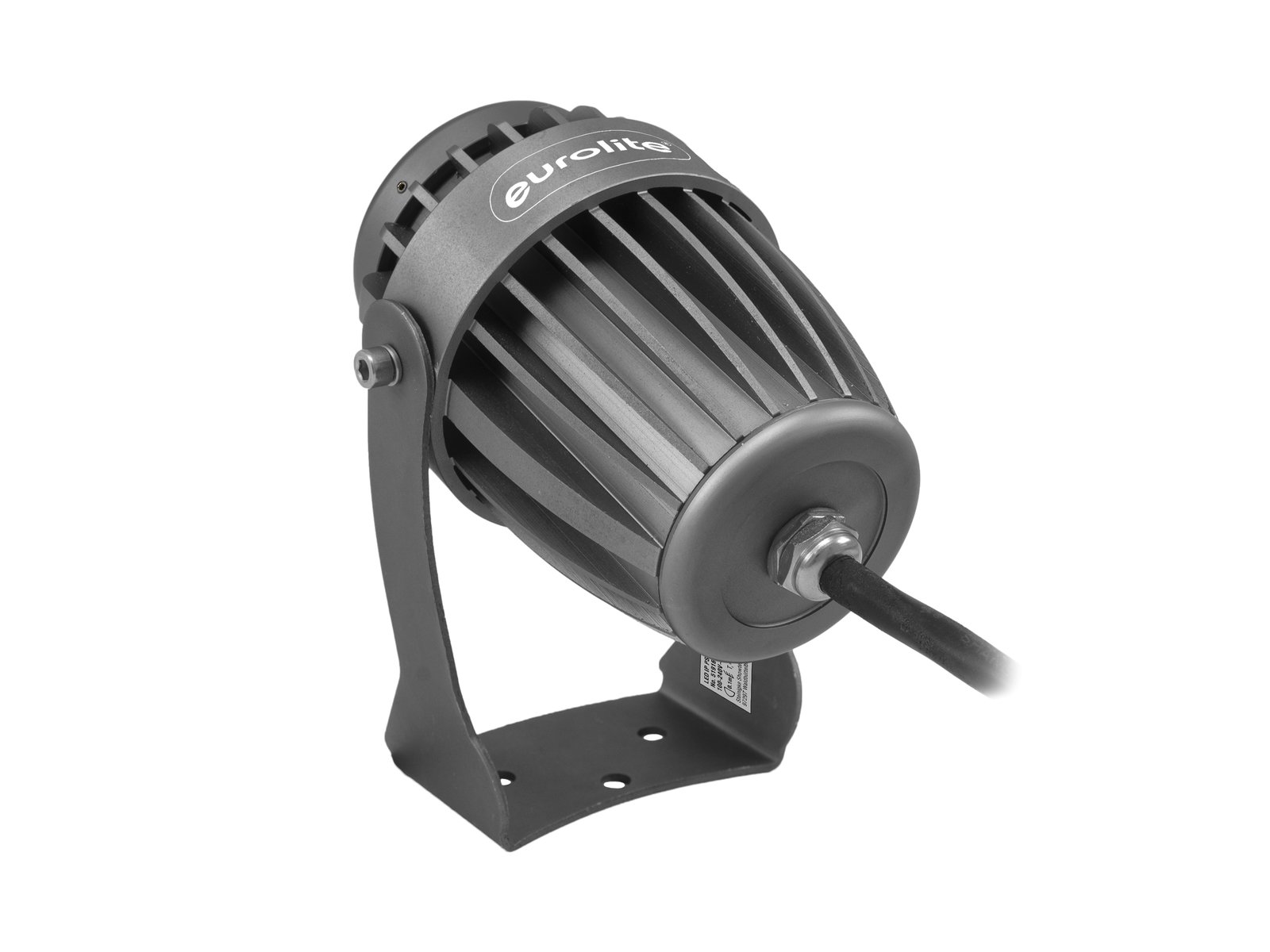

Weather-proof pinspot (IP65) with strong 10 W LED in warm white (WW)
- Compact aluminum housing
- 1 powerful LED 10 W high-power warm white (WW)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 4°
- With mounting bracket
- Suitable for outdoor use IP65
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x device, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 10 W high-power warm white (WW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 4° |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Color temperature: | 2700K |
| Illuminance in Lux (lx): | 1m: 30222 lx, 3m: 4331 lx, 6m: 1130 lx |
| Luminous flux: | 803 lm |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 10,5 cm Depth: 15 cm Height: 14,7 cm |
| Weight: | 790 g |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A – G): | F |
| EPREL-Nr: | 1066944 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Aluminum, 2 mm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397617993 | 0,79 kg | 11cm x 13cm x 17cm |
