Description
Features

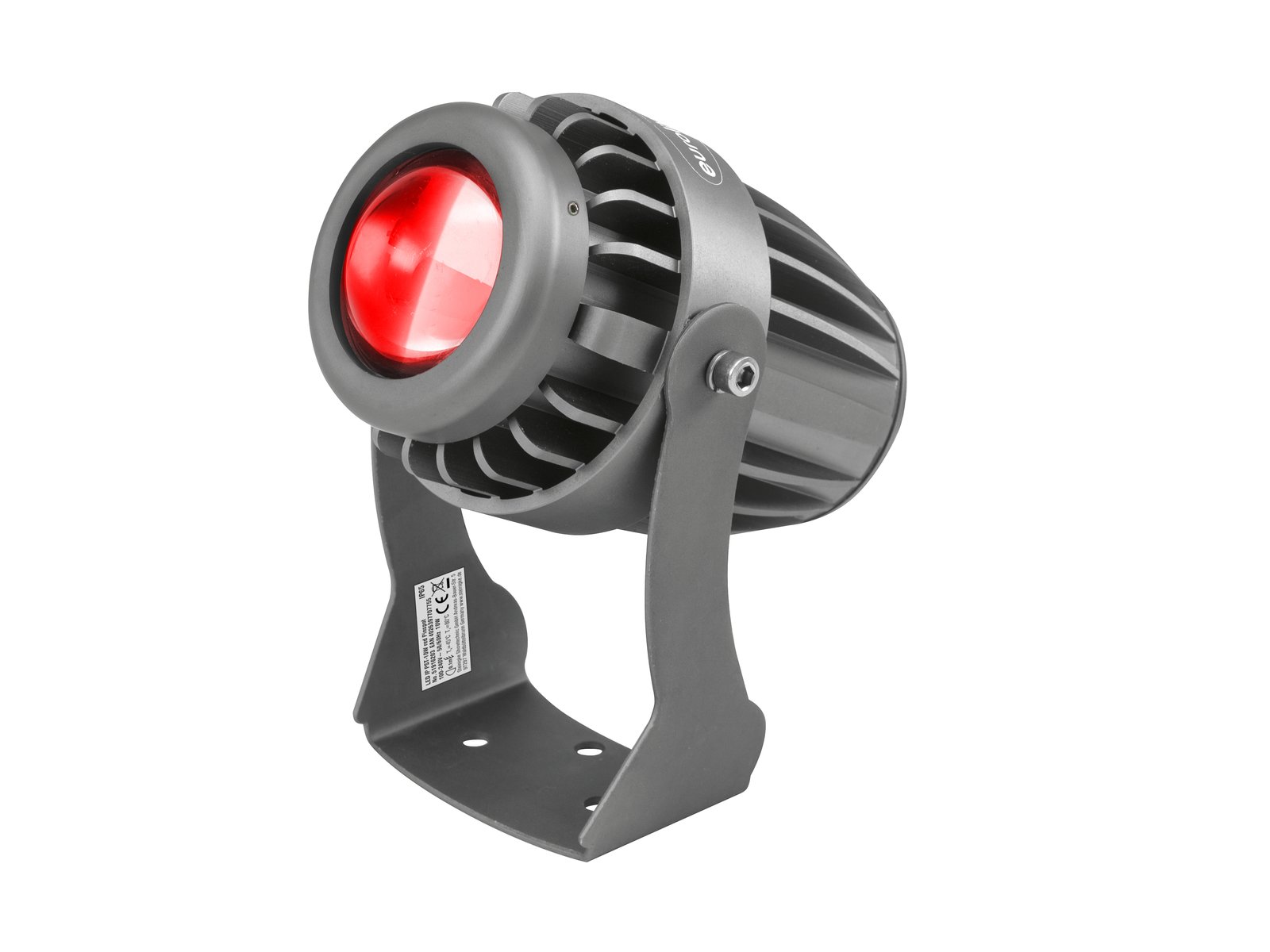

Weather-proof pinspot (IP65) with strong 10 W LED in red (R)
- Compact aluminum housing
- 1 powerful LED 10 W high-power red (R)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Clubs/dancing school; architecture; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 10 W high-power red (R) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Illuminance in Lux (lx): | 1m: 18640 lx, 3m: 3168 lx, 6m: 778 lx |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Width: 10,5 cm Depth: 15 cm Height: 14,7 cm |
| Weight: | 730 g |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Metal, 2 mm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397707755 | 0,80 kg | 17cm x 11cm x 13cm |
