Description
Features

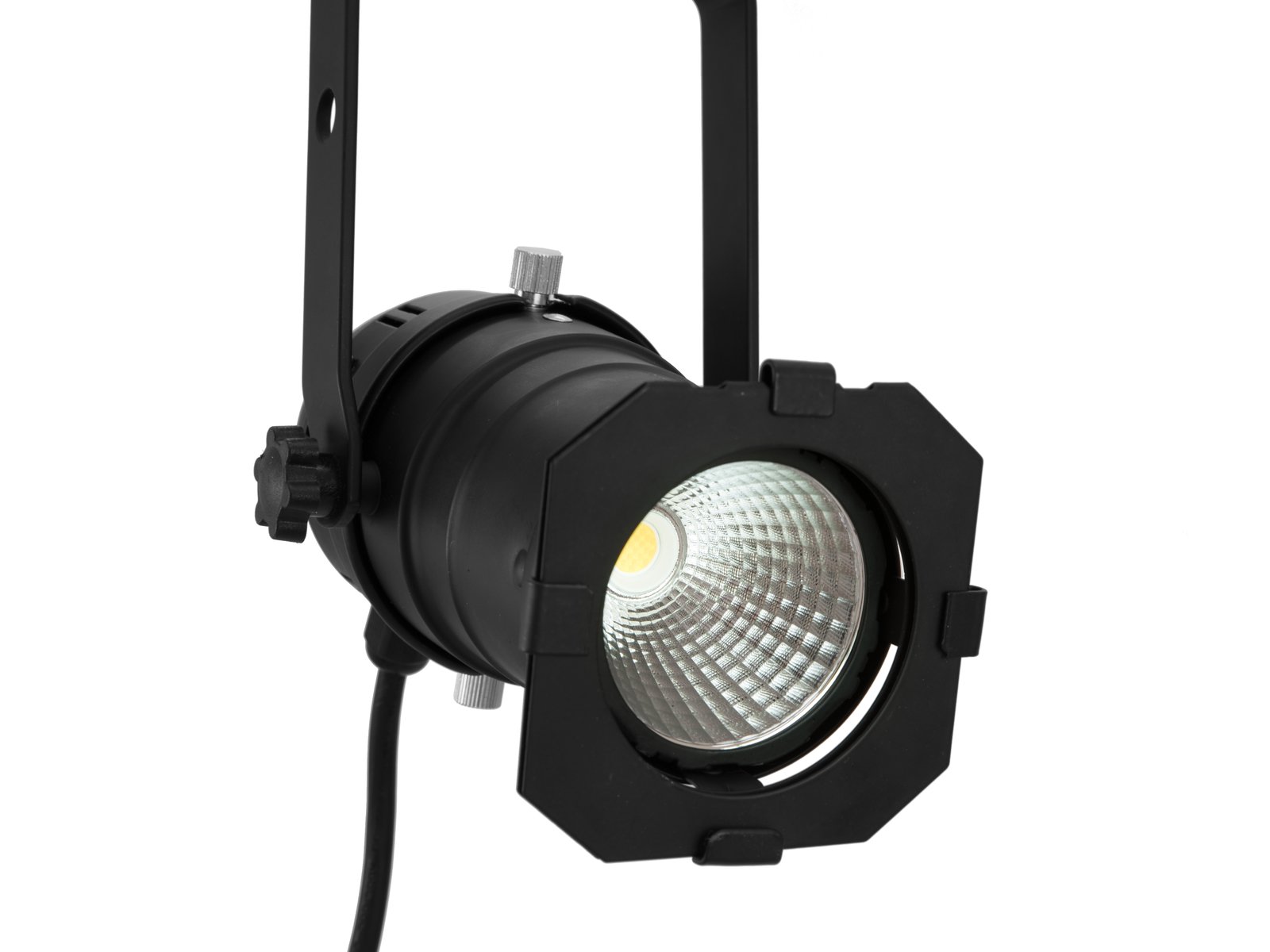

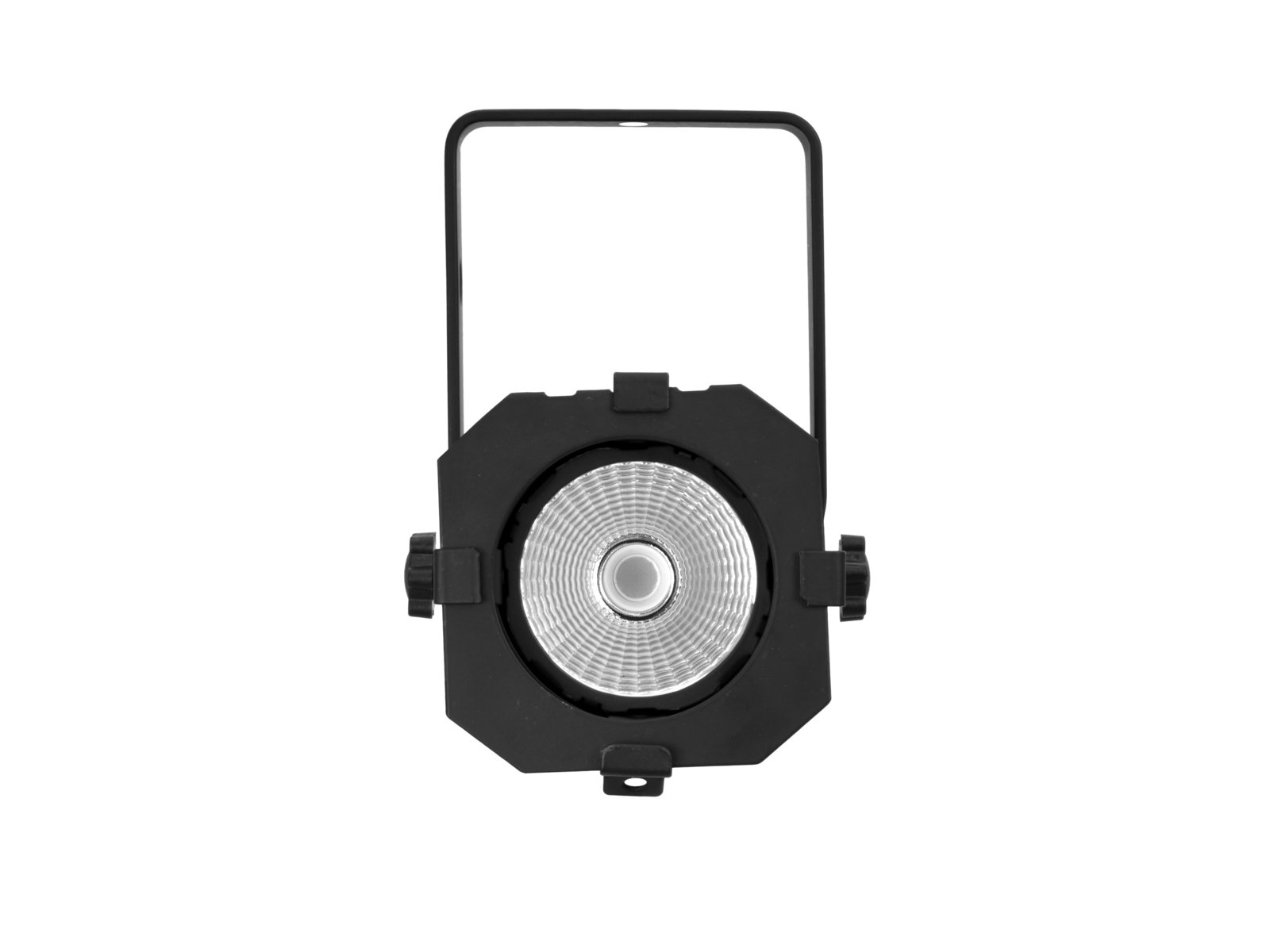

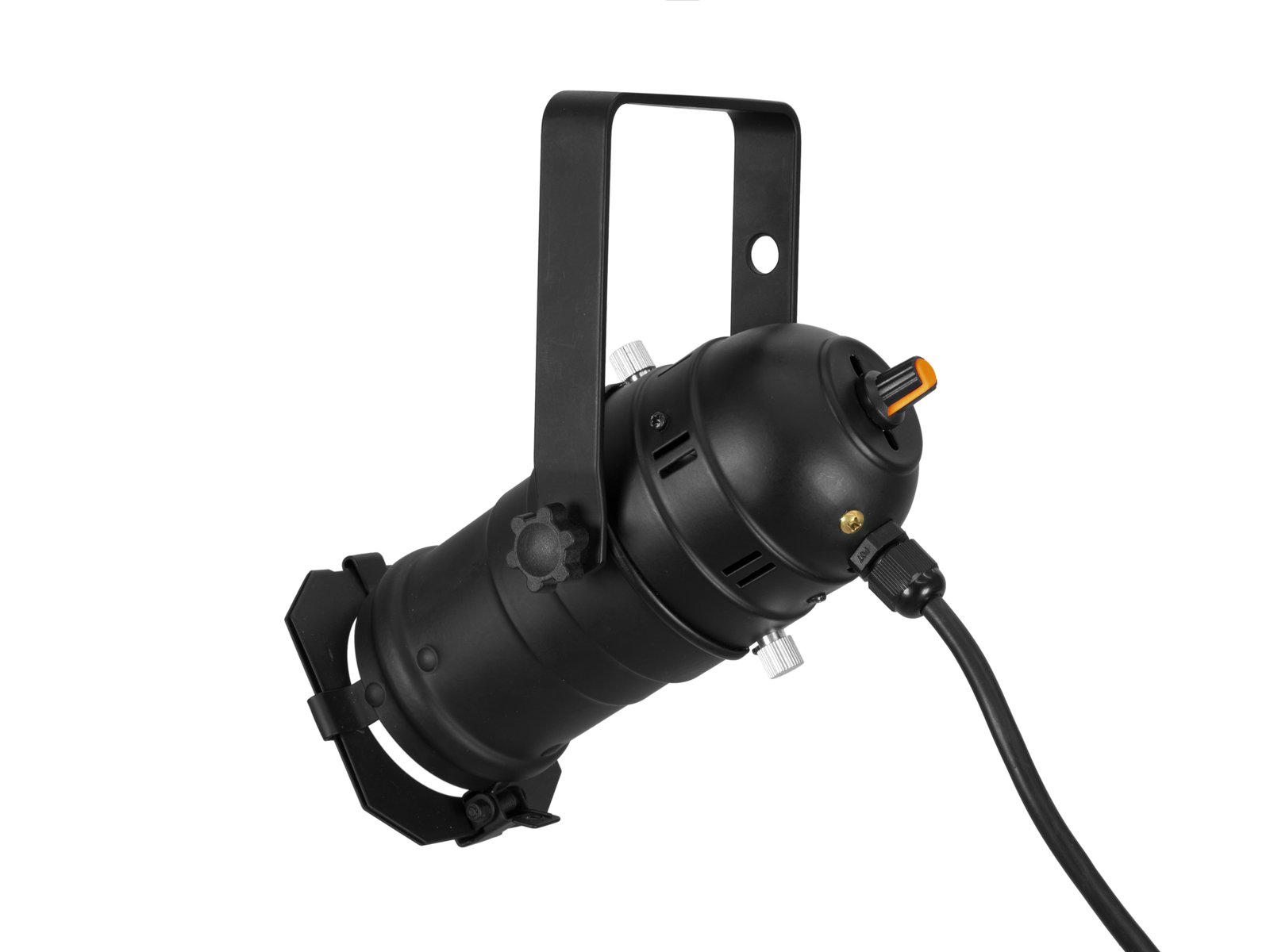

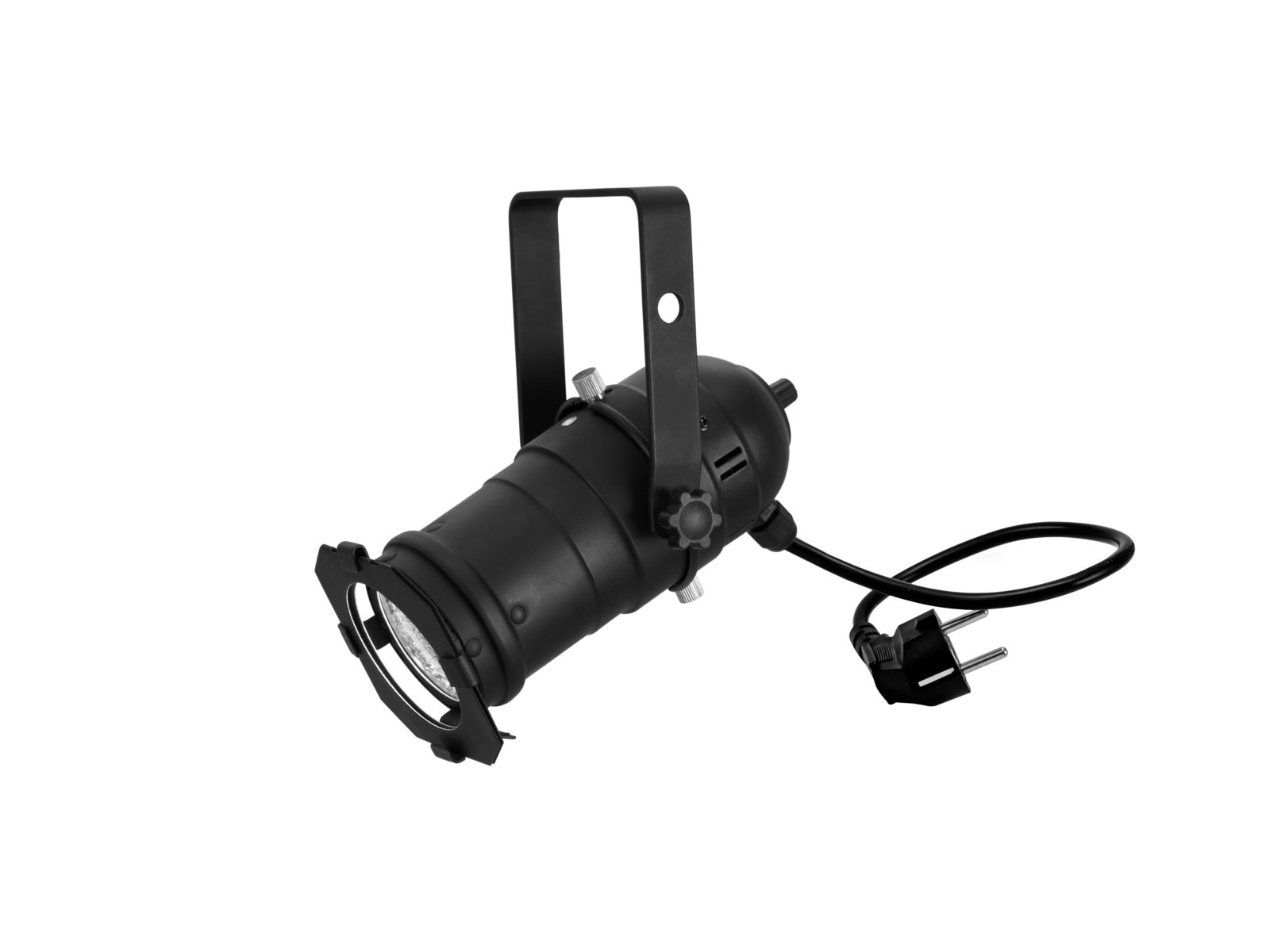

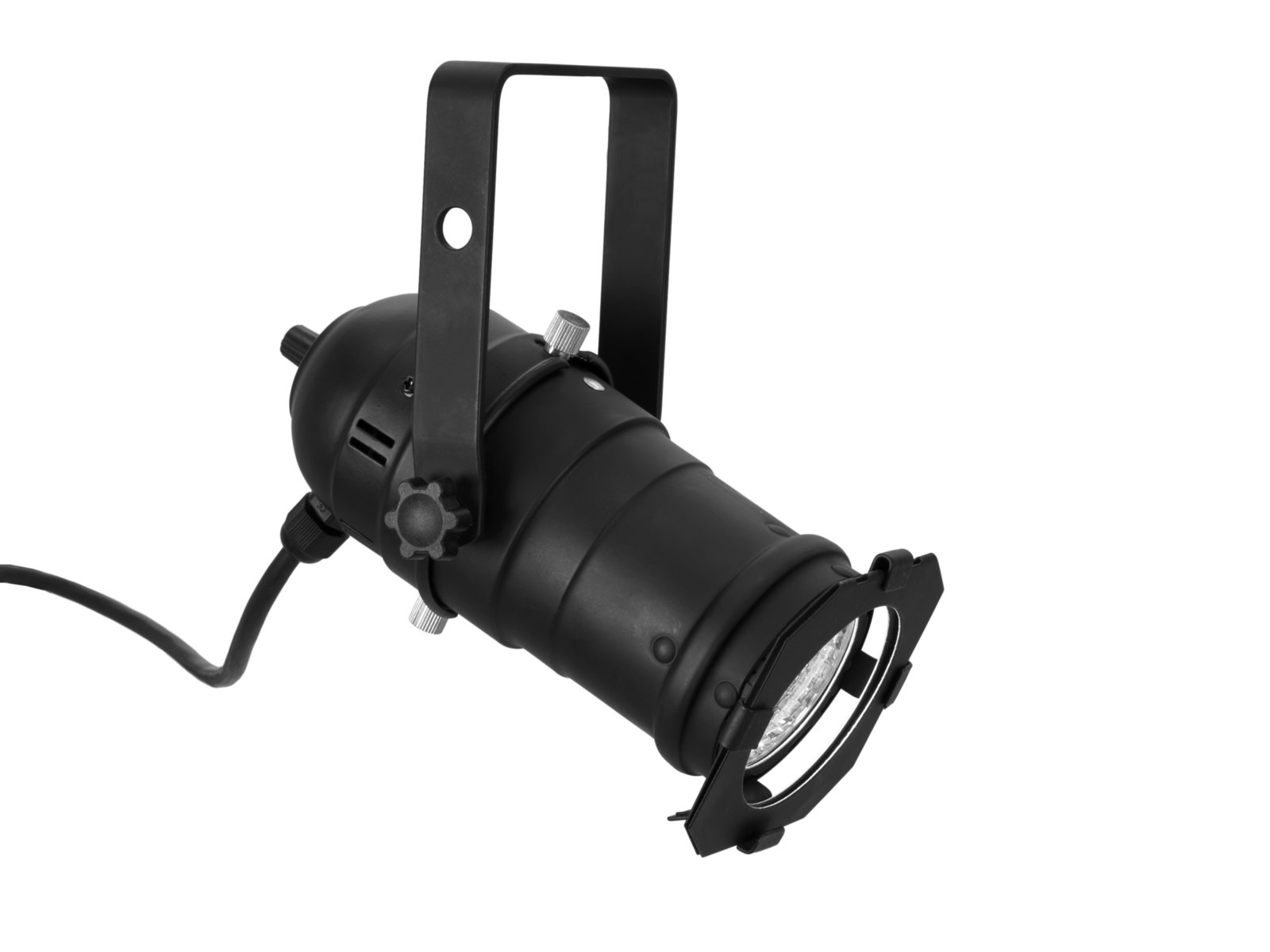

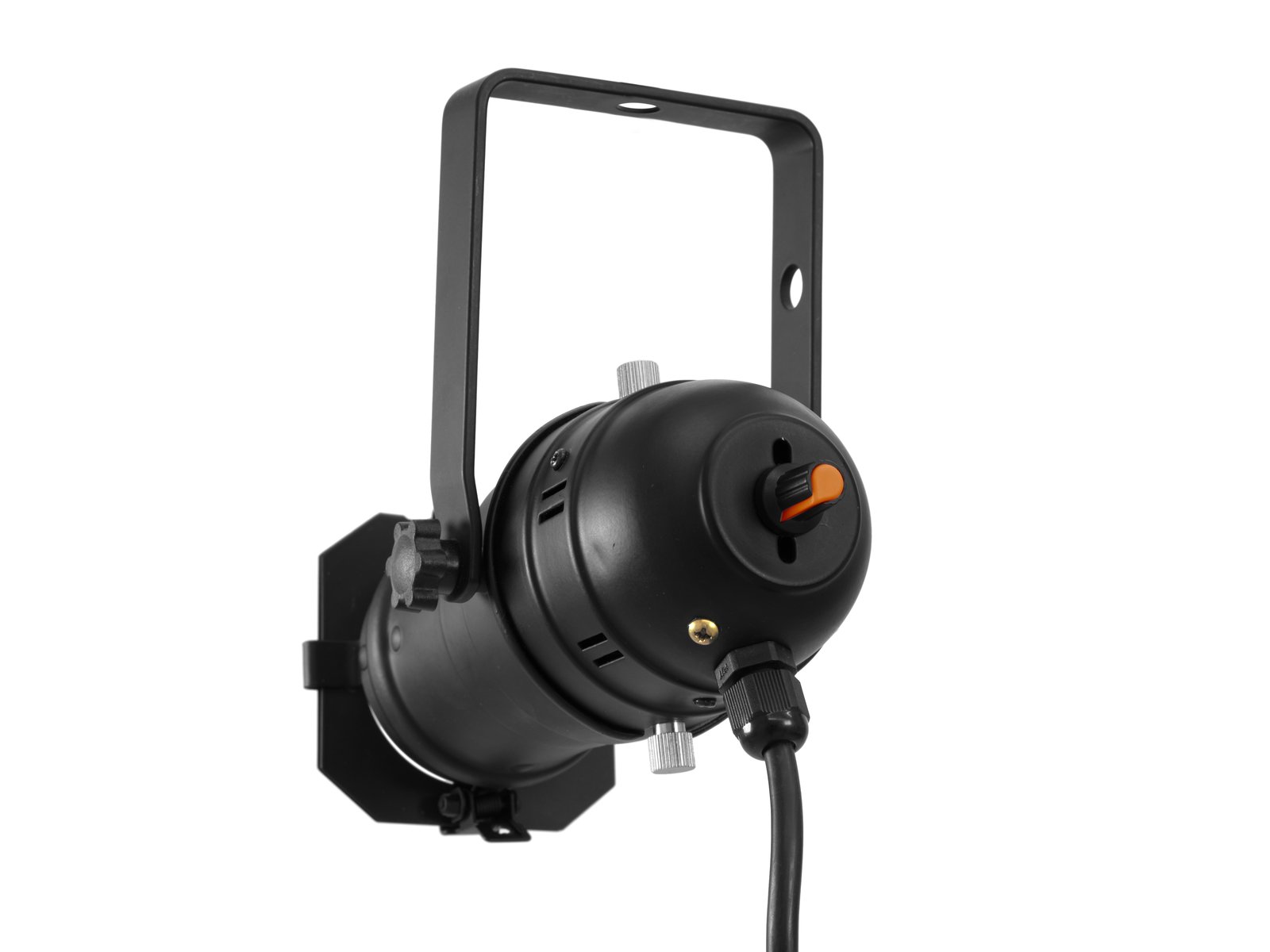

LED spotlight with three adjustable color temperatures and high color rendering index
- 1 powerful LED 16 W COB (chip-on-board) 2in1 BCL CW/WW
- The device is cooled by passive convection cooling
- Control via stand-alone
- Flicker-free
- With a beam angle of 25°
- Very high color rendering index (CRI)
- With mounting bracket
- Available in various colors
- Silent operation
- For application areas such as: Trade fair and shop fitting; video and photography; installation; restaurants, bars and hotels
- Dimmable
- Dimmer electronic
- Direct color temperature selection for 3 preset values
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 12 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,4 m |
| Lamp type: | LED lamp |
| Lamp specification: | Dimmable |
| LED type: | 1 x 16 W COB (chip-on-board) 2in1 BCL CW/WW |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone |
| Projection: | Flicker-free |
| Beam angle: | 25° |
| Beam angle (1/2 peak): | 25° |
| Beam angle (1/10 peak): | 50° |
| Color temperature: | 3000K; 4000K; 5000K |
| Color rendering index (CRI): | 90 Ra |
| Illuminance in Lux (lx): | 3000 K 1m: 2463 lx, 3m: 300 lx, 6m: 79 lx 4000 K 1m: 2148 lx, 3m: 315 lx, 6m: 86 lx 5000 K 1m: 2576 lx, 3m: 346 lx, 6m: 93 lx |
| Lamp life: | 15000 h |
| Luminous flux: | 800 lm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Aluminum |
| Slot for spot length: | 8,6 cm x 8,6 cm |
| Dimensions: | Length: 19,2 cm Width: 11,5 cm Height: 16,0 cm |
| Weight: | 520 g |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A – G): | G |
| EPREL-Nr: | 1269731 |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø10mm |
| Material: | Aluminum casting, 3 mm |
| Dimensions: | Width: 9,4 cm Depth: 2 cm Height: 12,4 cm |
| Filter frame | |
| Shape: | Octagonal |
| Material: | Aluminum |
| Dimensions: | Width: 8,3 cm Height: 8,3 cm Diameter: Ø 6,1 cm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397692075 | 0,57 kg | 10cm x 10cm x 24cm |
