Description
Features

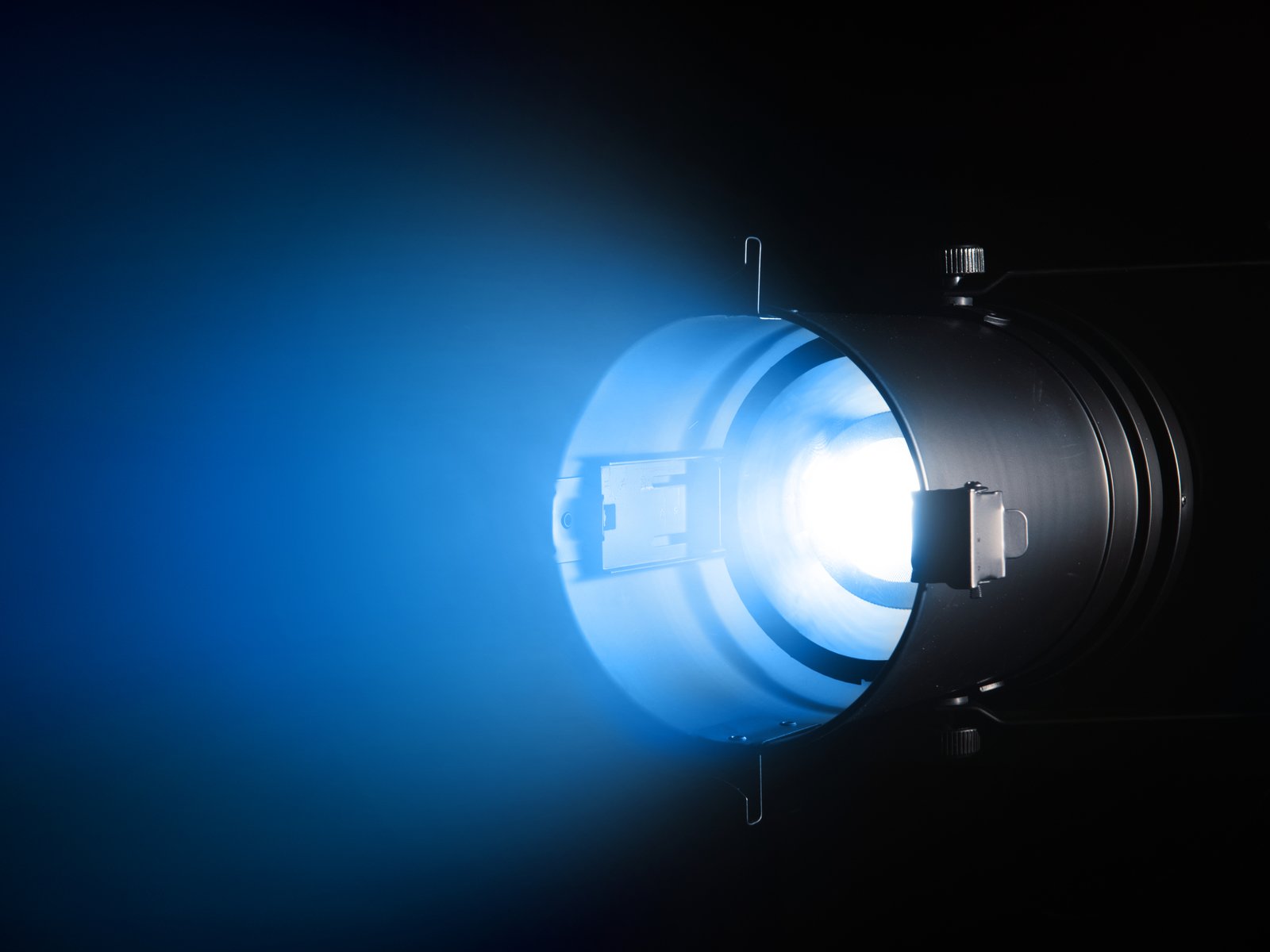

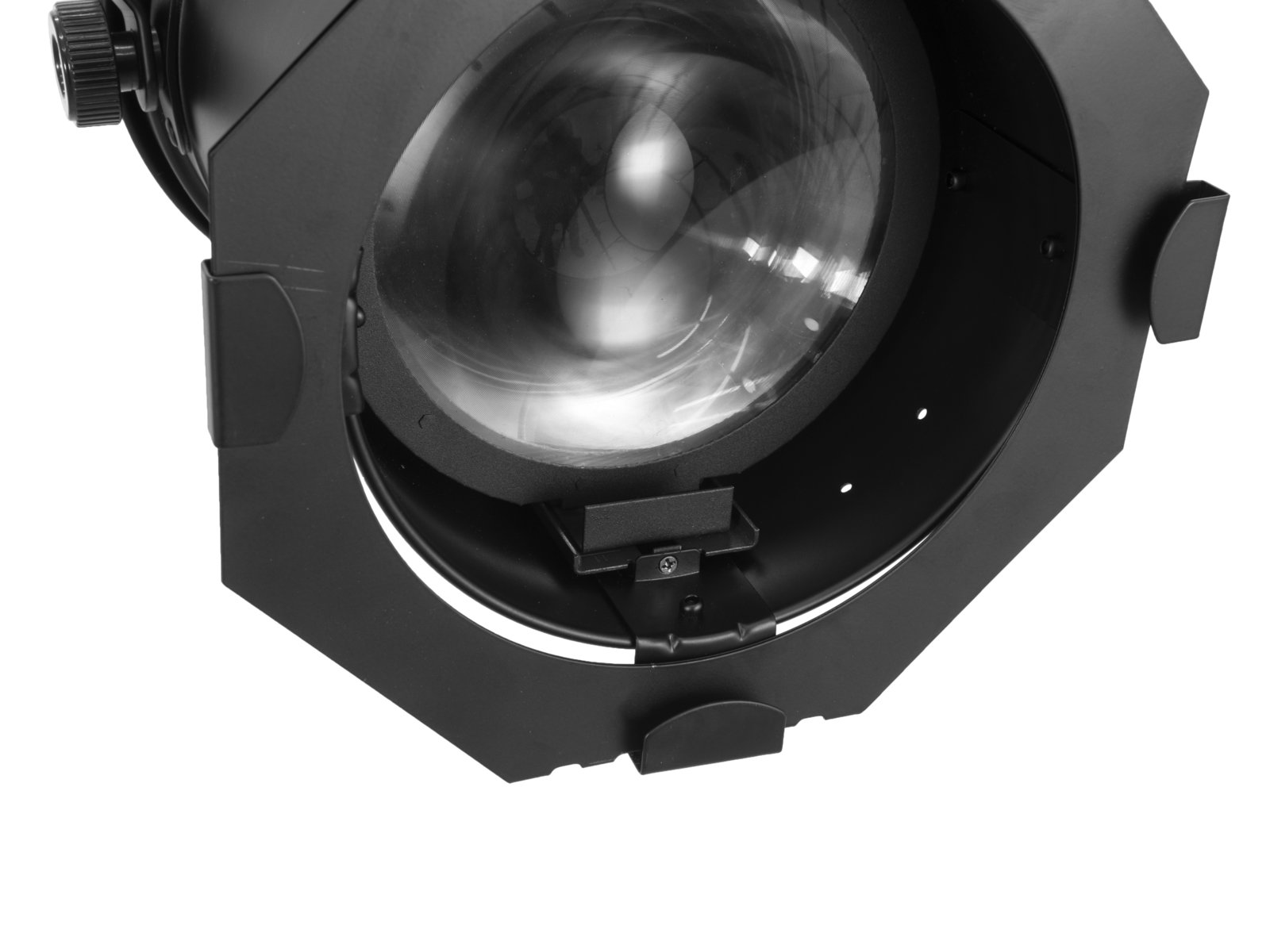

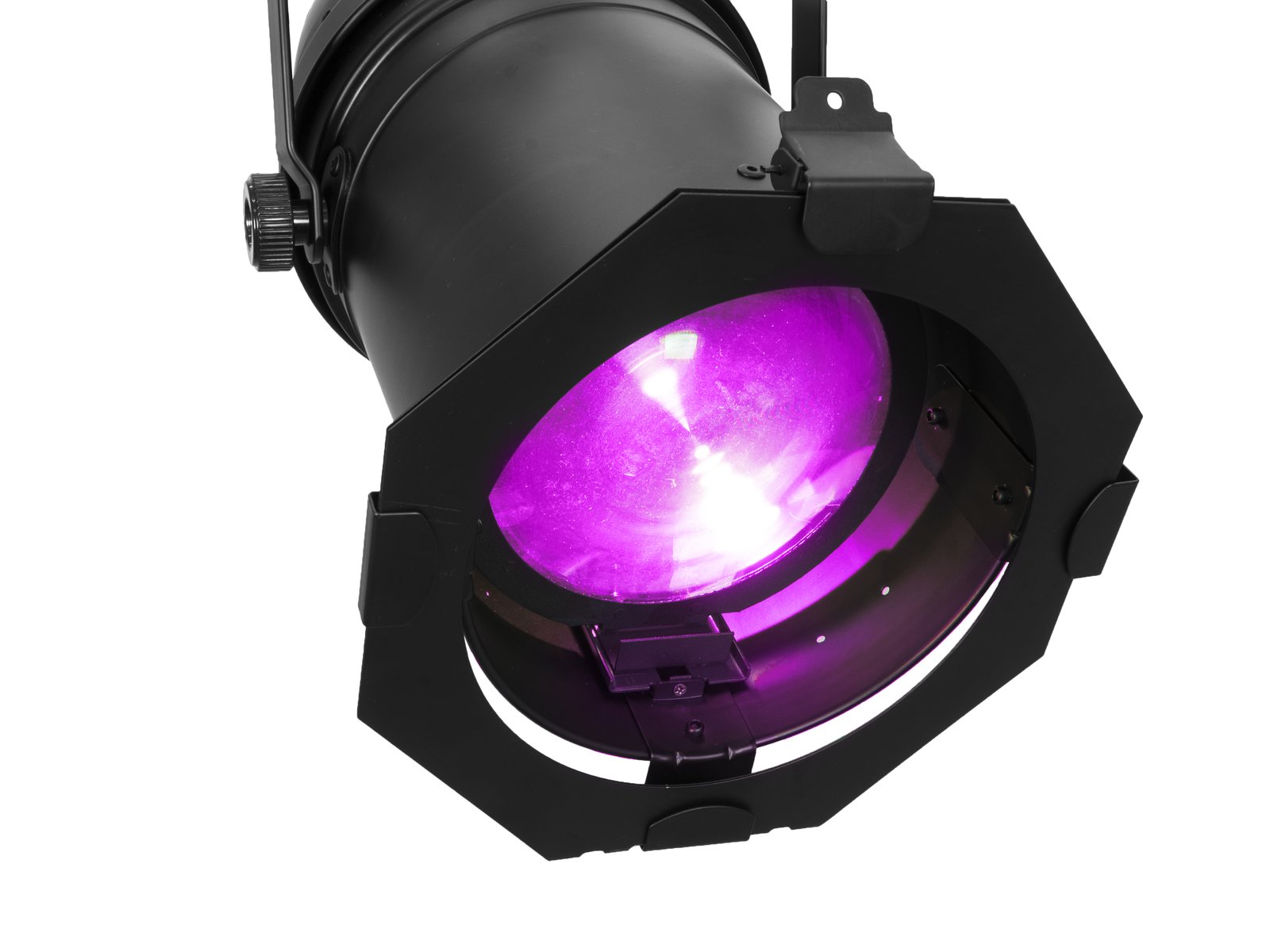

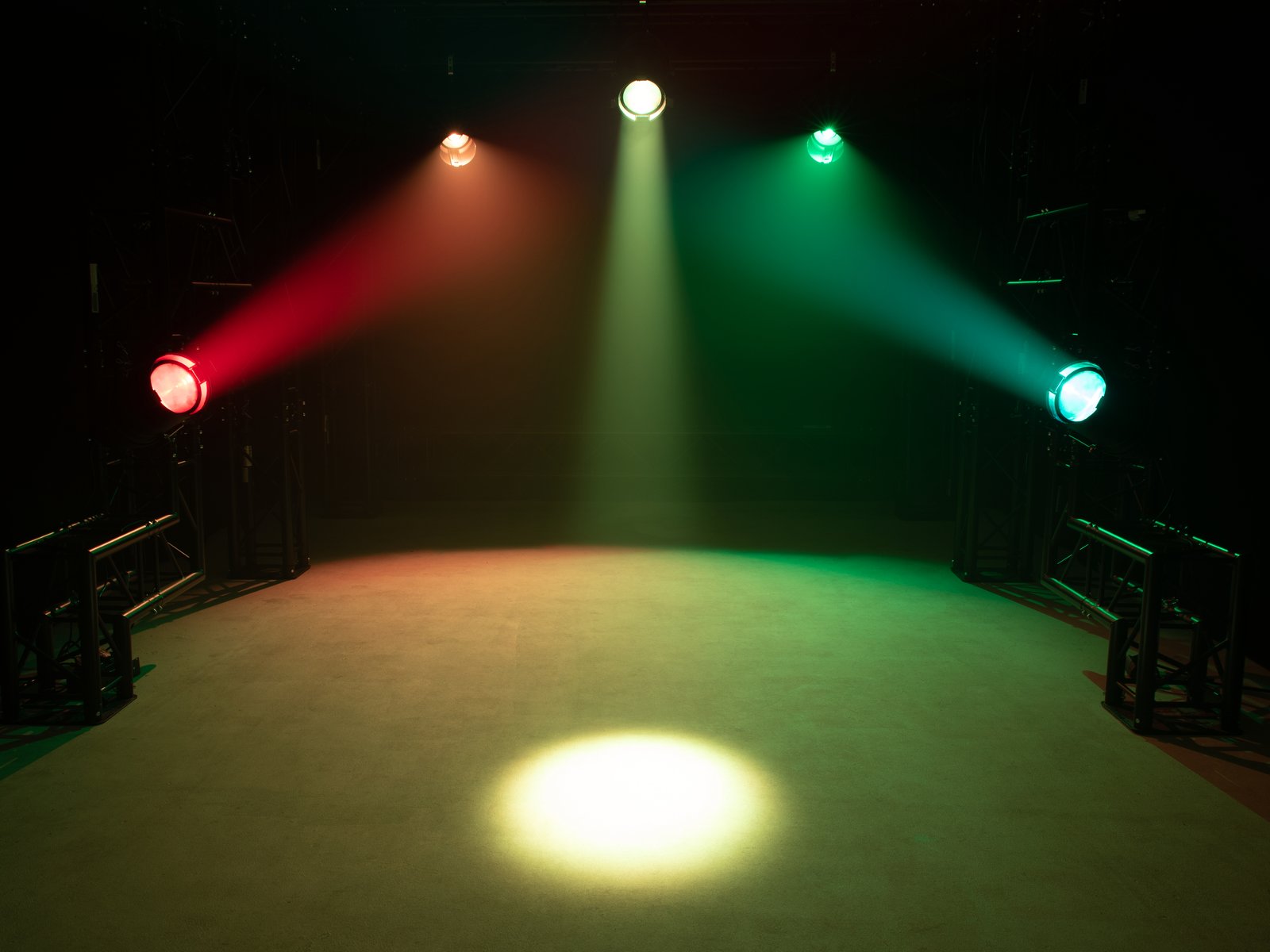

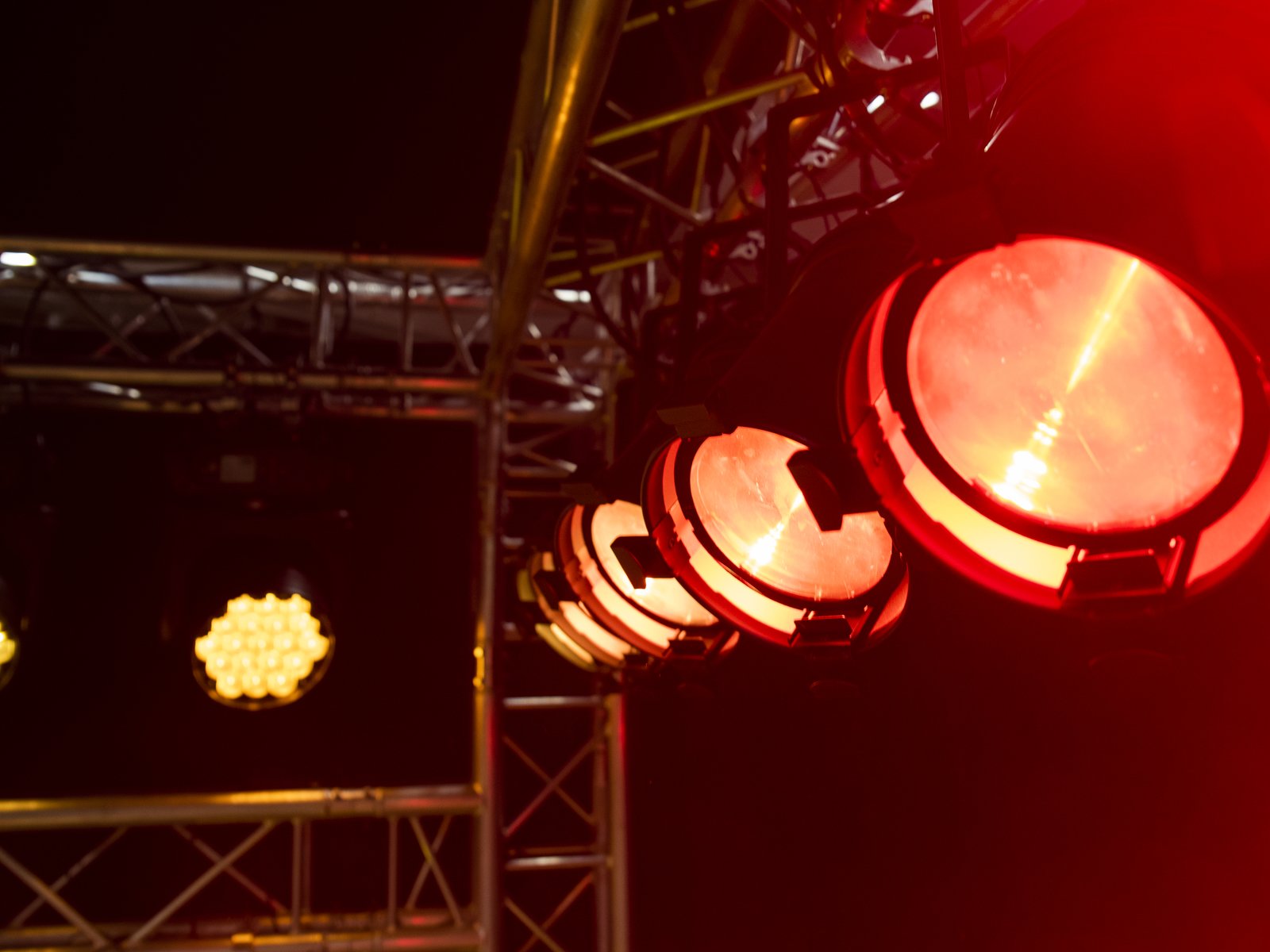

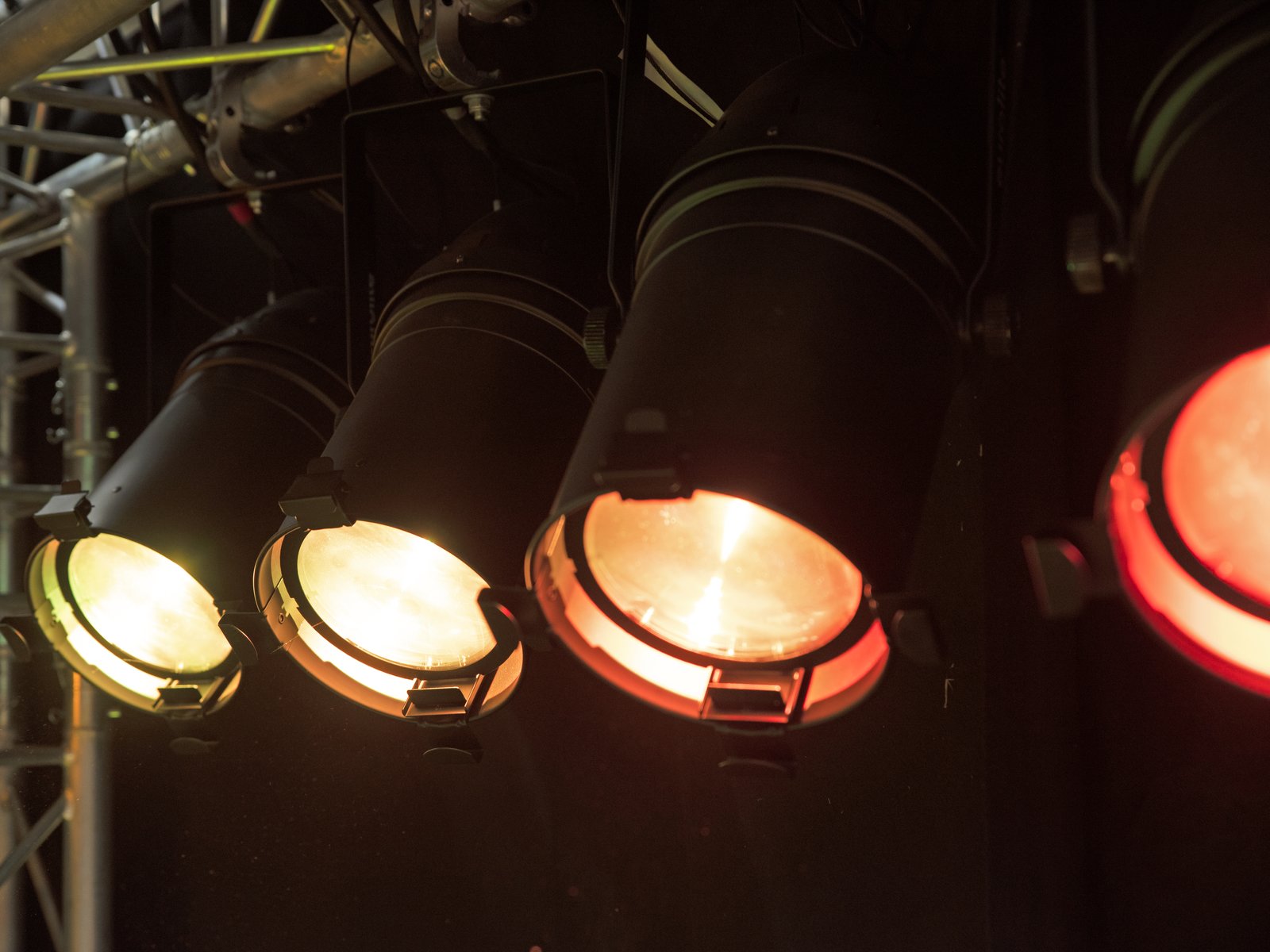

PAR spot with 120 W RGBW LED and manual zoom
- Improved version with more light output than predecessor model
- 1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- 3 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light´J; Light Captain
- Flicker-free
- With a beam angle of 11° – 48°
- With mounting bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; installation; rental; clubs/dancing school
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x XLR cable, 1 x filter frame
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | F 2 A |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 4; 5; 9; 6 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function |
| Preprogrammed in: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light´J; Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 11° – 48° |
| Beam angle (1/2 peak): | 11 – 35° |
| Beam angle (1/10 peak): | 15 – 48° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Dimensions: | Width: 26 cm Depth: 43,5 cm Height: 37,5 cm |
| Weight: | 3,70 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397718003 | 4,75 kg | 49cm x 38cm x 38cm |
