Description
Features

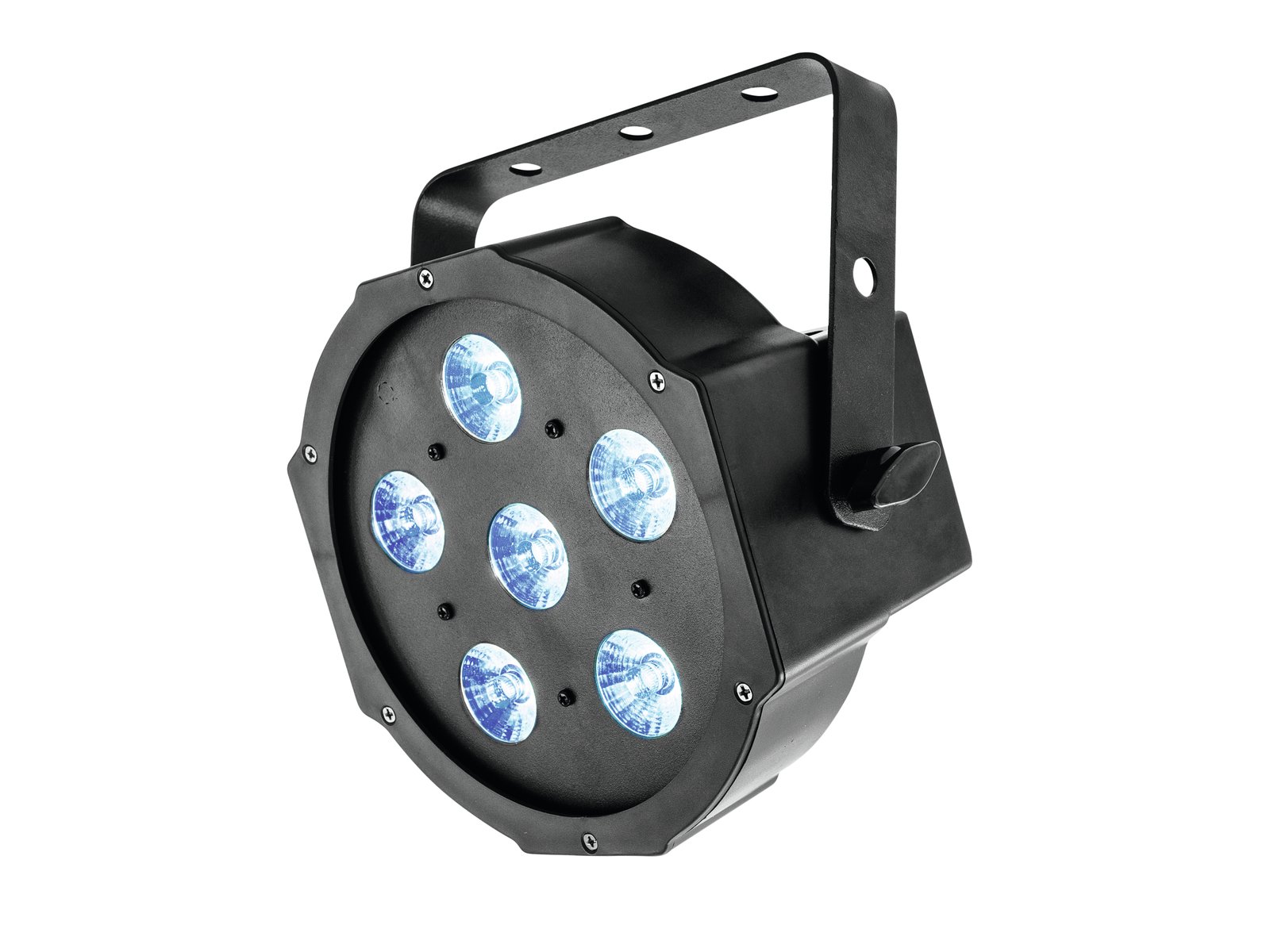

Flat spotlight with 6 x 8 W 3in1 LED with RGB color mixing
- Slim design for space-saving applications
- DMX and power terminals intelligently designed for easy wiring
- 6 powerful LEDs 8 W high-power 3in1 TCL RGB (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- 2 integrated show programs
- Direct color selection for 16 preset colors
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function
- Flicker-free
- With a beam angle of 16°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Preprogrammed in EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- For application areas such as: Clubs/dancing school; party room; small rental
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x user manual
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 6 x 8 W high-power 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 2; 3; 4; 5; 7 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; master/slave function |
| Preprogrammed in: | EASY SHOW 1; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 16° |
| Beam angle (1/2 peak): | 16° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black matte |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Material: | Plastic; ABS Acrylonitrile butadiene styrene |
| Dimensions: | Width: 22 cm Depth: 11 cm Height: 21 cm |
| Weight: | 1,16 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 5 x Ø11mm |
| Material: | Metal, 2 mm |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,2 m |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397612882 | 1,40 kg | 25cm x 24cm x 15cm |
