Description
Features

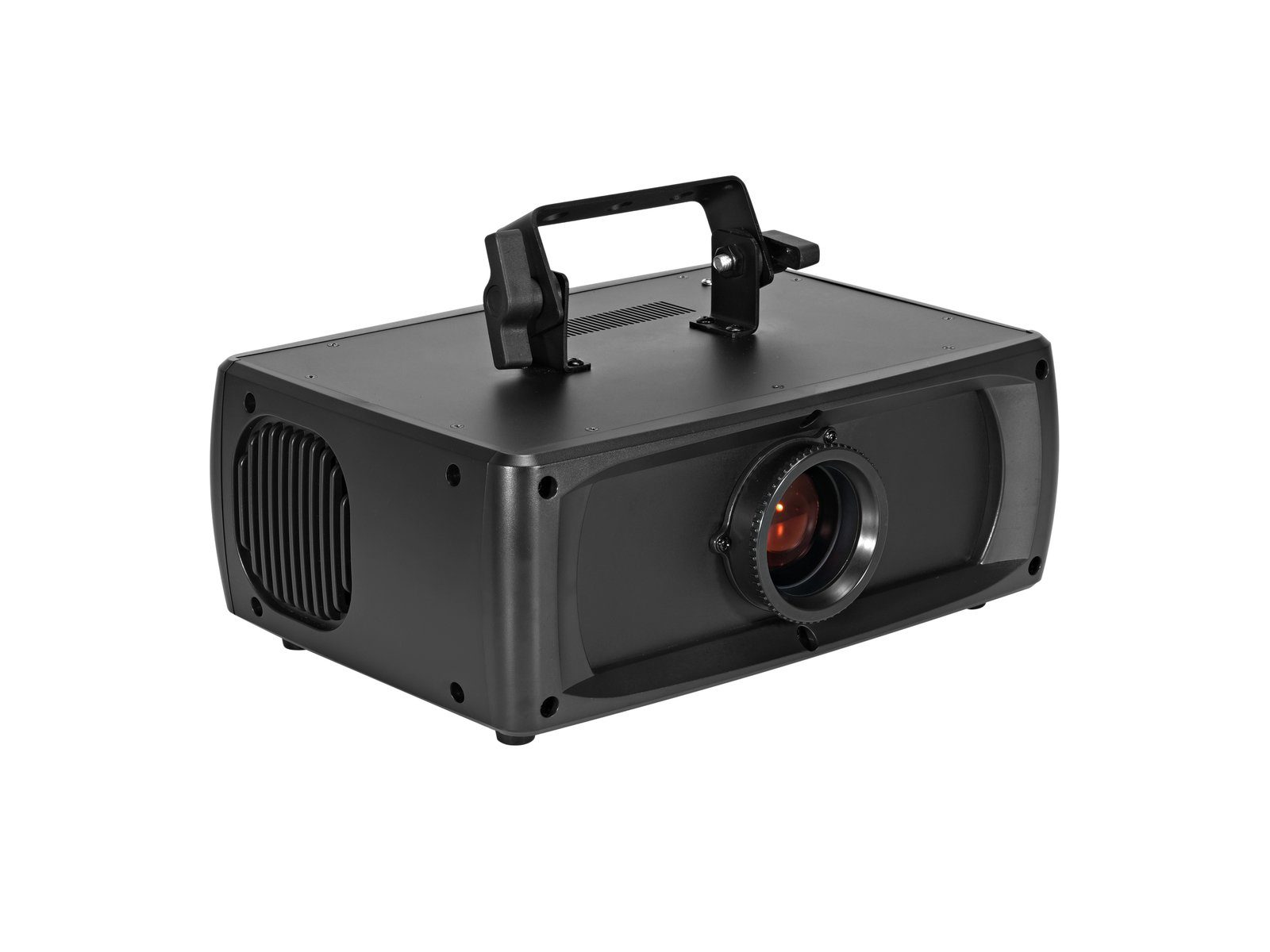

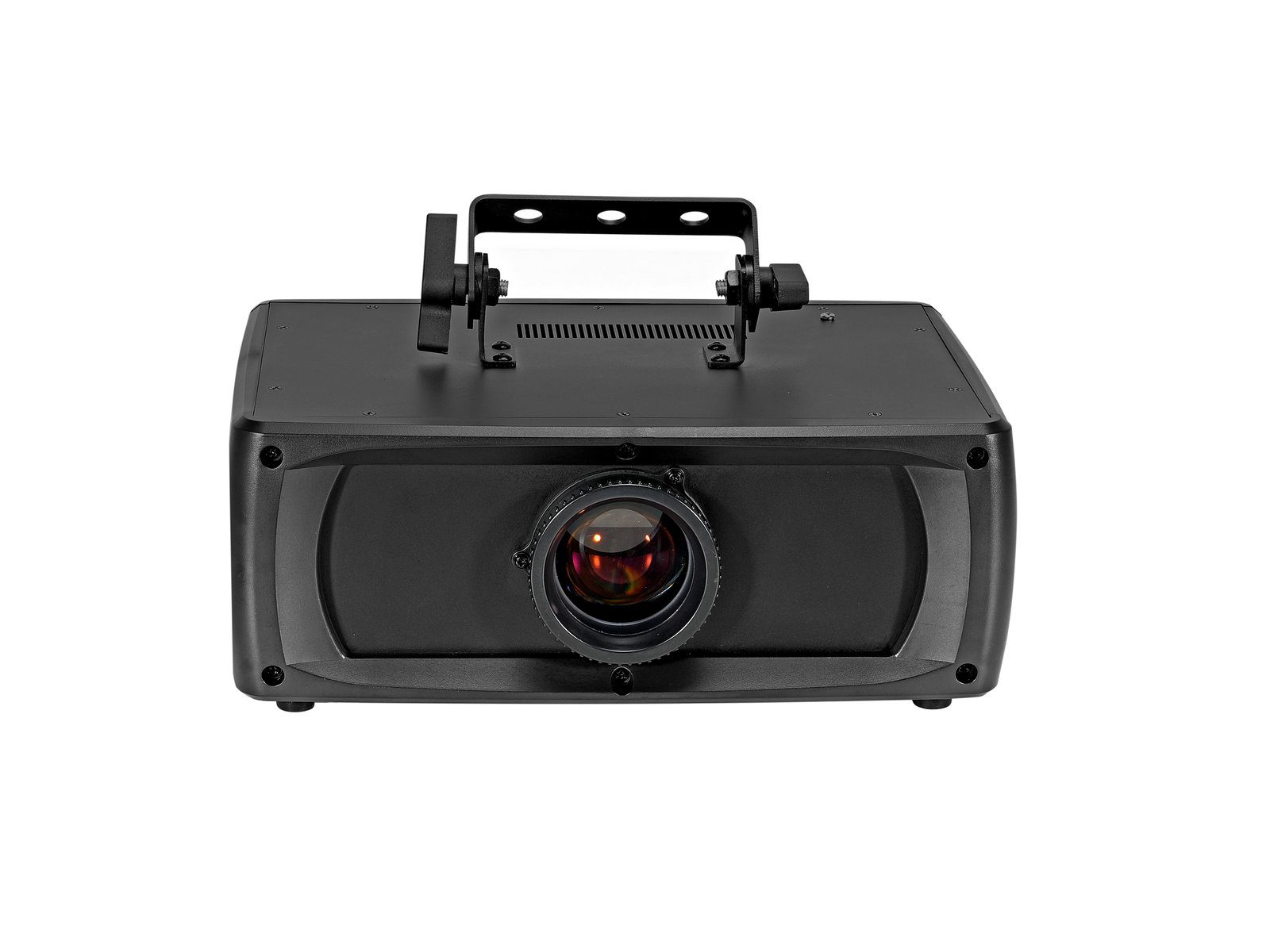

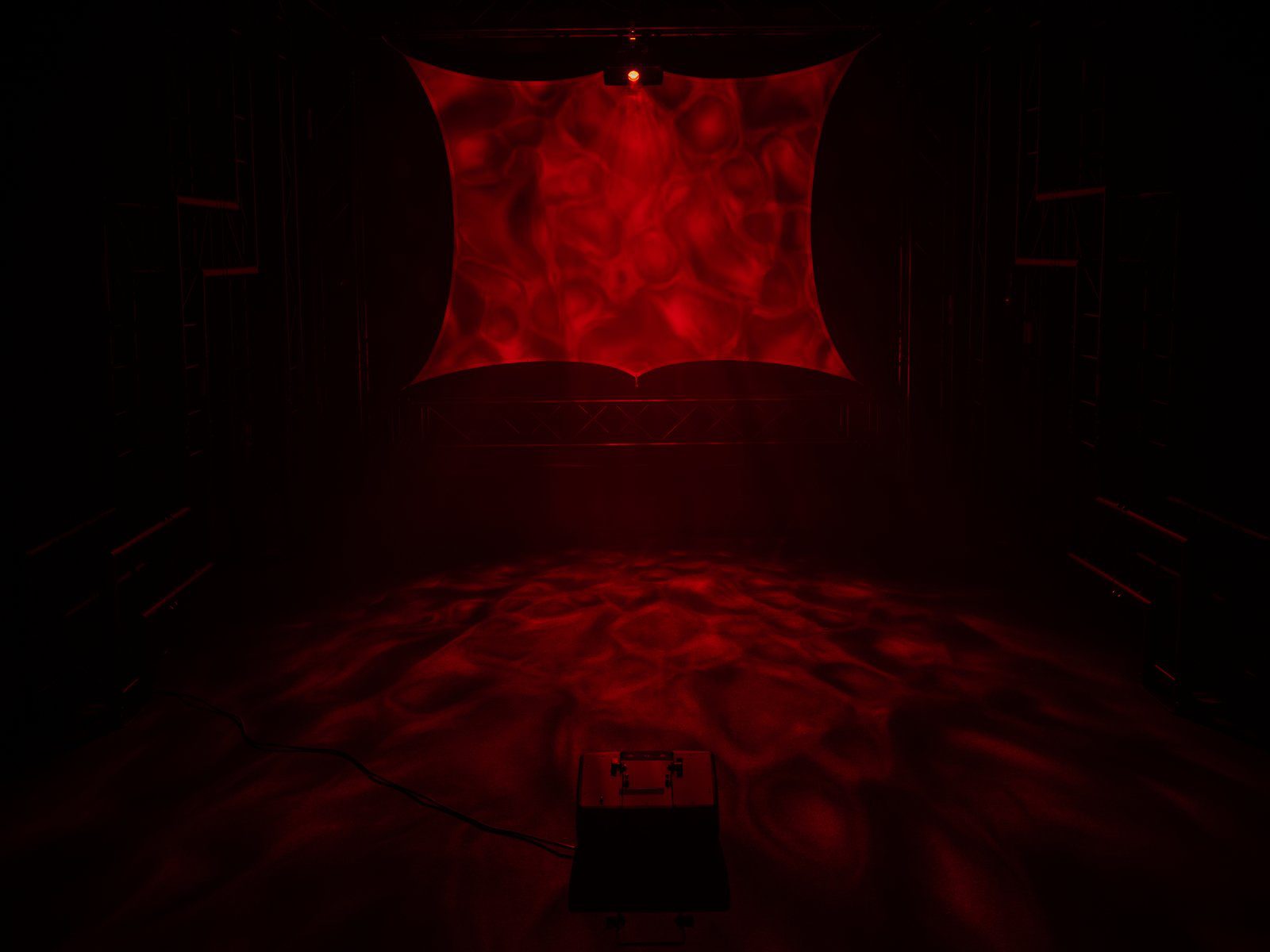

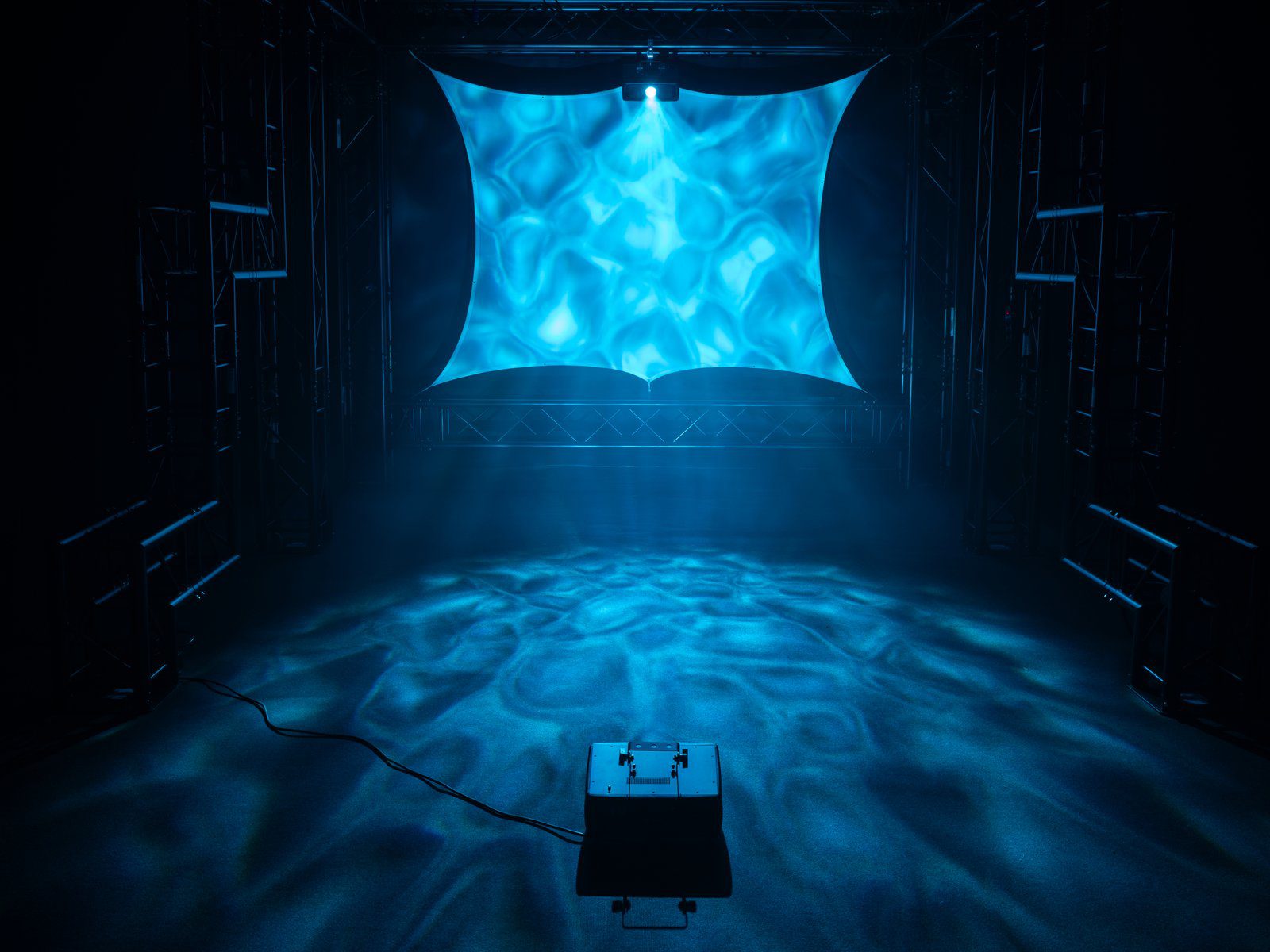

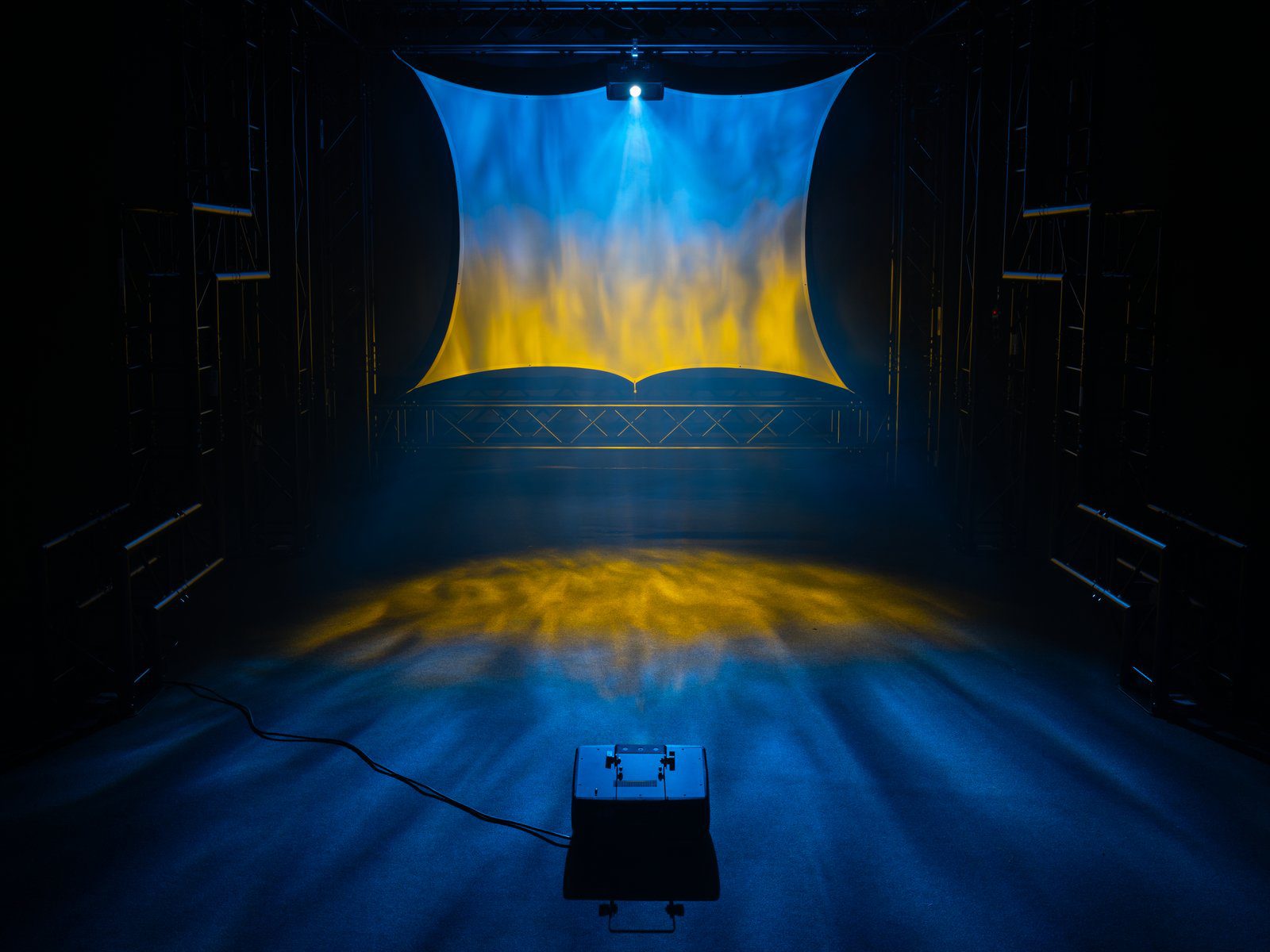

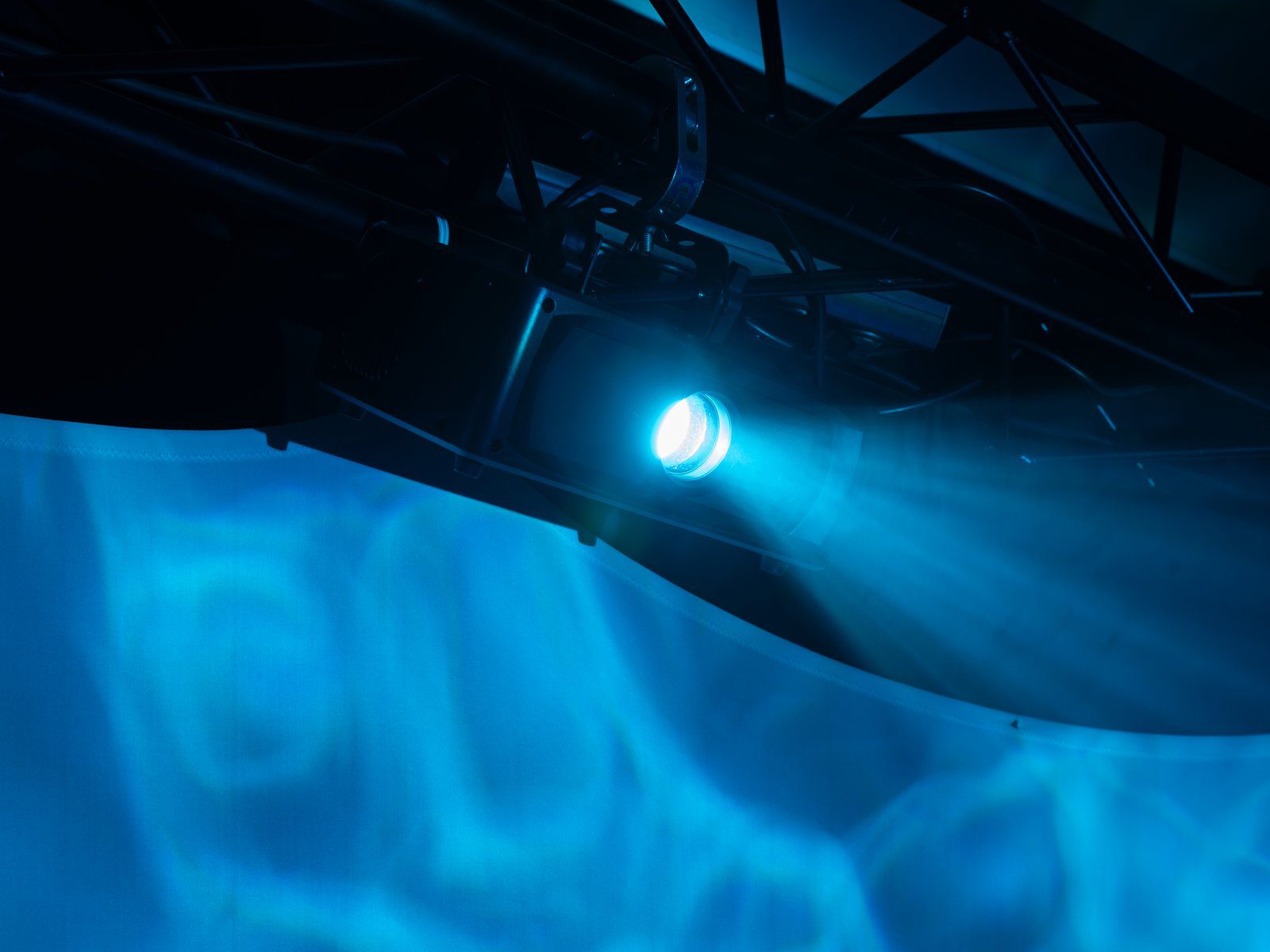

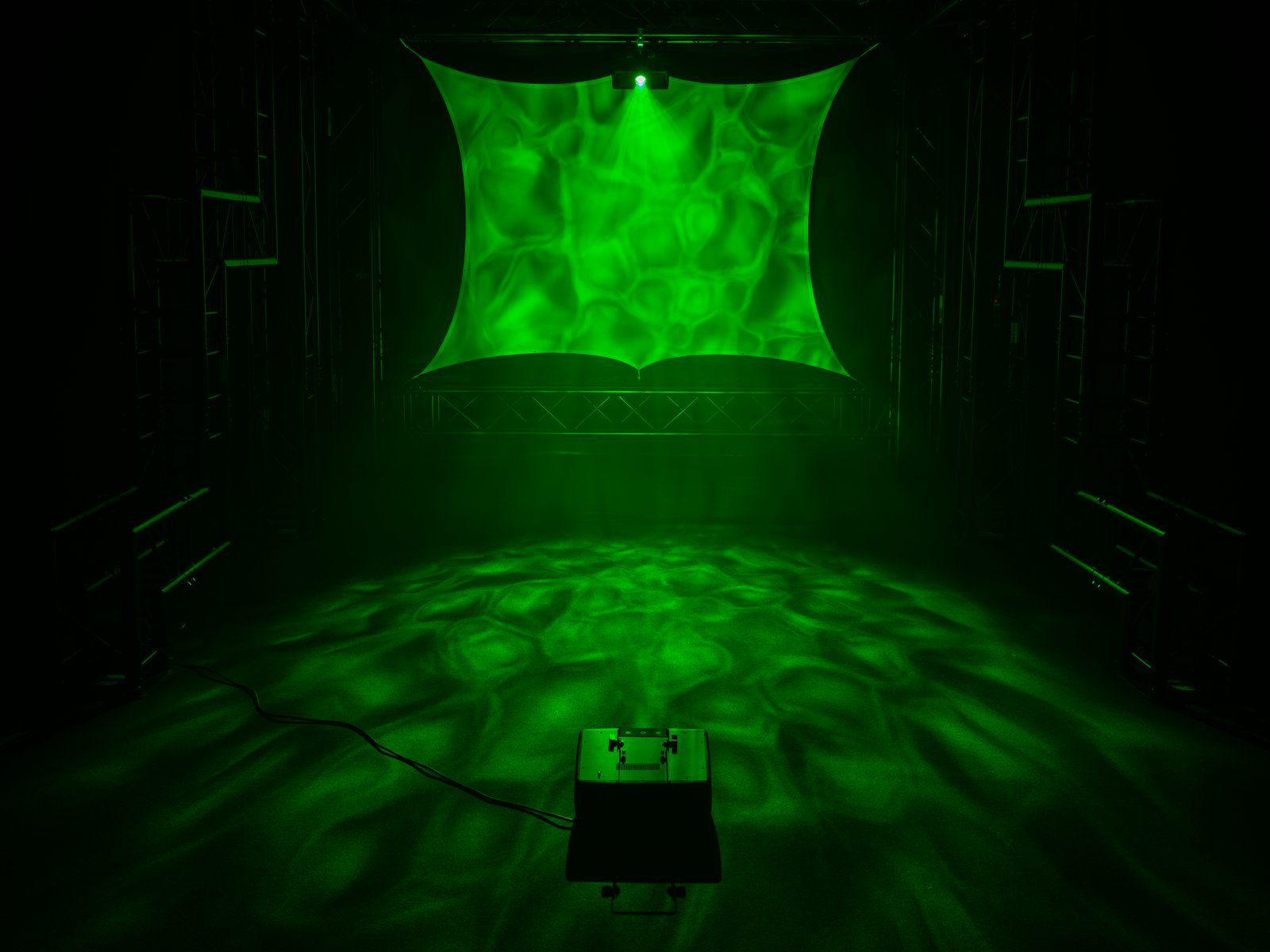

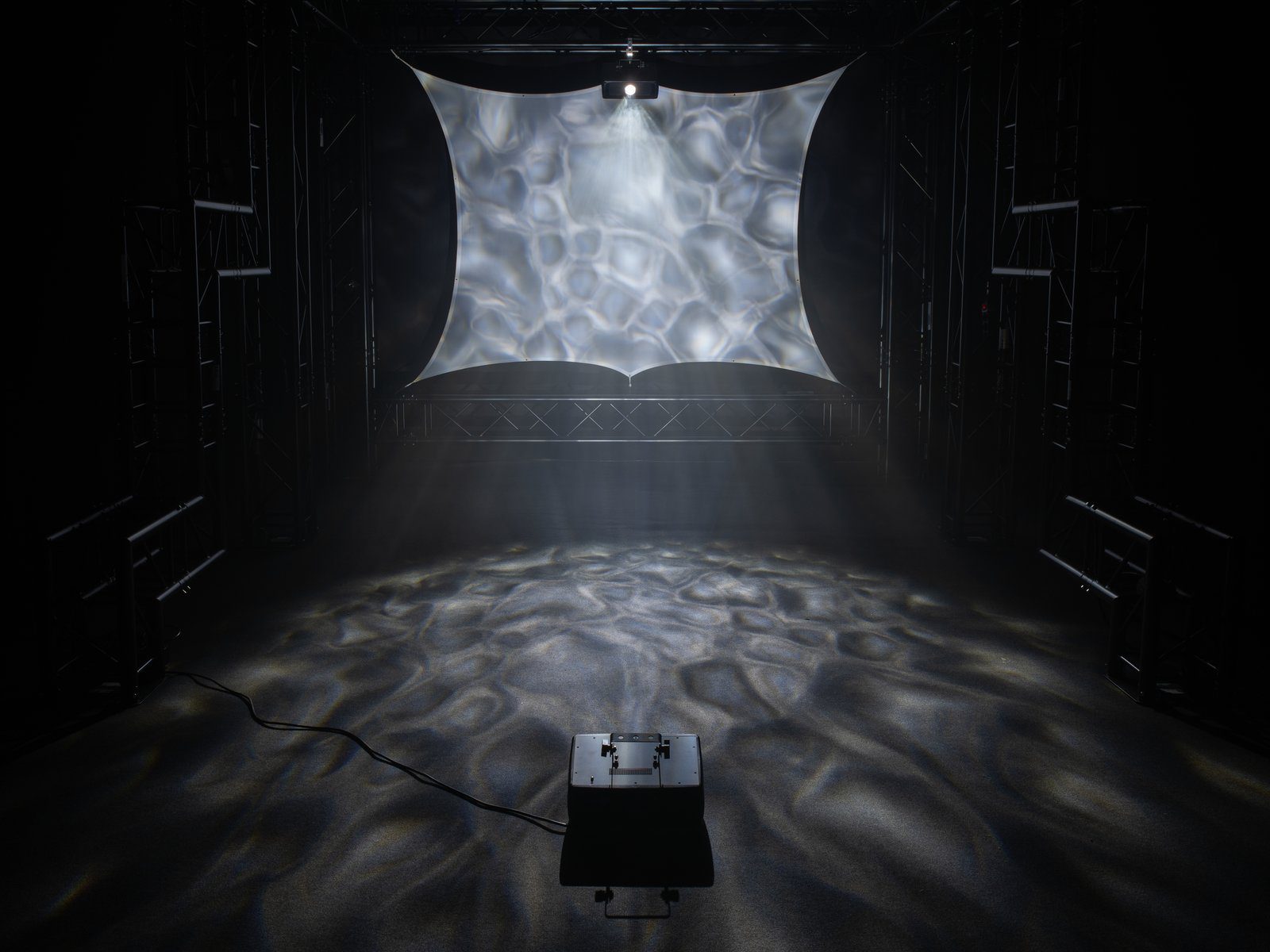

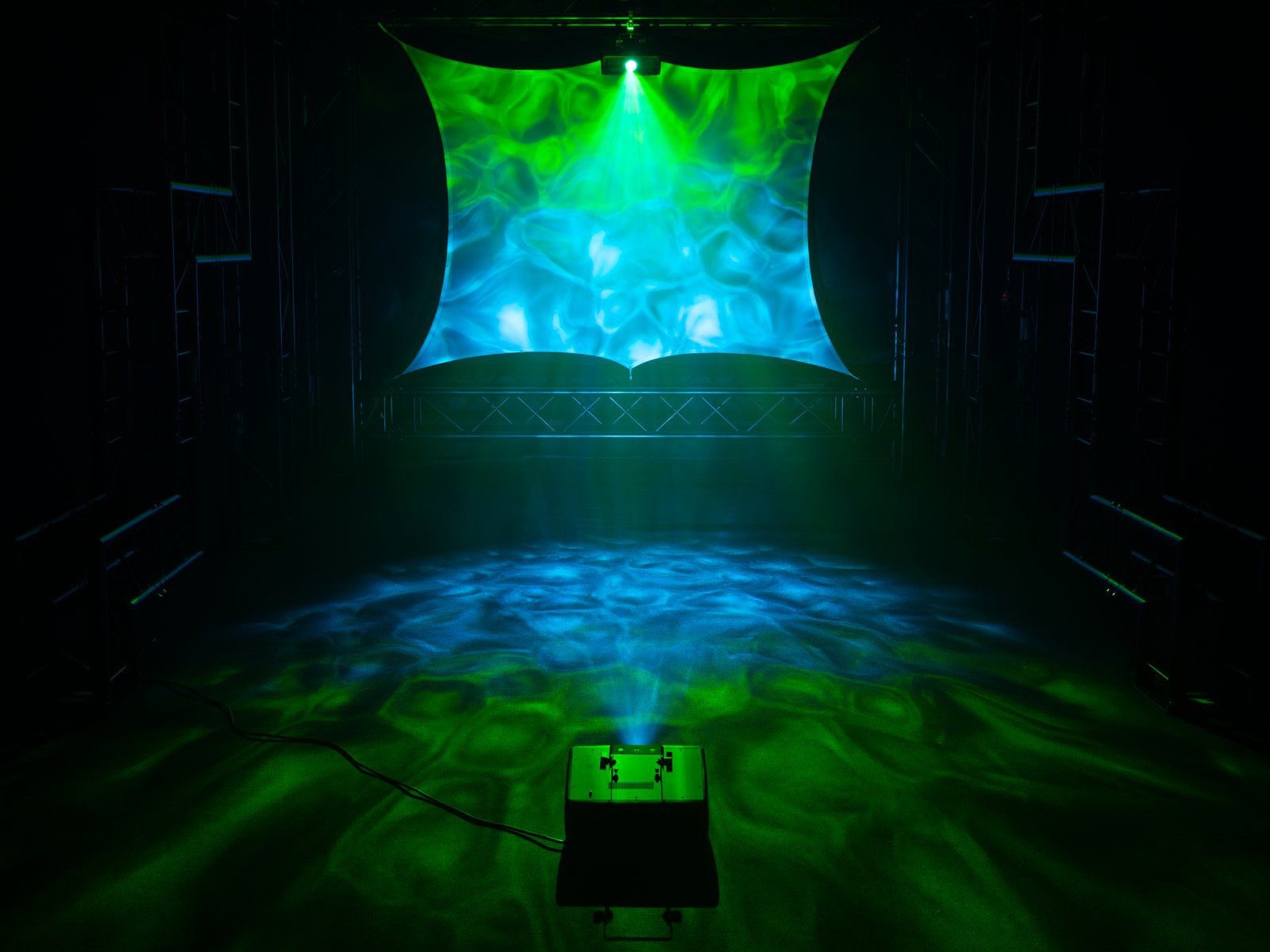

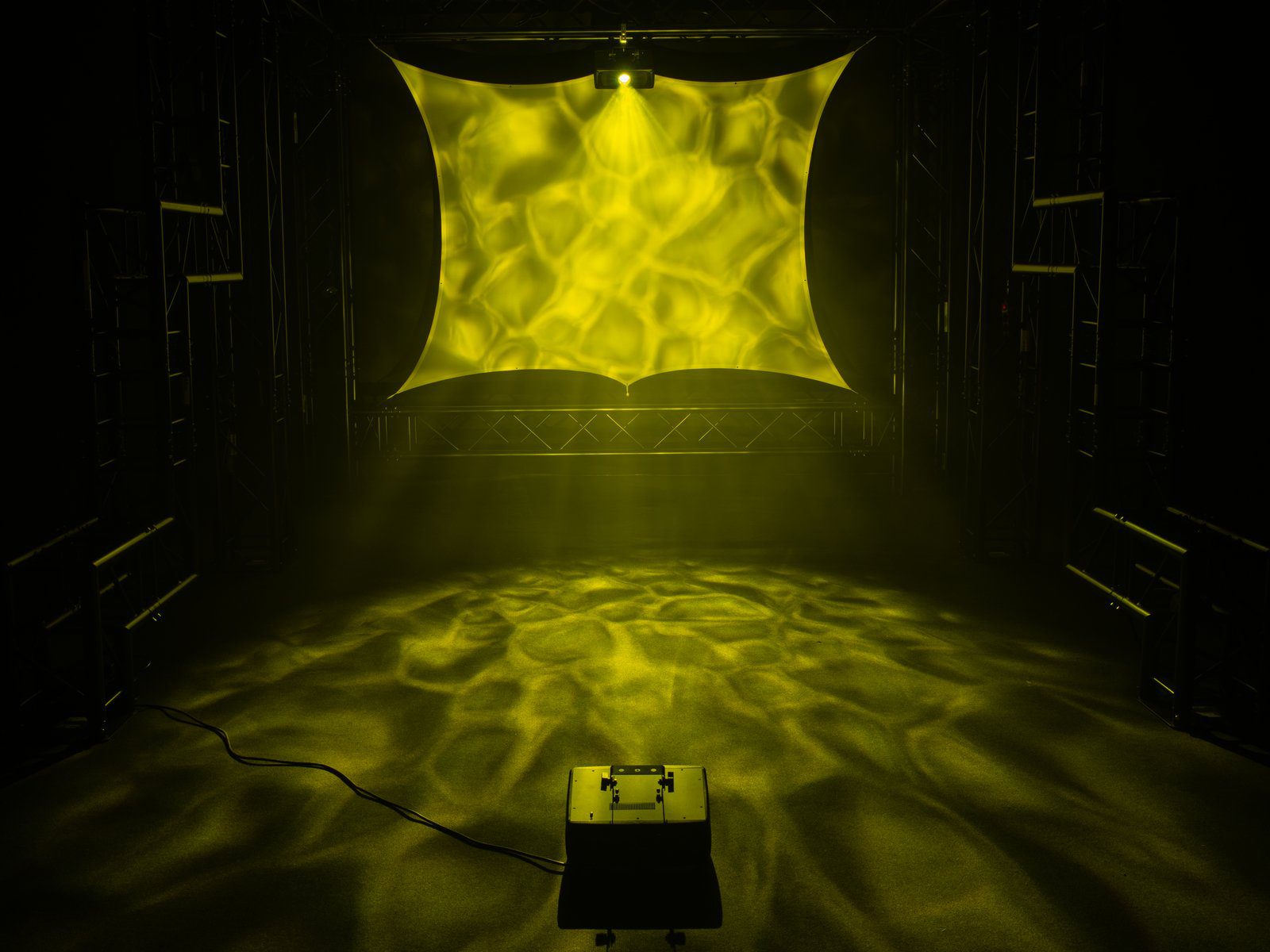

LED projection effect for water reflections with color wheel & DMX
- 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
- Animation wheel; focus manual
- Dimmer; color change adjustable; Rotation speed stepless
- Water effect; strobe effect
- Color wheel with 5 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - 8 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); stand-alone; DMX; master/slave function; sound to light via microphone
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 45°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels
- Application possibility: Suspended; on stand
- 4 rubber feet
- Preprogrammed in Light´J; Light Captain
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

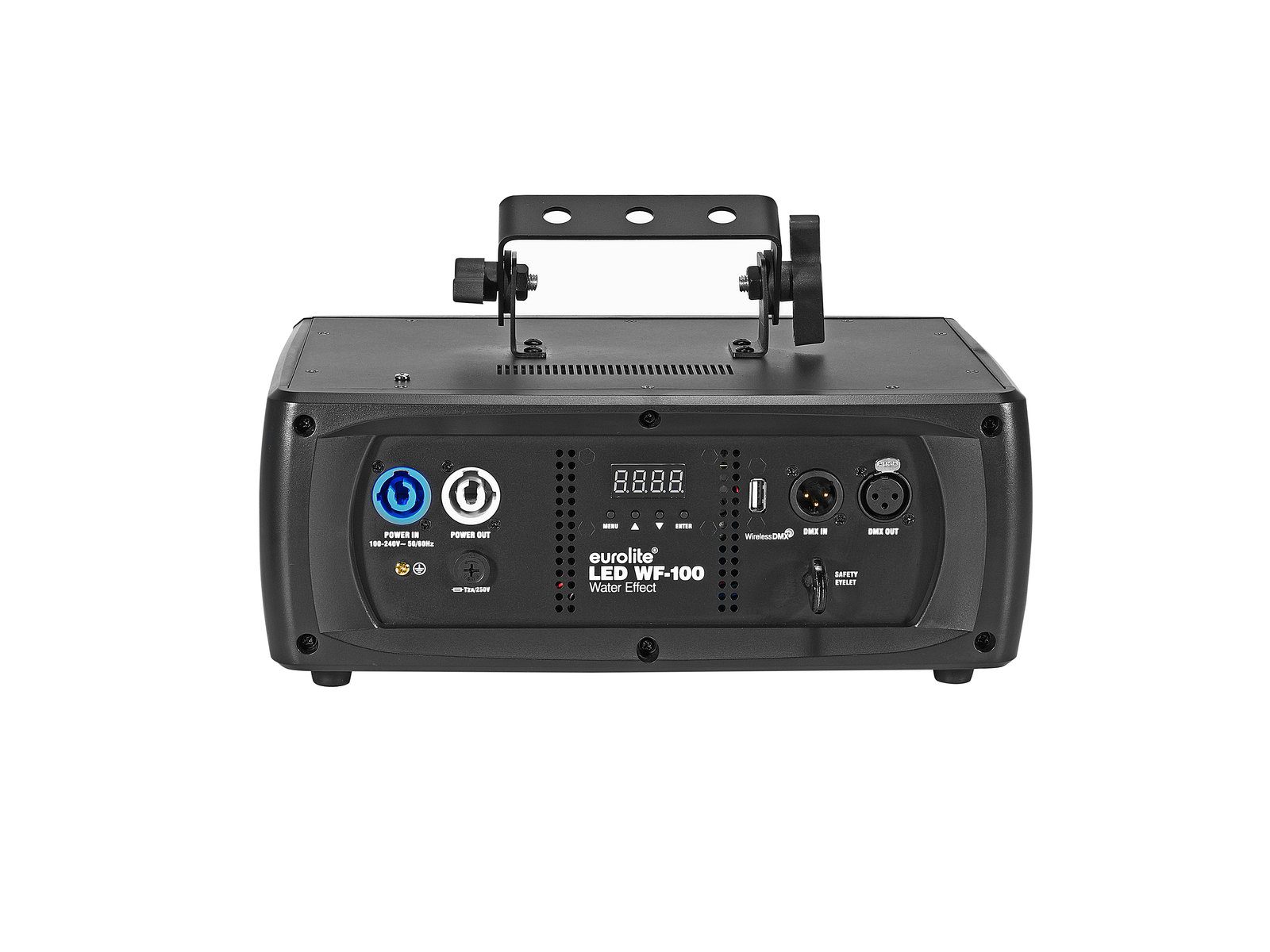

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | 1,45 m |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 100 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 0 – 30 Hz |
| Equipment: | Animation wheel; focus manual |
| Color generation: | Color wheel with 5 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| DMX channels: | 5 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |

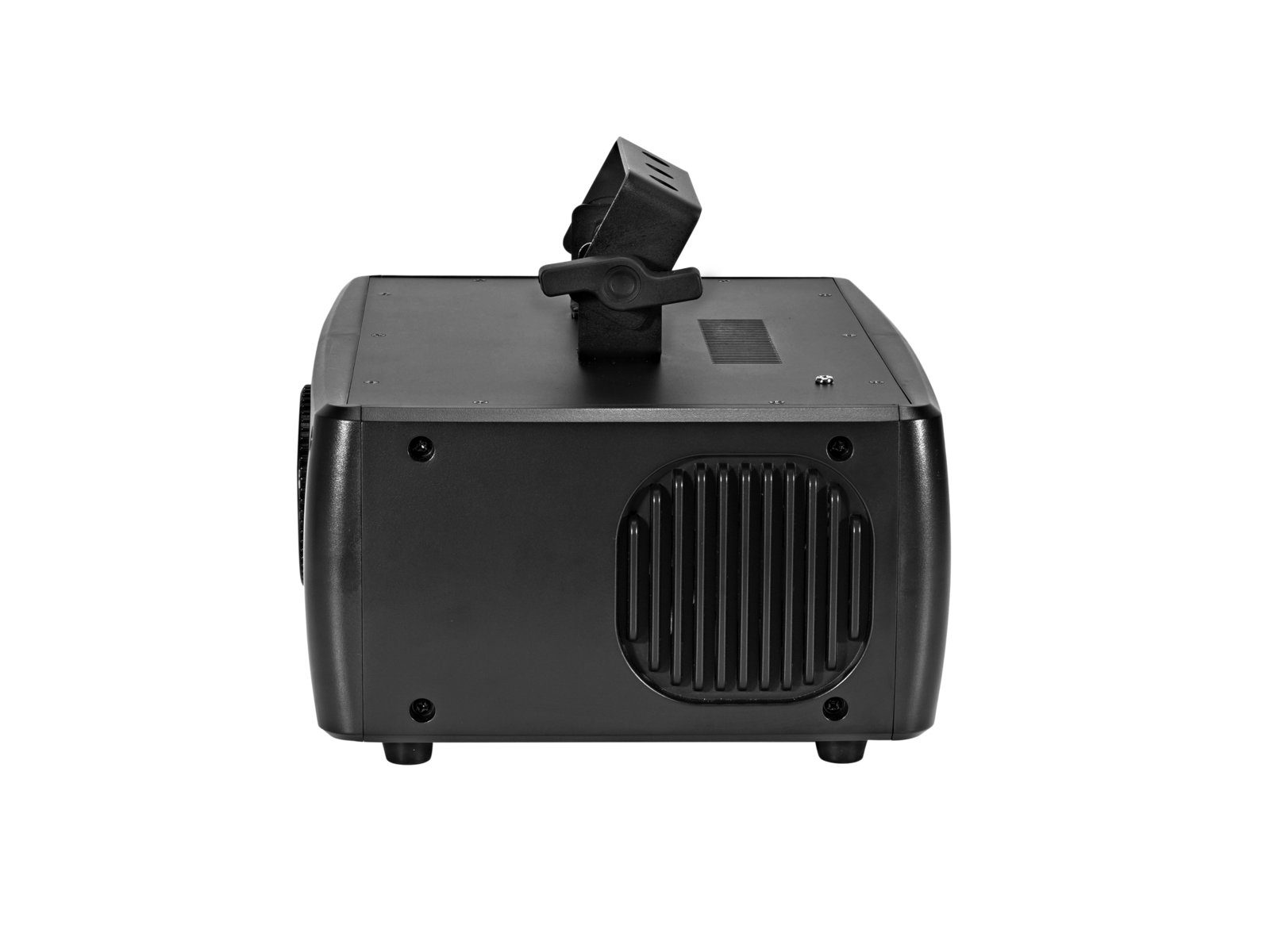

| Cooling: | 3 x temperature-controlled fan |
| Control: | QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); stand-alone; DMX; master/slave function; sound to light via microphone |
| Preprogrammed in: | Light´J; Light Captain |
| Projection: | Flicker-free |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 45° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| USB port: | Type A |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 3 x Ø12mm |
| Material: | Metal |
| Dimensions: | Width: 32,0 cm Depth: 23,5 cm Height: 19,5 cm |
| Weight: | 4,75 kg |
| Noise classification: | Class 2 (slight noise) depending on mode used |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397737646 | 5,50 kg | 41cm x 33cm x 22cm |
