Description
Features

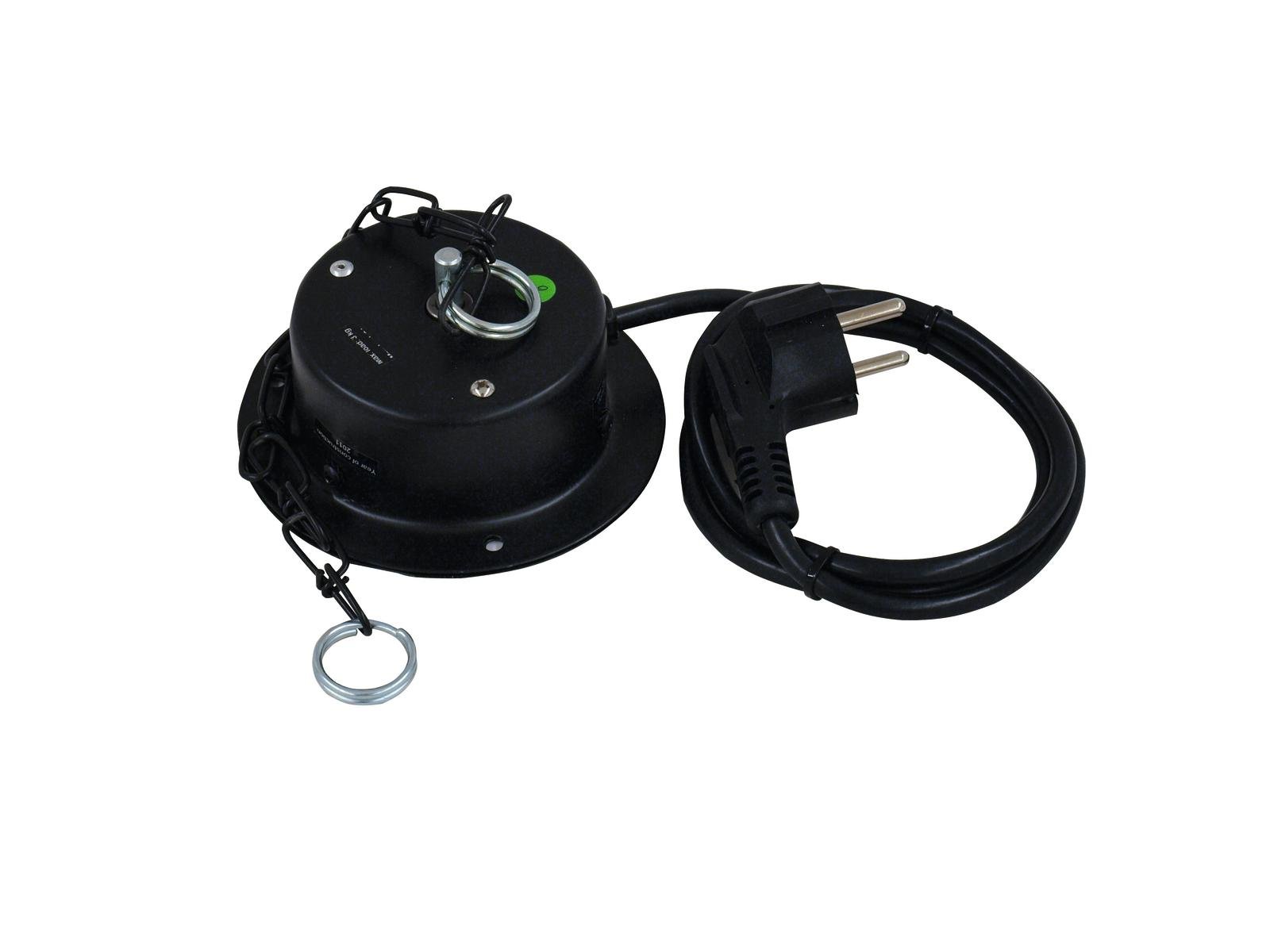

Motor for mirror balls up to 30 cm with 3 RPM
- The maximum load always means the mirror ball weight including chains and the fixation material
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
- For application areas such as: Clubs/dancing school
Package contents
- 1 x motor, 1 x chain, 2 x ring, 3 x mounting material, 3 x screw, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 0,8 m |
| Speed: | 3 RPM |
| Maximum load: | 3 kg |
| Max. mirror ball diameter: | 30 cm (EUROLITE) |
| Housing color: | Black matte |
| Diameter mounting holes: | 3 x Ø5mm |
| Material: | Metal |
| Dimensions: | Height: 5,8 cm Diameter: Ø 10,8 cm |
| Weight: | 370 g |
| Chain | |
| Material: | Metal, 2 mm |
| Color: | Black |
| Dimensions: | Length: 30 cm |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397351705 | 0,41 kg | 12cm x 6,5cm x 13,5cm |
