Description
Features

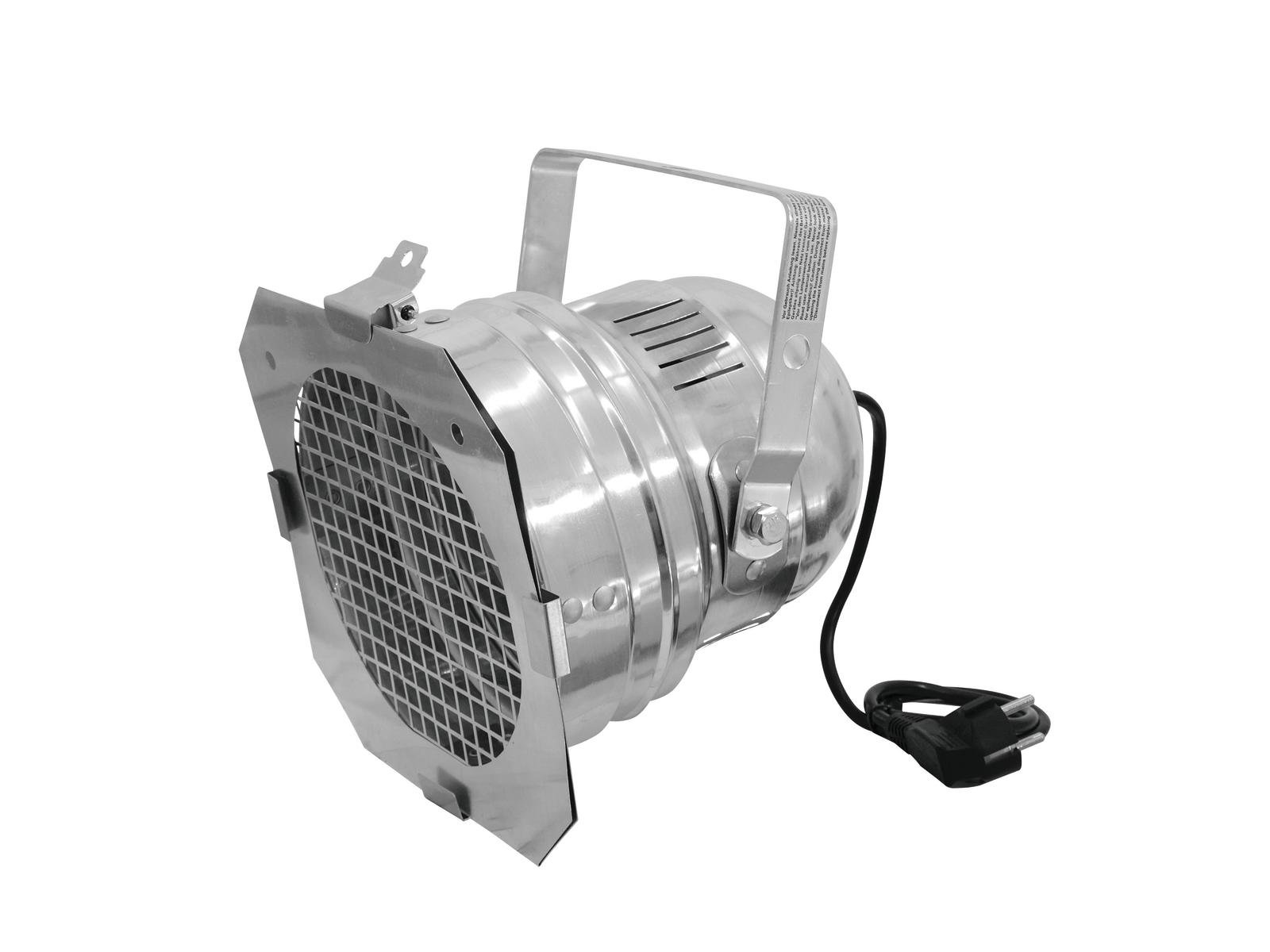

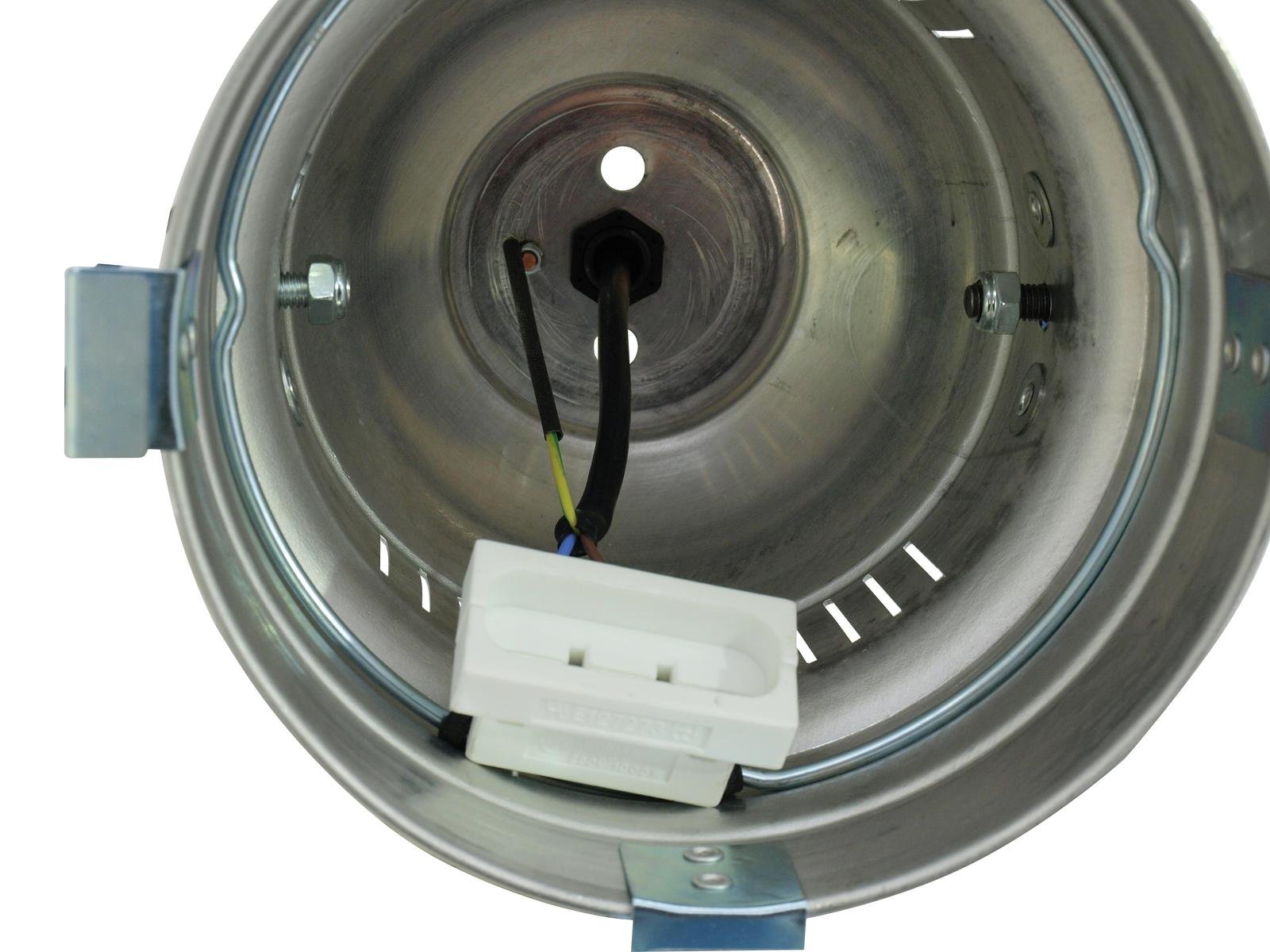

PAR-56 housing with GX16d socket (with plug + cable)
- Heat-resistant fixing screw
- The screw is protected against turning it too far out
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Strong cable tension relief
- Control via plug and play
- With mounting bracket
- For PAR 56
Package contents
- 1 x spotlight, 1 x filter frame, 1 x lamp clamping ring, 1 x user manual
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 500 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | Max. 230 V/500 W PAR-56 |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,8 m |
| Base: | GX16d |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Construction: | PAR-56 |
| Housing color: | Silver |
| Attachment system: | Mounting bracket |
| Material: | Aluminum |
| Dimensions: | Length: 26 cm Width: 23,5 cm Height: 22 cm |
| Weight: | 850 g |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø12mm |
| Material: | Metal, 2 mm |
| Filter frame | |
| Diameter mounting holes: | 4 x Ø8mm |
| Material: | Aluminum, 0,5 mm |
| Dimensions: | Width: 21,5 cm Height: 21,5 cm Diameter: Ø 17,1 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397352351 | 1,00 kg | 20,5cm x 20,5cm x 27cm |
