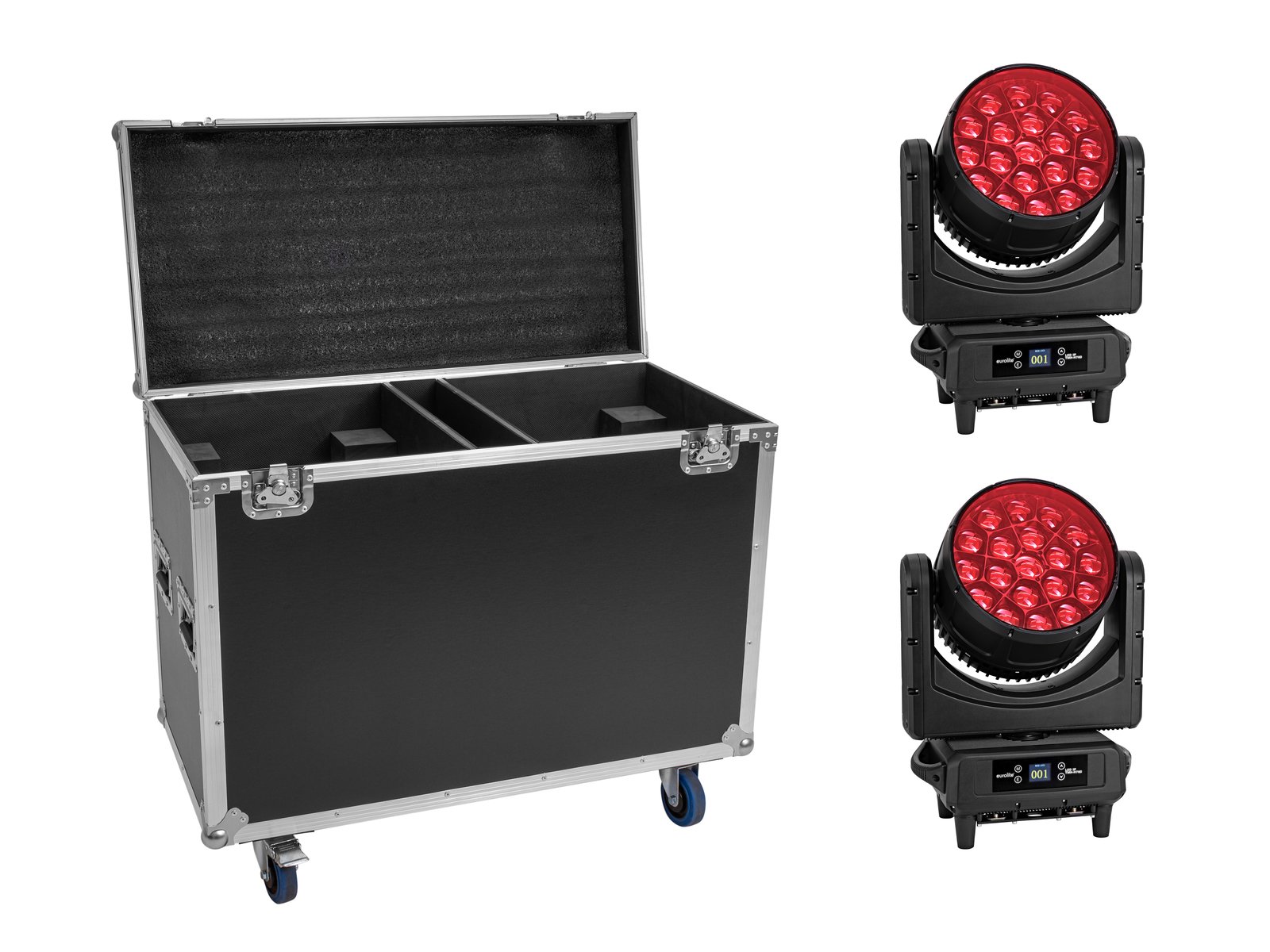

EUROLITE LED IP TMH-H760 Beam/Wash/Flower Effect
Powerful weather-proof moving washlight with 19x 40W RGBW LEDs, rotating flower effect and pixel control
- 19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately - Positioning within 540° PAN, 210° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor driven rotating; lens rotation
- Flower effect; strobe effect; wash effect
- With a beam angle of 2° – 30°
- With bracket with hinged hooks
- Multicolor LCD display
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the base
- For application areas such as: Stage; rental
- Application possibility: Standing; suspended
- Color blend stepless; colors preset; pulse-width modulation
- Control via stand-alone; DMX; master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- 2 Rugged carrying handles
- 4 rubber feet
- Mains input and output for power linking up to 3 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- Very quiet working noise
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x XLR cable

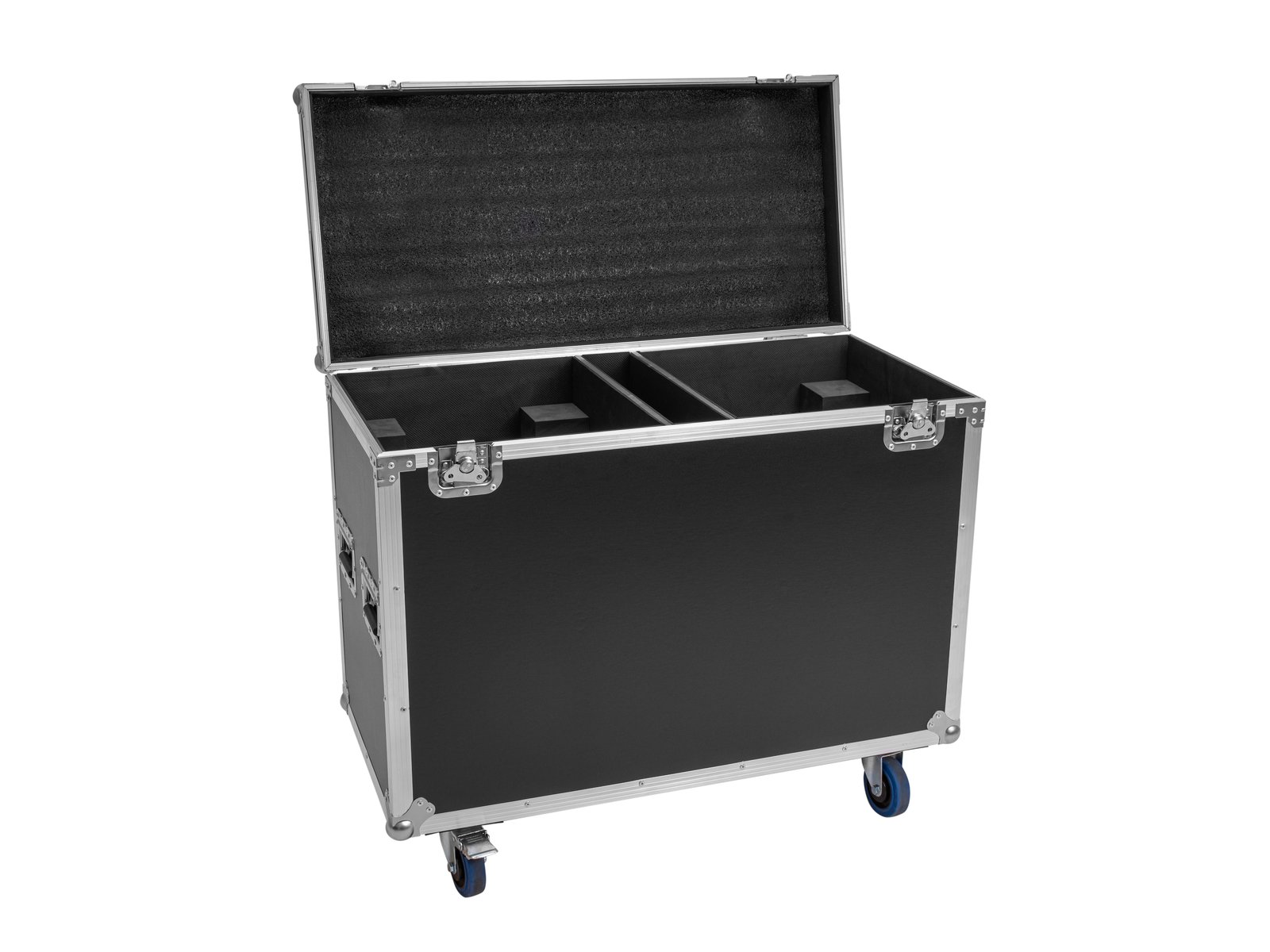

ROADINGER Flightcase 2x IP TMH-H760 with wheels
Trunk case with castors
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks with shut-off function
- 4 castors with 2 locking brakes
- 4 built-in stacking trays in the cover
- With 2 Device compartments
- With 1 accessory compartment
- For further information about this product, please refer to the Data Sheet under “Downloads”
Technical specifications
| Weight: | 77,50 kg |
| EUROLITE LED IP TMH-H760 Beam/Wash/Flower Effect | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 780 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) power supply cord with safety plug |
| Cable construction: | 3 x 1,5 mm² H07RN-F |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | 5 x 20 mm, T 8 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 19 x 40 W SMD 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 210° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 1 – 20 Hz |
| Equipment: | Zoom motor driven rotating; lens rotation |
| DMX channels: | 18; 30; 94 |
| DMX input: | 3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP |
| Cooling: | 2 x temperature-controlled fan at the Head 2 x cooling fan at the base |
| Control: | Stand-alone; DMX; master/slave function |
| Projection: | Flicker-free |
| DMX fail mode: | Hold; zero values |
| Beam angle: | 2° – 30° |
| Beam angle (1/2 peak): | 2 – 16° |
| Beam angle (1/10 peak): | 7 – 30° |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 13602 lx, 3m: 11354 lx, 6m: 4333 lx Narrow green (G) 1m: 31916 lx, 3m: 29390 lx, 6m: 9454 lx Narrow blue (B) 1m: 3891 lx, 3m: 3565 lx, 6m: 1777 lx Narrow cold white (CW) 1m: 52981 lx, 3m: 45405 lx, 6m: 14131 lx Narrow all 3m: 78579 lx, 6m: 27552 lx Wide red (R) 1m: 9199 lx, 3m: 1243 lx, 6m: 336 lx Wide green (G) 1m: 19373 lx, 3m: 2700 lx, 6m: 736 lx Wide blue (B) 1m: 2768 lx, 3m: 575 lx, 6m: 163 lx Wide cold white (CW) 1m: 29680 lx, 3m: 4088 lx, 6m: 1109 lx Wide all 1m: 56588 lx, 3m: 8061 lx, 6m: 2192 lx |
| Lamp life: | 10000 h |
| Housing color: | Black |
| Attachment system: | Ø 50 mm 2x bracket with hinged hooks |
| Display type: | Multicolor LCD display |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum casting |
| Dimensions: | Width: 41,0 cm Depth: 24 cm Height: 55,5 cm |
| Weight: | 24,60 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used; class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 2x IP TMH-H760 with wheels | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover |
| Material: | Plywood multi-layer glued |
| Color: | Black, laminated |
| Device compartment: | 39 cm x 42 cm x 61 cm |
| Accessory compartment: | 8 cm x 42 cm x 24 cm |
| Inside dimensions: | 90 cm x 42 cm x 61 cm |
| Dimensions: | Width: 95 cm Depth: 47 cm Height: 80 cm |
| Weight: | 28,30 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397684117 |
