Description
Features

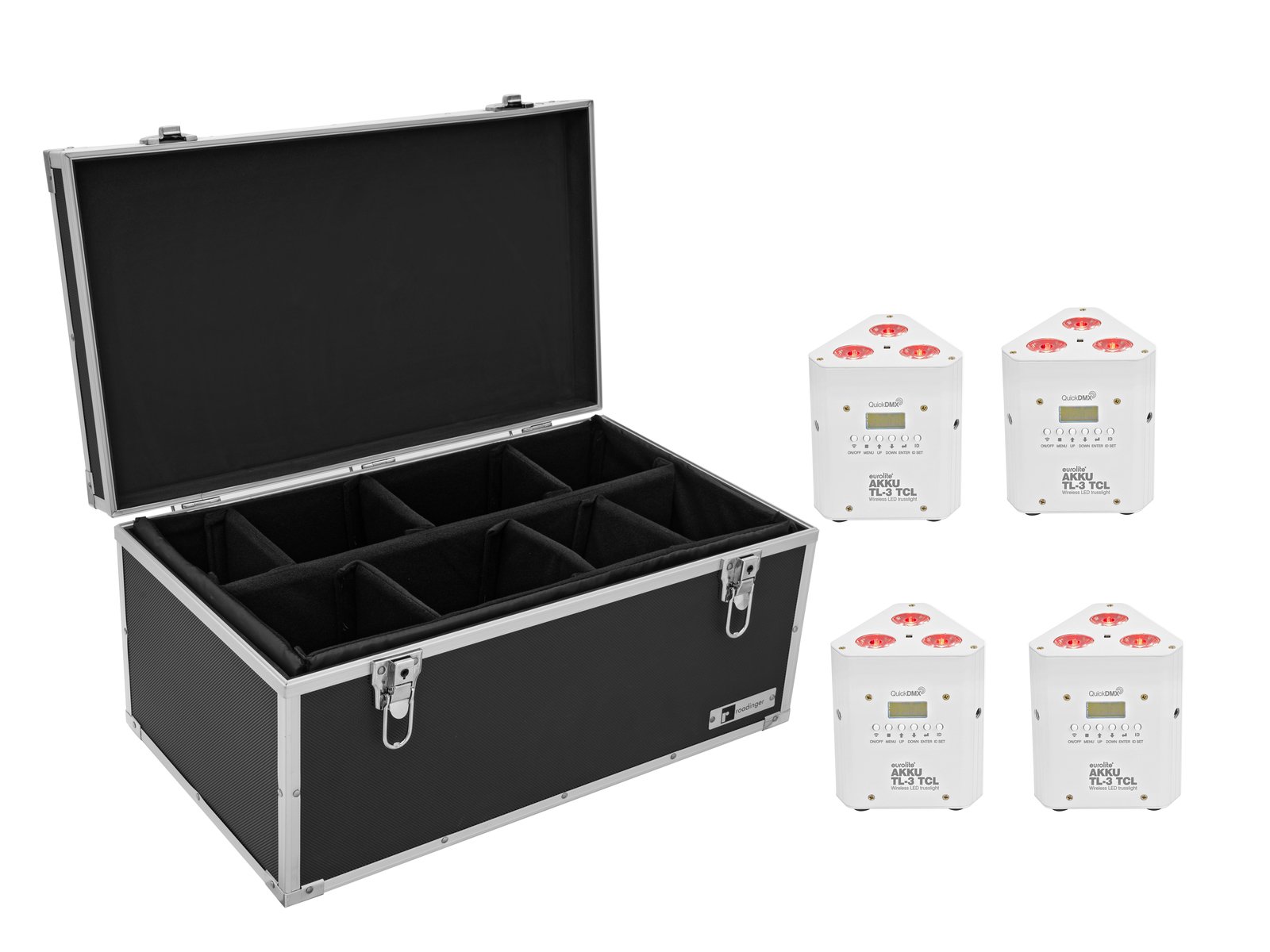

4x white spot for lighting within trussing, 3 x 3 W 3in1 LED including case
EUROLITE AKKU TL-3 TCL Trusslight QuickDMX wh
Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver
- Compact and bright
- Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
- Integrated QuickDMX transceiver for wireless DMX control
- Threaded inserts for suspended installation
- Battery operation up to 16h depending on program used
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
- Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by passive convection cooling
- Control via IR remote control; DMX; QuickDMX; sound to light via microphone; stand-alone
- Flicker-free
- With a beam angle of 11°
- For application areas such as: Small rental; wedding/gala/events; mobile djs / entertainer; stage
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Silent operation
- Cordless, flexible and versatile
- Multicolor LCD display
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x declaration of conformity

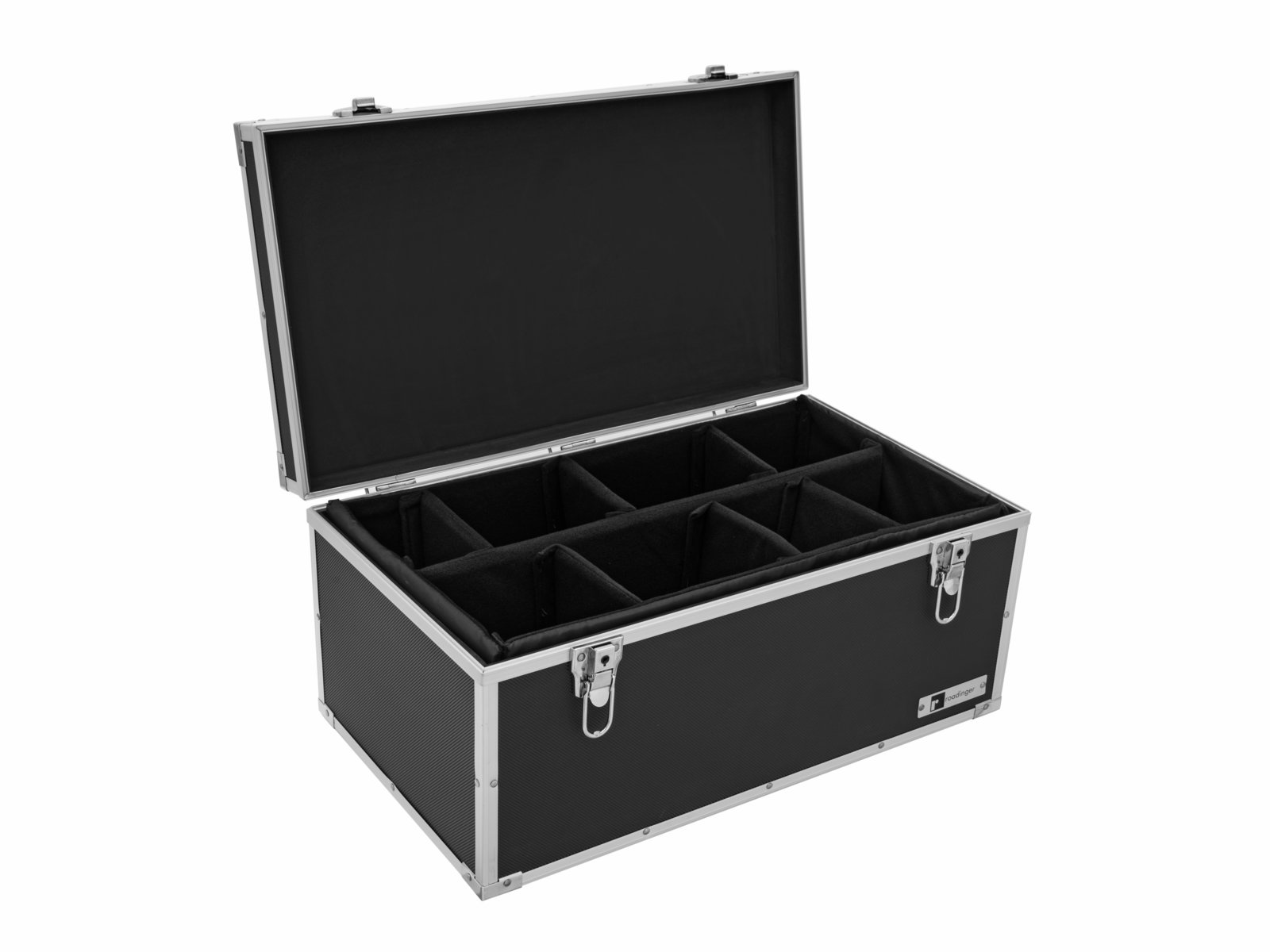

ROADINGER Universal Case Pick TDV-1
Universal case with flexible foam dividers
- With dividers
- High-quality workmanship with plastic 3 mm, black, imprinted
- Interior with foam padding
- Aluminum profile frames 12mm with rounded edges
- Rugged carrying handle
- 3 chrome tip-over locks
- 2 high-quality spring locks with shut-off function
- For further information about this product, please refer to the Data Sheet under “Downloads”
Package contents
- 1 x case
Technical specifications
| Weight: | 8,65 kg |
| EUROLITE AKKU TL-3 TCL Trusslight QuickDMX wh | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP classification: | IP20 |
| Power connection: | Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length: | Approx. 1,2 m |
| Power output: | 1 x IEC connector (F) mounting version |
| Battery pack type: | 1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack: | Battery operation up to 16h depending on program used Recharging time 3h |
| Lamp type: | LED lamp |
| LED type: | 3 x 3 W high-power 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 23 Hz |
| DMX channels: | 3; 5; 8 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | IR remote control; DMX; QuickDMX; sound to light via microphone; stand-alone |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Carrier frequency: | 2,4 GHz |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Beam angle (1/10 peak): | 24° |
| Housing color: | White |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 12,1 cm Depth: 10,8 cm Height: 14,5 cm |
| Weight: | 1,30 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Universal Case Pick TDV-1 | |
| Maximum load: | 25 kg |
| Aluminum profile frames: | 12 mm |
| Carrying handle: | 1 pc/pcs |
| Stop hinge: | 3 pc/pcs |
| Lock: | Spring lock: 2 pc/pcs with shut-off function |
| Material: | Plastic, 3 mm |
| Color: | Black, imprinted |
| Inside dimensions: | 52 cm x 28,5 cm x 20 cm |
| Dimensions: | Width: 54 cm Depth: 31 cm Height: 26 cm |
| Weight: | 3,45 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397670882 | 10,00 kg | 82cm x 41cm x 35cm |
