Description
Features

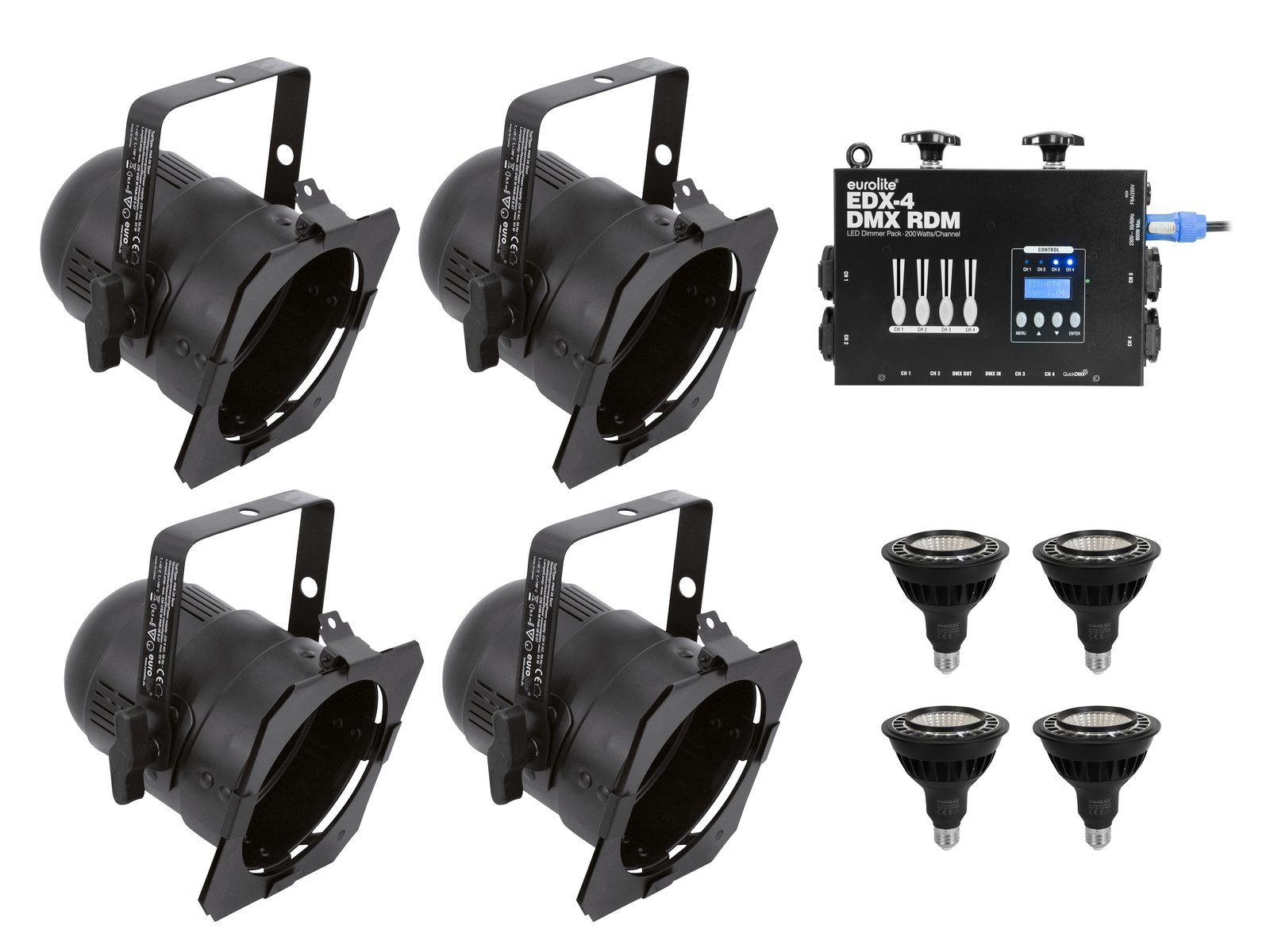

EUROLITE PAR-38 Spot bk
PAR-38 housing with E27 socket (with plug + cable)
- Heat-resistant fixing screw
- Precise light output
- Strong cable tension relief
- Control via plug and play
- With mounting bracket
- For PAR 38
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
OMNILUX PAR-38 230V COB 18W E-27 LED 1800k-3000k dim2warm
PAR-38 LED lamp with modern dim-to-warm feature
- Dimming behavior comparable with incandescent and halogen lamps (dim-to-warm)
- Changes the light color from 3000 K (warm white) to 1800 K (extra warm white) when dimming
- Creates particularly cosy atmospheres
- Easy lamp replacement
- Energy-saving
- Dimmable
- Easy installation
- Variable color temperature 1800 K – 3000 K
- Very high color rendering index (CRI)

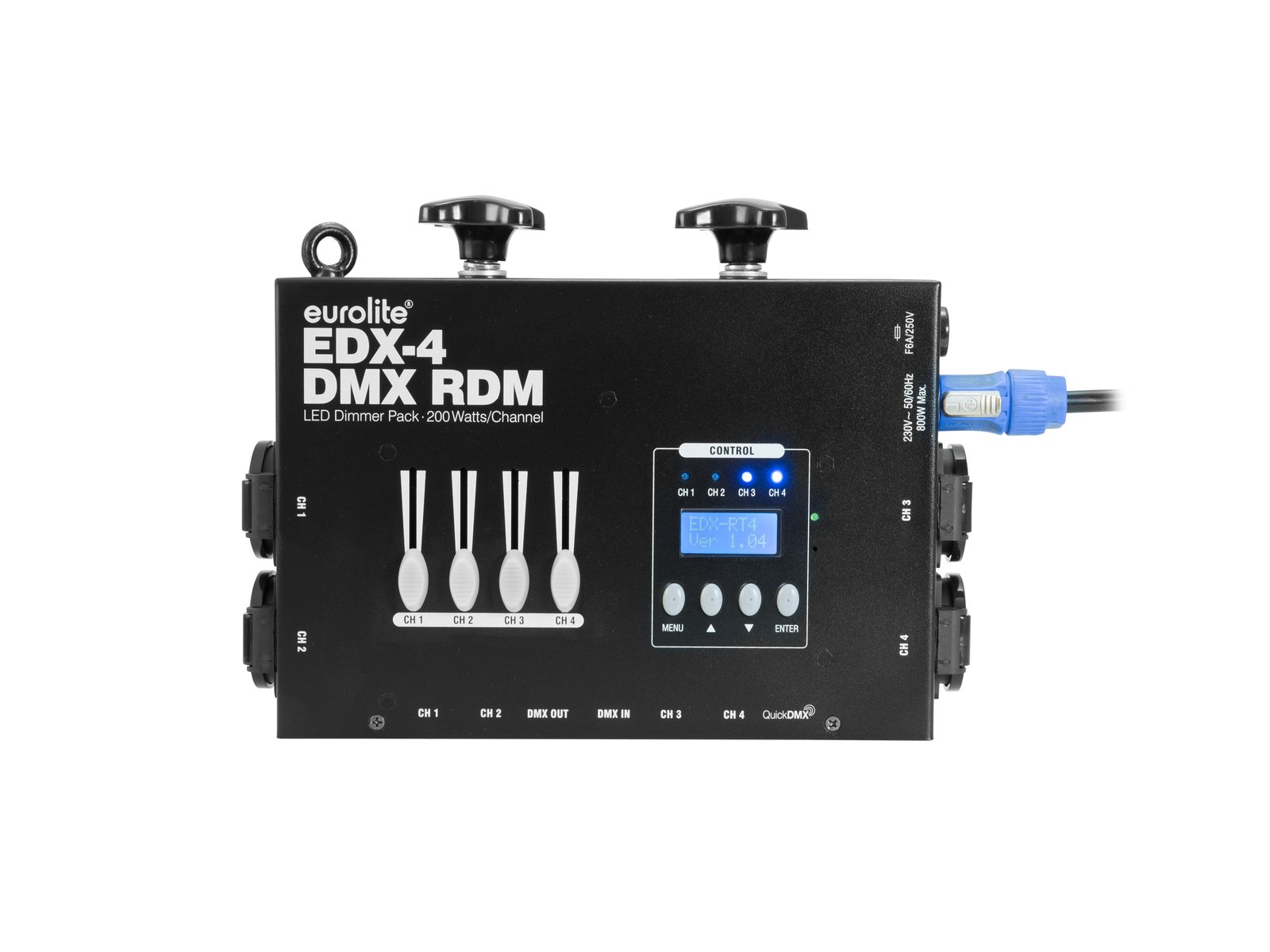

EUROLITE EDX-4 DMX RDM LED Dimmer Pack
4-channel dimmer for LED lights with 230 V operation
- Trailing edge dimmer with 4 channels
- Max. channel load 200 watts
- Independent DMX addressing per channel possible
- Dimmer or switch operation
- 4 channel faders for control on the device
- Note: Only suitable for LED – not for conventional light bulbs
- 16 integrated show programs
- Control via RDM; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With rigging points
- LCD display
- For application areas such as: Trade fair and shop fitting; theater; rental; video and photography; restaurants, bars and hotels
- Silent operation
- Application possibility: Wall mounting
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Technical specifications
| Weight: | 6,86 kg |
| Energy efficiency class (A – G): | F |
| EUROLITE PAR-38 Spot bk | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 85 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0,75 mm² H05SS-F |
| Cable length: | Approx. 0,9 m |
| Base: | E27 |
| Lamp type: | Selectable |
| Color generation: | Via color filter frame |
| Control: | Plug and play |
| Construction: | PAR-38 |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Aluminum; metal |
| Slot for spot length: | 17,2 cm x 17,2 cm |
| Dimensions: | Width: 19 cm Depth: 19 cm Height: 21,5 cm |
| Weight: | 700 g |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø12mm |
| Material: | Metal, 2 mm |
| Filter frame | |
| Diameter mounting holes: | 2 x Ø8mm |
| Material: | Metal |
| Dimensions: | Length: 17 cm Width: 17 cm Diameter: Ø 14 cm |
| Weight: | 120 g |
| OMNILUX PAR-38 230V COB 18W E-27 LED 1800k-3000k dim2warm | |
| Operating voltage: | 230, 220 – 240 V |
| Nominal wattage: | 18 W |
| Base: | E27 |
| Lamp type: | LED lamp; reflector lamp |
| Lamp specification: | Dimmable |
| Beam angle: | 38° |
| Setup: | Easy installation |
| Color of light: | White |
| Color temperature: | 1800K – 3000K adjustable |
| Color rendering index (CRI): | 96 Ra |
| Construction: | PAR-38 |
| Operating temperature max.: | 40° C |
| Operating temperature min.: | 20° C |
| Lamp life: | 15000 h |
| Luminous flux: | 1440 lm |
| Wavelength: | 630 nm |
| Weight: | 380 g |
| Energy efficiency class (A – G): | F |
| EPREL-Nr: | 963434 |
| EUROLITE EDX-4 DMX RDM LED Dimmer Pack | |
| Power supply: | 230 V AC, 50 Hz |
| Output power: | Max. 200 W; max. 800 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 4 x safety contact (F), hinged lid mounting version fused 1 x P-Con (gray), mounting version Bypass |
| Device fuse: | 5 x 20 mm, F 6 A fuse replaceable |
| Power output fuse per channel: | 5 x 20 mm, T 1 A fuse replaceable |
| DMX channels: | 1; 4; 6 |
| DMX input: | 3-pin XLR (M) |
| DMX output: | 3-pin XLR (F) |
| Control: | RDM; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Control channels: | 4 |
| Flying points: | 2 x M10 thread |
| Display type: | LCD display |
| Status LED: | Chanal level meter |
| Color: | Black |
| Dimensions: | Width: 21 cm Depth: 29 cm Height: 9 cm |
| Weight: | 2,53 kg |
| Noise classification: | Class 0 (no noise at all) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397366785 | 9,00 kg | 70cm x 27cm x 52cm |
